PREVOST X3-45 COMMUTER User Manual

MI15-24B / Page 3 / 14
QF7720956 rev3>

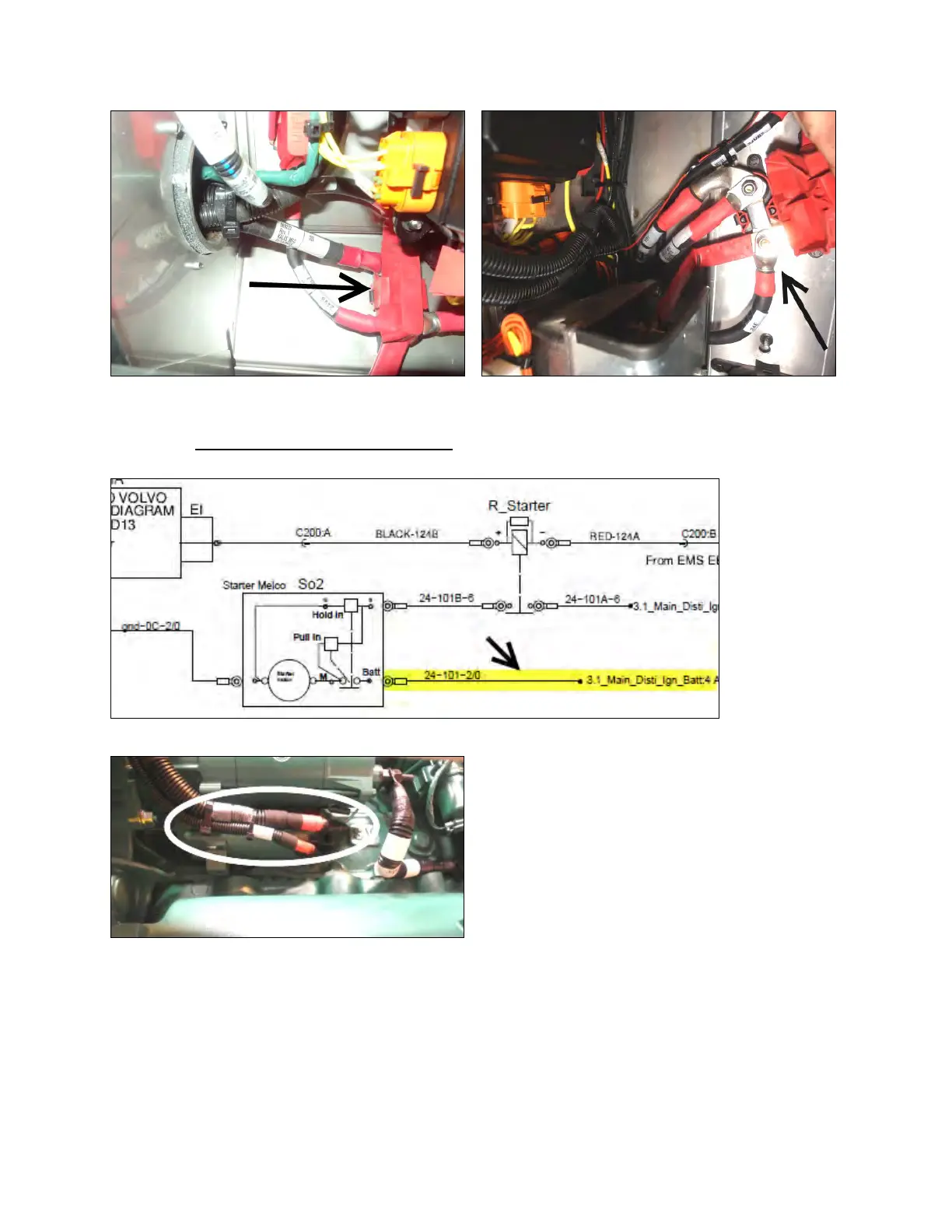

Figure 4: Bussman Junction Block - X3 Series.
Figure 5: Bussman Junction Block - H3 Series.
• On the starter positive (+) stud terminals and from there, up to Bussman junction block in the
electrical compartment (Figure 6, Figure 7).
Figure 6
Figure 7: starter cables

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
