PREVOST X3-45 COMMUTER User Manual

MI15-24B / Page 5 / 14
QF7720956 rev3>

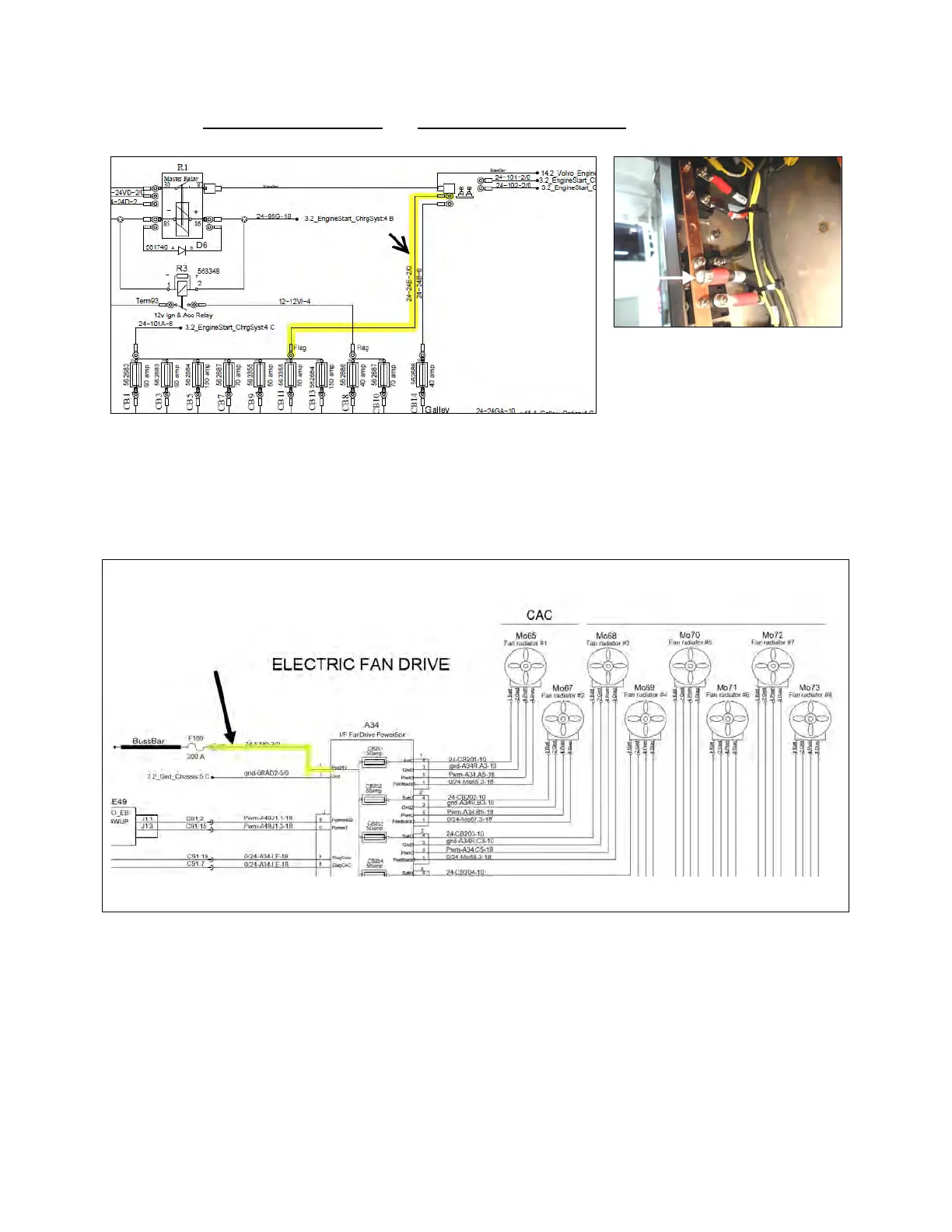

• Between Bussman junction block and main circuit breaker bus bar (Figure 10 & Figure 11).
Figure 10
Figure 11: Power cable on main
circuit breakers' bus bar.
• From the electric fan drive breaker box up to fuse F199 in main power compartment (Figure 12)
Figure 12: ELECTRIC FAN DRIVE BREAKER BOX

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
