PREVOST X3-45 COMMUTER User Manual

Writer: EL <QF7720959 rev 5>
ASSEMBLY INSTRUCTION ORS-TF TUBE FITTING

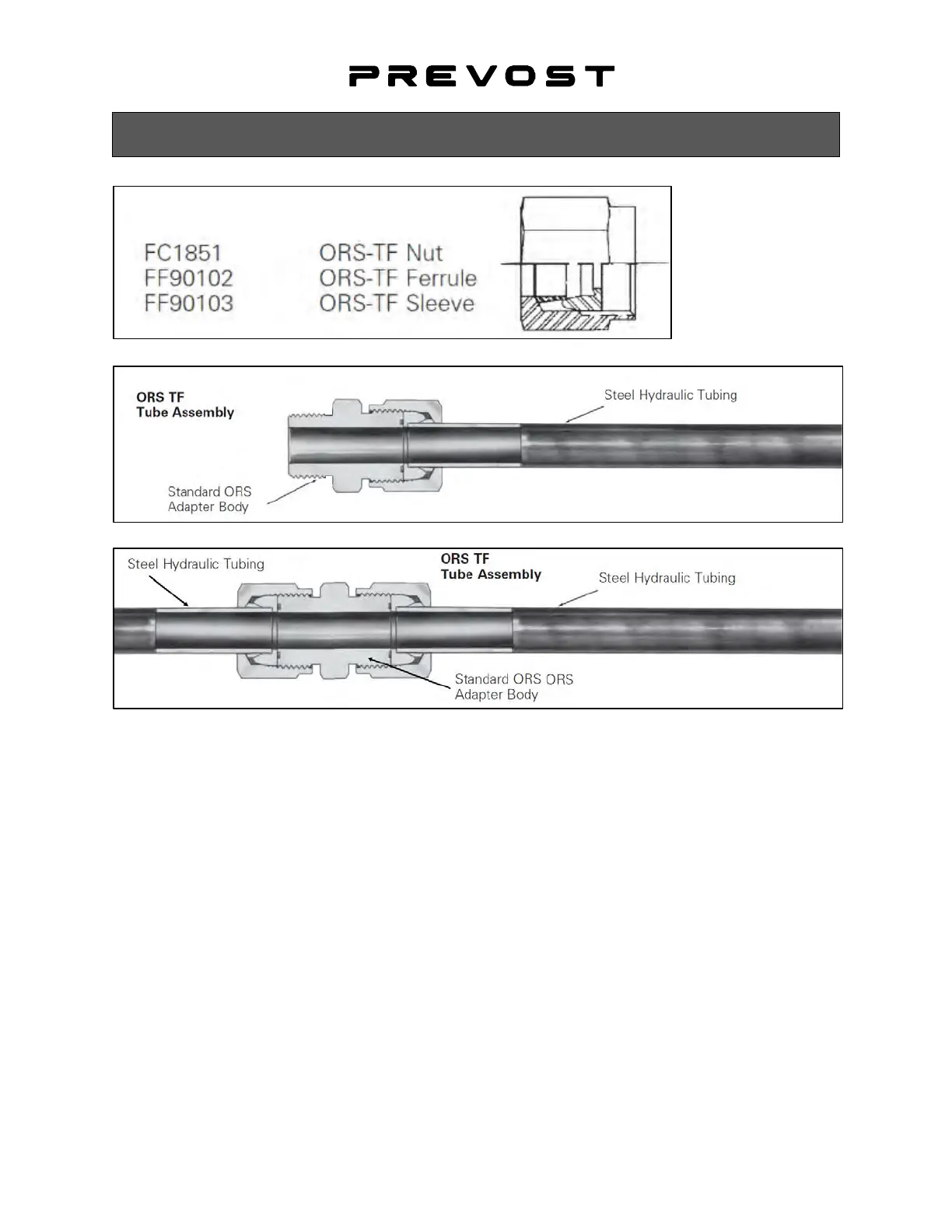

FIGURE 10
FIGURE 11: ABUTMENT REPAIR
FIGURE 12: ALONG THE PIPE REPAIR
1. Inspect the tubing to insure that no scratches, gouges, burrs or other surface defects like
welding bead are present.
2. Cut the tubing squarely (±1°). Use a hacksaw or abrasive cutting wheel.
3. Deburr the tube end with a deburring tool or fine cut file. After deburring, be sure to remove
all contaminants and dirt from the interior and exterior of the tube.
Deburring
All cut tubes should be deburred (Figure 13 & Figure 14). However, deburring is even more im-
portant if the tubing was cut with a hacksaw or abrasive wheel. Remove any burrs, both internally
and externally, with a deburring tool, emery paper or fine file. Clean the tube before assembly.
Clean all dirt and grit from the I.D. and O.D. of the tube.

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
