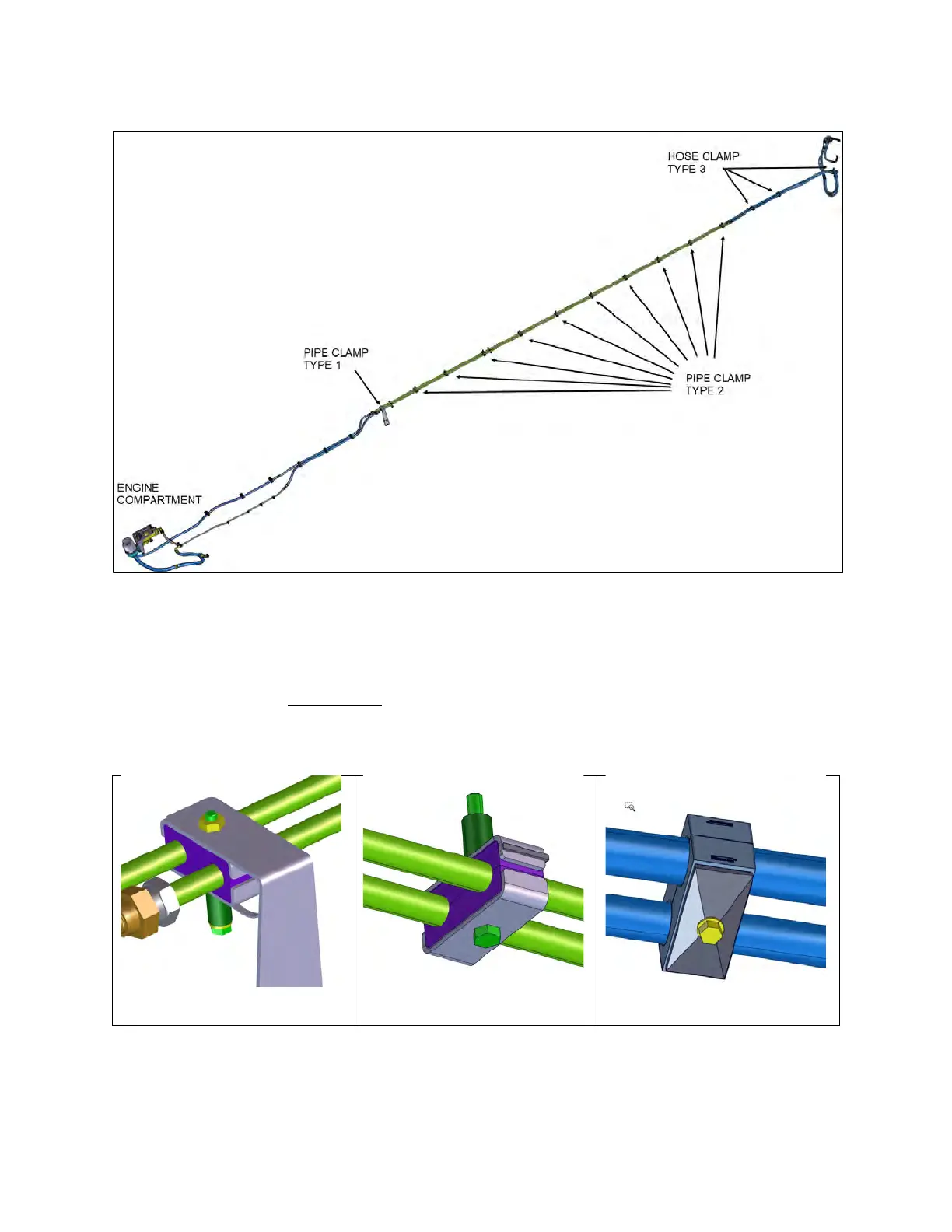

FIGURE 6: PIPE CLAMPS LOCATION & TYPE
9. Using two ORS-TF REPAIR KIT #501157 and one ORS-ORS ADAPTER FF2000T-1010S
#501156, install the repair fittings as described in section ASSEMBLY INSTRUCTION ORS-
TF TUBE FITTING.
10. At the front of the vehicle, pull on the blue power steering hose to take up the slack as the
ORS-ORS adapter adds 43 mm to the total length of the line.
11. Tighten all the pipe & hose clamps previously loosen. See Figure 7 to Figure 9 for appropriate
torque. Add a torque seal mark once properly tighten.
FIGURE 7: PIPE CLAMP TYPE 1
Torque 13 lbf-ft
FIGURE 8: PIPE CLAMP TYPE 2
Torque 13 lbf-ft
FIGURE 9: HOSE CLAMP TYPE 3
Torque 8 lbf-ft
12. Refill the power steering system and bleed the system. Refer to the appendix A at the end of
this document.

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
