SECTION 18: BODY
60
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020

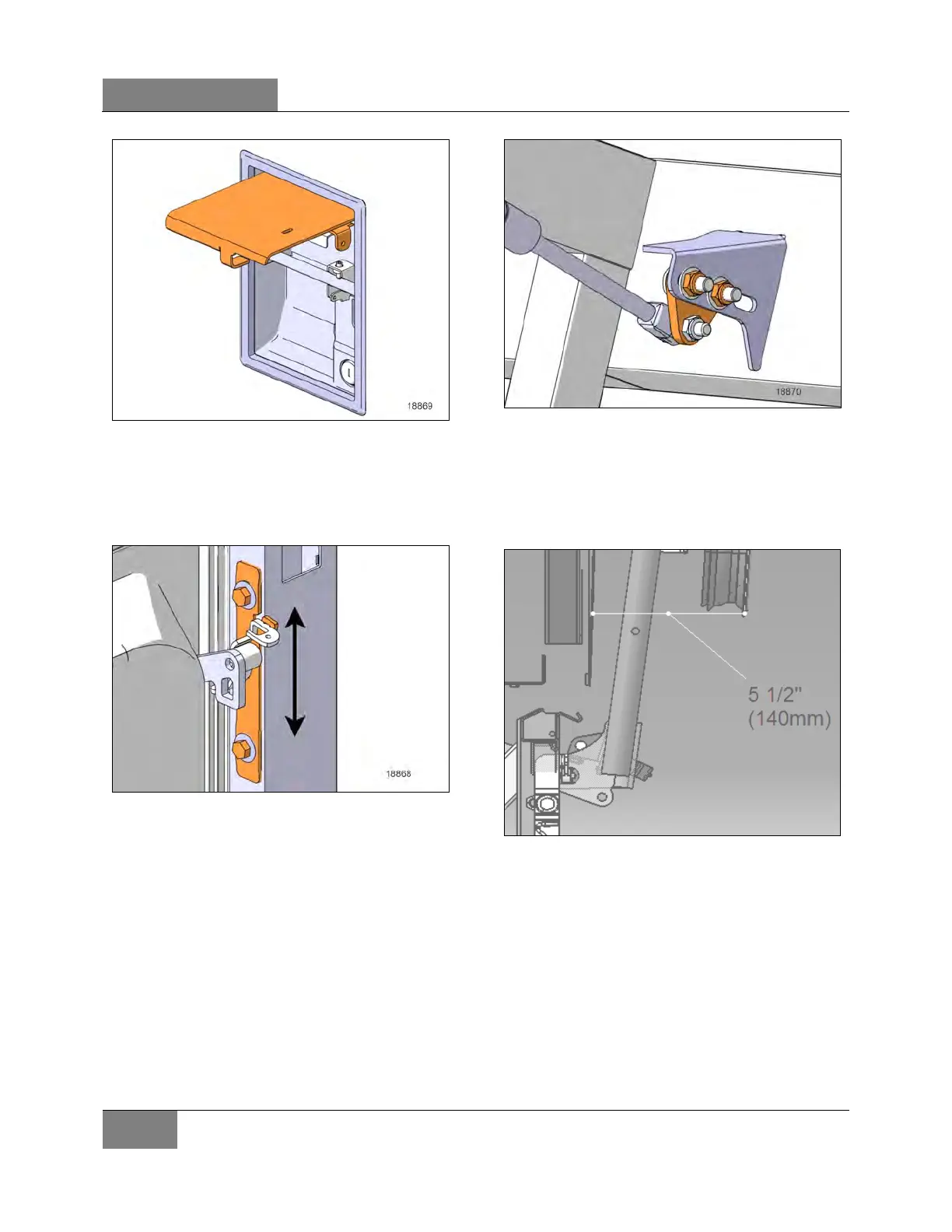

FIGURE 116: HANDLE POSITIONNING
12. Adjust the handle by moving UP and DOWN
the locking plate.
FIGURE 117: HANDLE ADJUSTMENT
13. Open baggage compartment door and
adjust using the cylinder mounting block.
FIGURE 118: CYLINDER MOUNTING BLOCK
14. Door should be adjusted in reference to
neighboring doors.
15. Target is to have 5 ½” (140mm) from bus
body panel to door panel and +/- 2mm
vertically between doors.
FIGURE 119: OPEN DOOR POSITION TARGET
16. Tighten cylinder block fixing screws.
17. Door bottom edge compression can be
adjusted by moving in or out the pantograph
arms at this location.
