SECTION 1 SMOOTH SIDE PANEL REMOVAL
A
Remove vertical and horizontal finishing trim.
Insert a screwdriver into snap-on trim joint.
Bend finishing molding enough
to be able to fix a
pair of locking pliers.
Using the pair of locking pliers, pull the trim and
at the same time gradually cut Sika bead with a
sharp knife.
IMPORTANTE NOTE
Be careful not to damage the adjacent
surfaces in all steps.

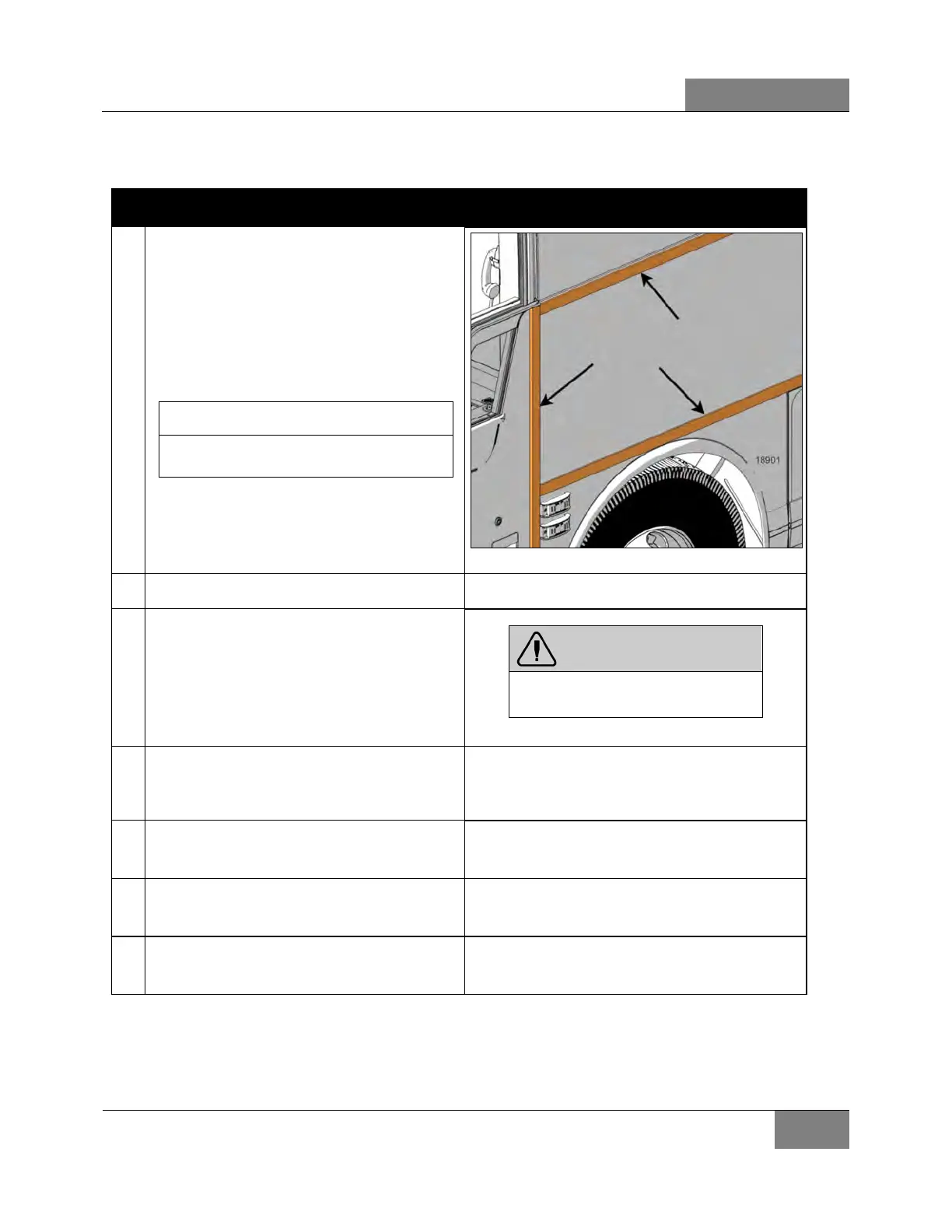

FIGURE 151: TRIMS TO REMOVE
B
Grind tig weld spots at each end of side panel.
C
Safely support or temporary fix side panel.
WARNING
Panel weight is heavy, it may be
over 200 pounds.
D
Insert a flat screwdriver between the side panel
and
the vehicle chassis, in the top left and right
corners. Make sure to separate side panel from
structure.
E
Use the c-
clamp to separate the side panel from
the back structural panel and at the same time
gradually cut Sika bead with a sharp knife.
Ideally
, the hoist or chain block must be fastened to
the floor while pulling from a 45
o
angle so as not to
damage the vehicle structure
F
Remove as much glue as possible from the
structure using a putty knife or pneumatic knife
without damaging 206 G+P primer.
Never heat SikaFlex adhesive to remove.
G
Check panel horizontal supports for straightness
using a straight edge. Take measurements with a
ruler.
Tolerance
: 1mm towards the outside and 1.5mm
towards the inside.
