PREVOST X3-45 COMMUTER User Manual

SECTION 18: BODY
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020
81
SECTION 4

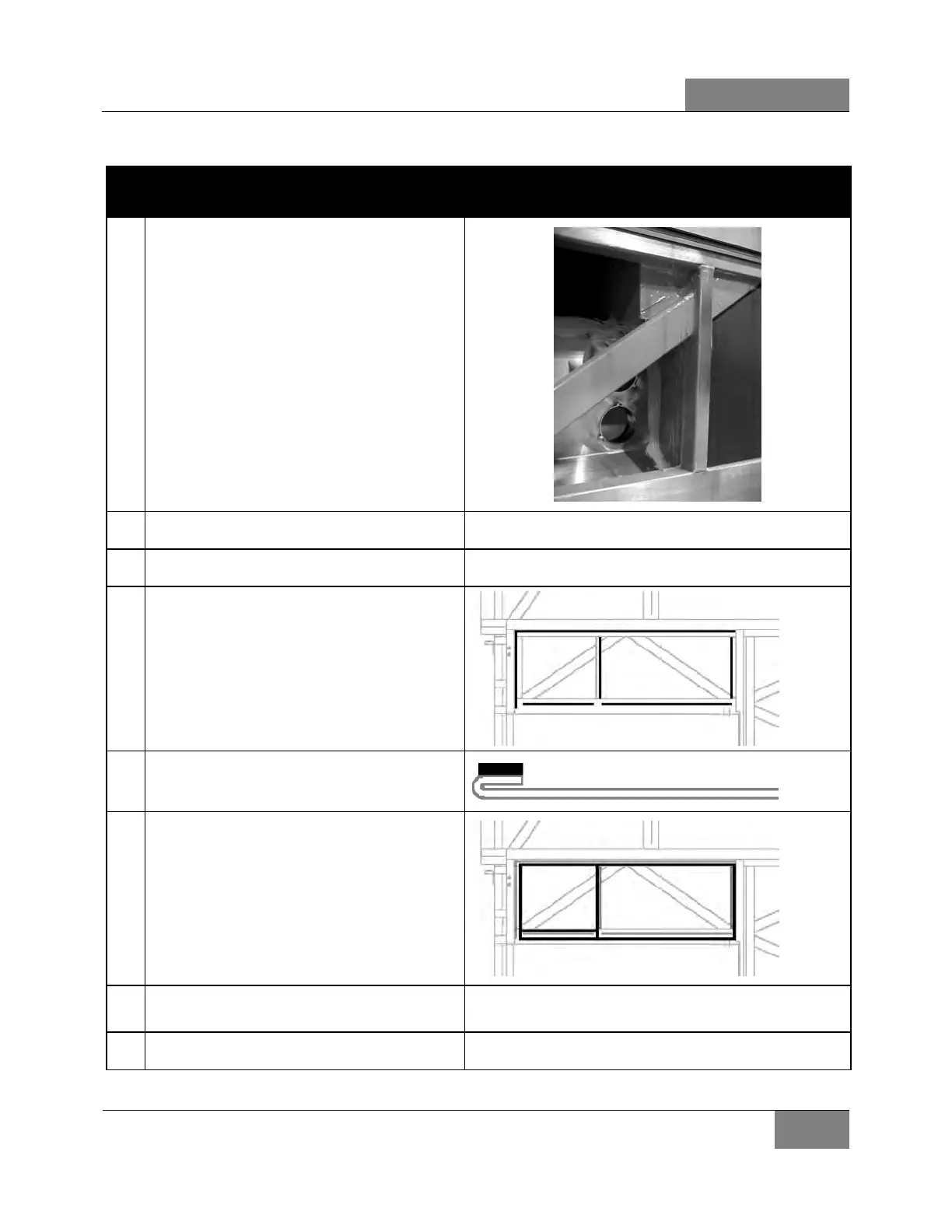

ENGINE AIR INTAKE PANEL INSTALLATION
A
Make sure tha
t sealing of structure has been
performed properly
B
Prepare vehicle surface as for side panel. Refer to step # 2.00
C
Prepare air intake panel as for side panel
Refer to step # 2.05
D
Install foam tape 1/8" X ¼" onto structure, as
shown in picture
E
Install foam tape 1/16" X ¼ onto air intake panel
pleat
F
Apply a bead of 252 onto structure as per picture
Important: Make sure bead is continuous
Triangular bead: 10mm x 8mm
G
Install panel onto structure Use a jig to make sure that panel is
lined up with engine
door tubing.
H
Use a brush to compress Sika bead
