PREVOST X3-45 COMMUTER User Manual

Mi14-01E Page 25 / 38 Rev: Oct 2021
9. Attach the two tow truck safety chains
from each of the two front lower
radius rods (Figure 45) of the bus to
the truck’s tow eyes Figure 46).
10. Connect the two truck air lines to the
service and brake
supply air quick
connect fittings adjacent and right
above the front bumper (for more
details, refer to paragraph
2.1.1 Air
Supply in this document.

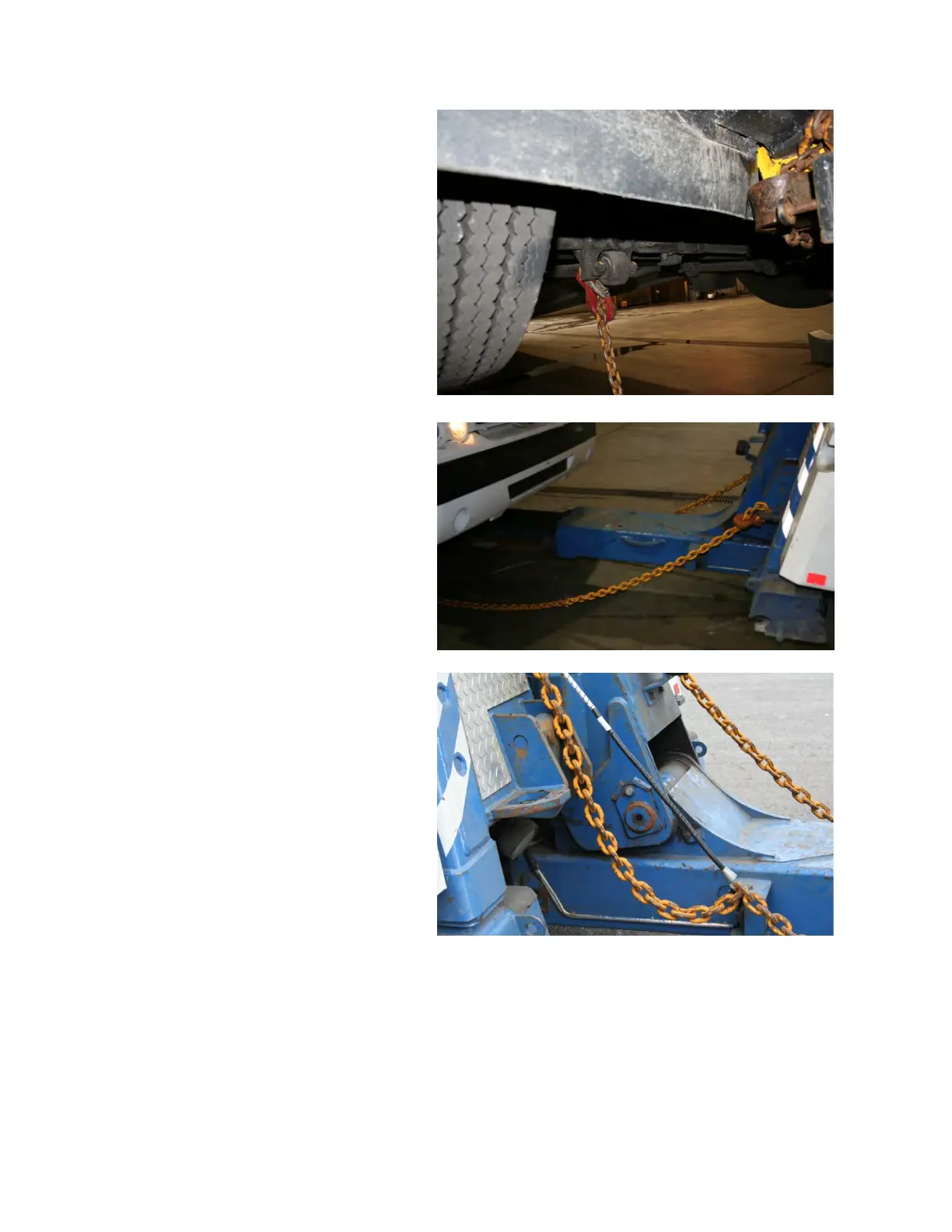

Figure 45
Figure 46
11. Raise the stinger arm and remove the
support jack stand.
12. Lower the bus. The front tires should
be 7″ to 8″ above the ground before
the tow can proceed.
13. Use bungee cords to
support the
safety chains (Figure 47).
Figure 47

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
