SECTION 23: ACCESSORIES
12
DOB 1300-1556| X3-45 Commuter PA-1648 Maintenance Manual Section 23 revised Nov 2021

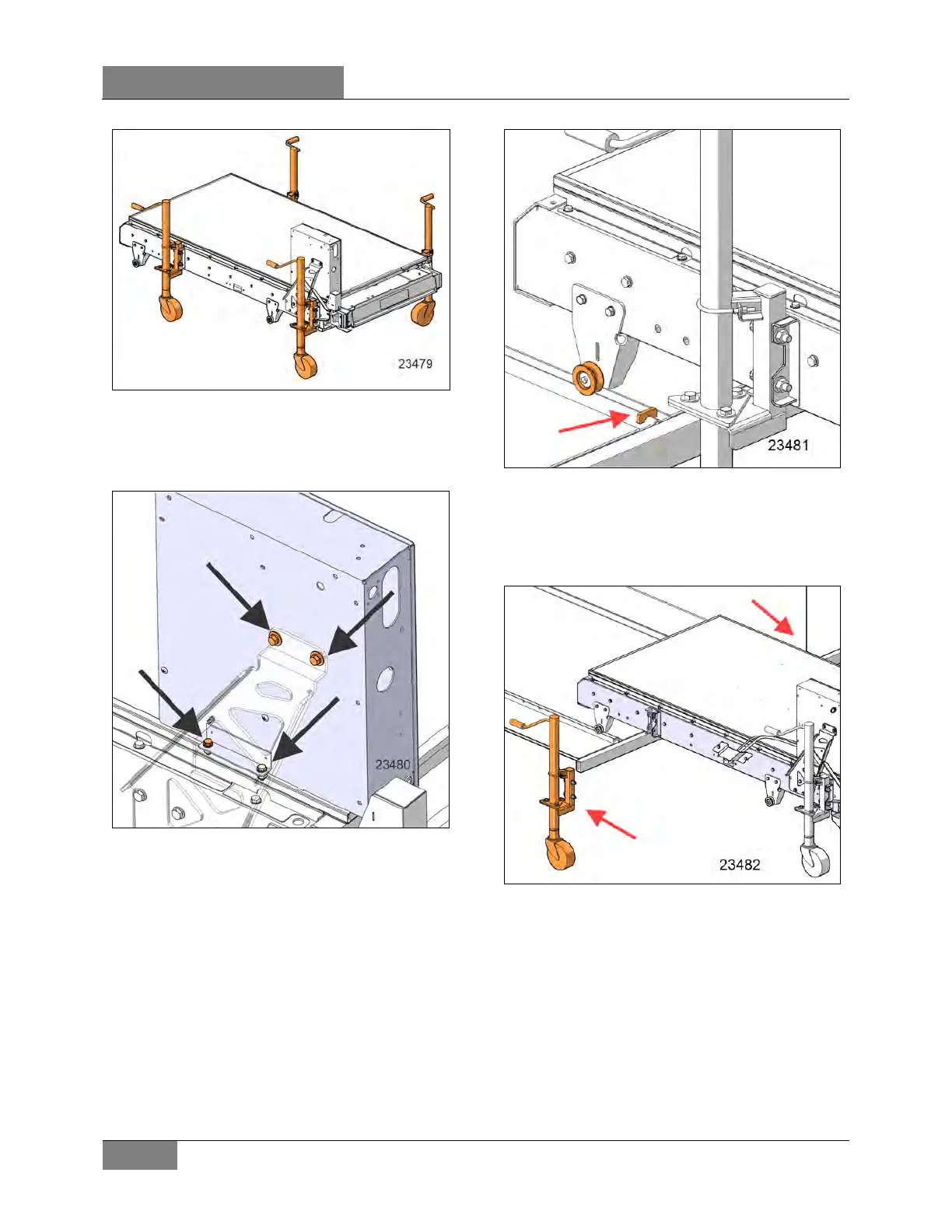

FIGURE 12: JACK INSTALLATION
Dismount partially the control box (4 screws)
and tilt it slightly to allow the cassette to slide
inside the compartment.
FIGURE 13: CONTROL BOX DISMOUNTING
Slide the cassette into the compartment to get
the rear rollers backward the rail front stopper.
FIGURE 14: SLIDE CASSETTE OVER STOPPERS
Drop down the rear side of the cassette until it
gets contact with the rail and make sure the
back rollers are aligned with the V-rail.
Remove jacks (2) on the rear side.
FIGURE 15: JACKS REMOVAL ON REAR SIDE
Install the fasteners on the dismounted jacks.
Slide the cassette inside the compartment to get
the front rollers backward of the stoppers.

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
