A total of 6 parameters can be indicated at one time. Structured hierarchically, trace 1

features top priority and trace 4 is addressed with the lowest weighting. This means

that only the first 6 checked parameters are indicated, starting with the settings of trace

The pulse data is only visible for certain zoom levels of the diagram.

8.4.4.3 Accessing the NRP-Z Power Analysis functionality

Access:

► Select "Clk Syn/Power Sens" > "NRP-Z Power Analysis".

9 58 6

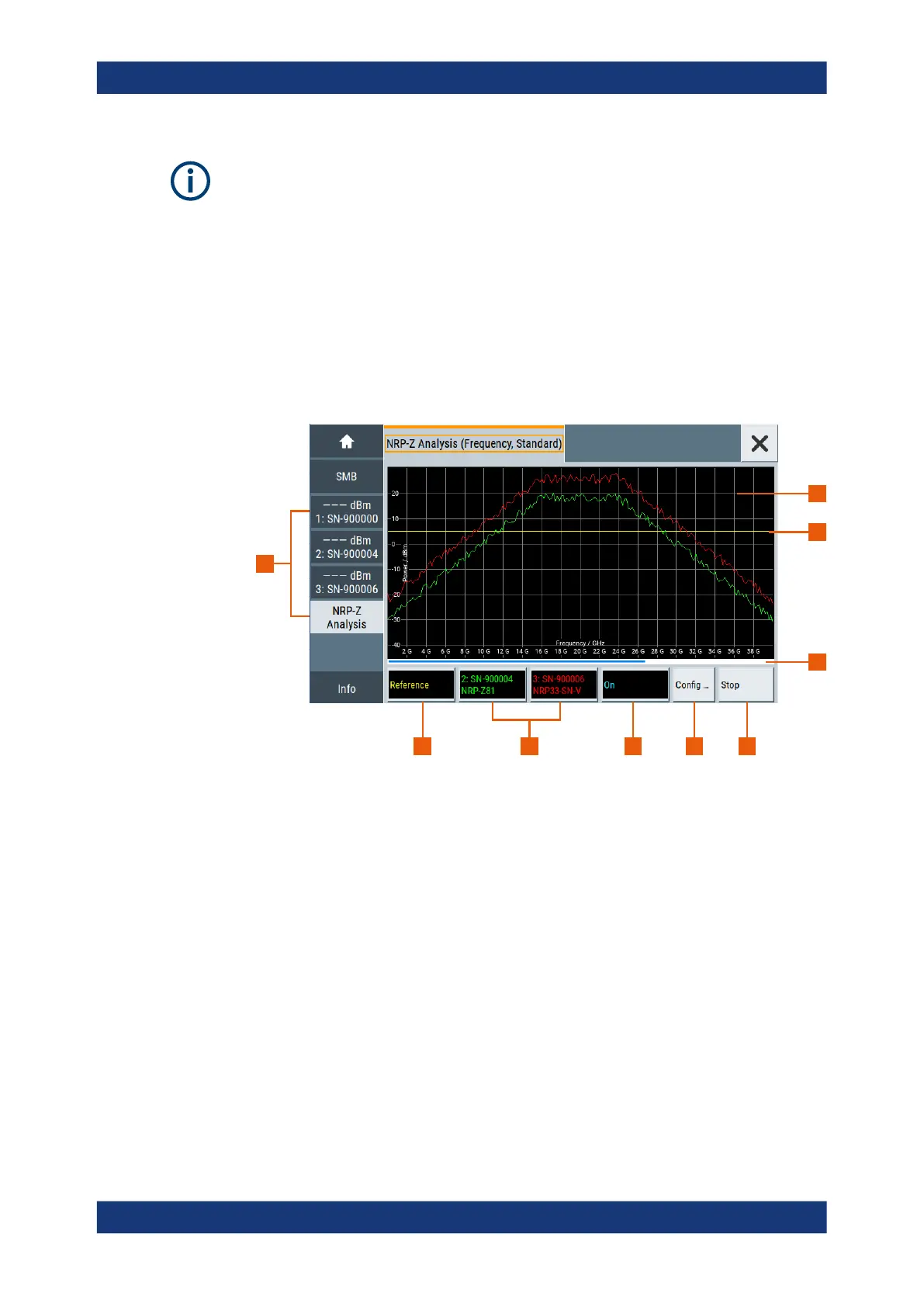

Figure 8-5: Power analysis window

1 = Softkeys for accessing the "NRP-Z" the sensor settings dialogs

2 = Power analysis diagram

3 = Reference curve, indicated when active

4 = Progress bar indicated during measurement

5 = "Start Continuous / Stop" softkey to trigger the measurement

6 = Softkey for accessing the measurement settlings dialogs

7,8,9 = Softkeys for accessing the trace and marker settings dialogs

The start screen of the NRP-Z power analysis contains the measurement diagram

and labelled softkeys indicating connected power sensors. These softkeys and a

configuration softkey lead you to the dialogs for setting up the measurement and

sensor parameters, and for configuring the trace display in the diagram. You can

start or stop your measurement directly. During the measurement, the

R&S SMA100B shows the progress of the measurement in the progress bar at the

bottom of the diagram.

Using power sensors

R&S SMA100B User Manual
