6.5.2 COM/ID settings

Access:

► Select "ADF > COM/ID".

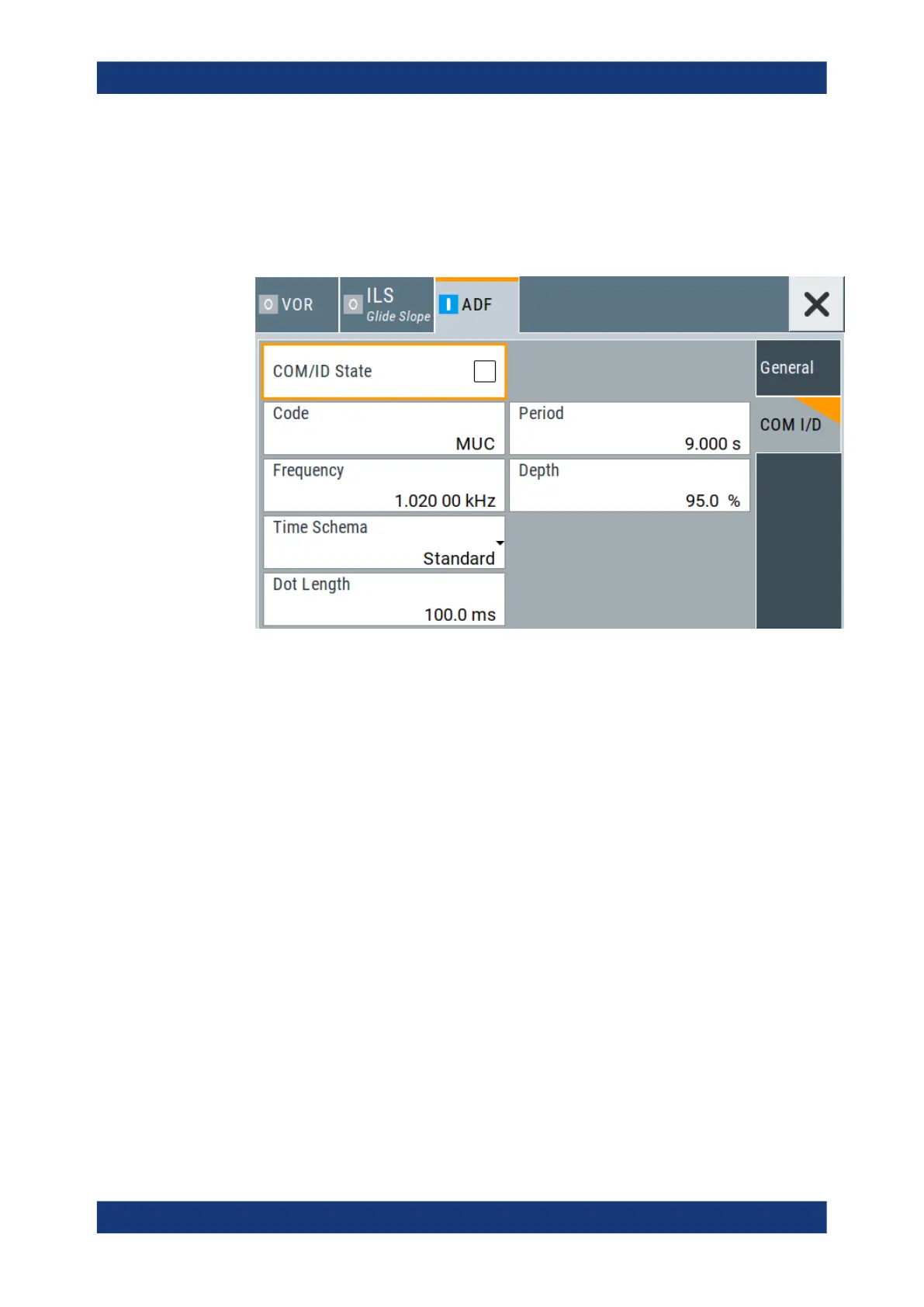

This dialog comprises COM/ID signal settings related to the ADF signal.

Settings

COM/ID State..............................................................................................................168

Code............................................................................................................................168

Period..........................................................................................................................169

Frequency................................................................................................................... 169

Depth...........................................................................................................................169

Time Schema.............................................................................................................. 169

Dot Length...................................................................................................................169

Dash Length................................................................................................................169

Symbol Space.............................................................................................................169

Letter Space................................................................................................................170

COM/ID State

Enables/disables the COM/ID signal.

Remote command:

[:SOURce<hw>]:ADF:COMid[:STATe] on page 603

Code

Sets the coding of the COM/ID signal by the international short name of the airport

(e.g. MUC for the Munich airport).

The COM/ID tone is sent according to the selected code, see Chapter D, "Morse code

settings", on page 784.
