REAR SUSPENSION 3E-3
ON VEHICLE SERVICE
LEAF SPRINGS AND SHOCK ABSORBERS

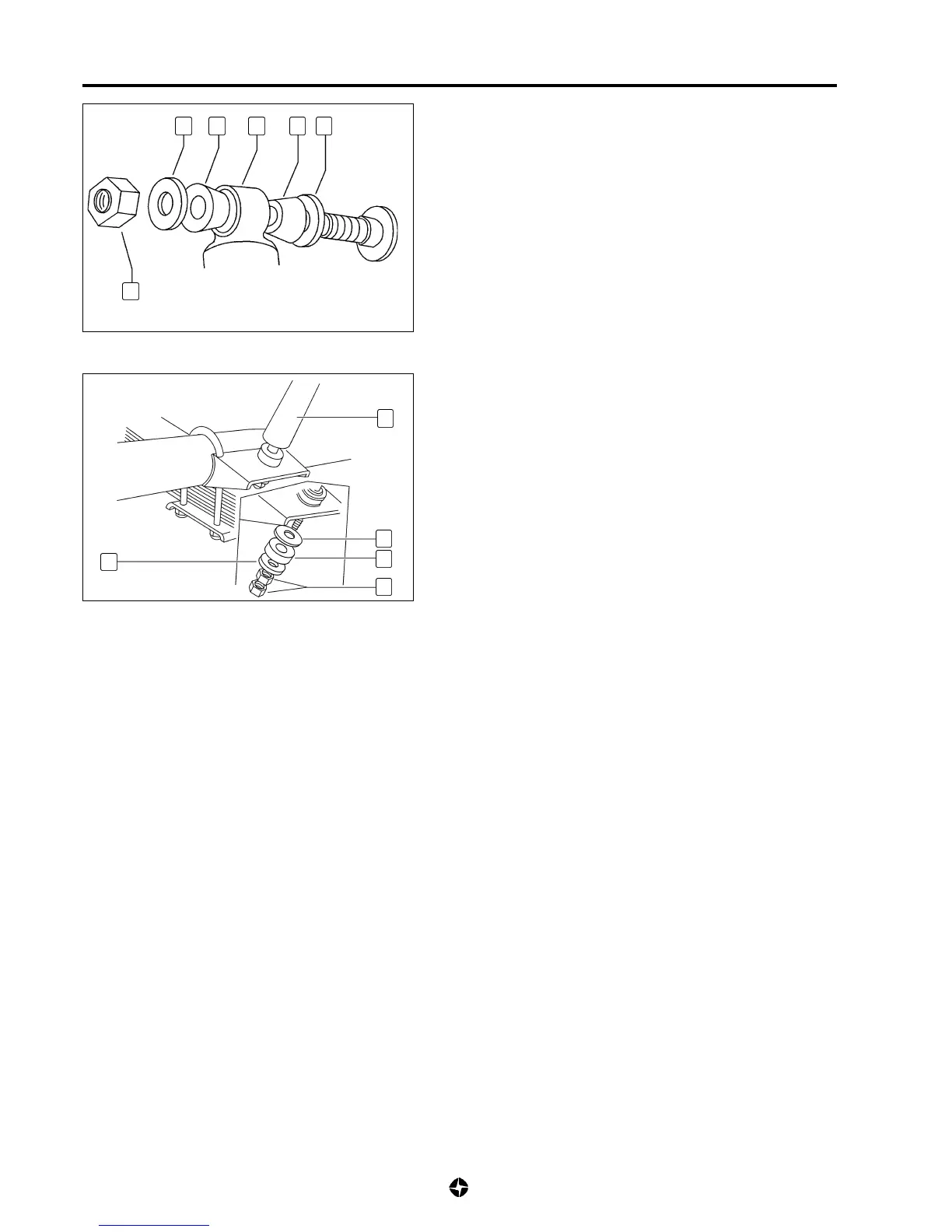

Shock absorbers removal
1) Remove nut (1) and top washers (2) fixing the shock absor-
ber (3) to the upper part.
2) Take away shock absorber (3) and silentblocks (4).
3) Remove nut and counter nut (5) fixing shock absorber (3) to
rear shaft housing, remove washers (6) and rubber (7).
4) Remove shock absorber (3).
Leaf springs removal
5) Remove leaf springs as same front leaf springs (see 3D-3).
Components check
6) Check if the removed components are in good condition and
do not show wear or breakage. If found defective, replace.
Leaf spring installation
7) Reverse removal procedures, noting tighten to specidfied
torque (see 3D-3).
2 4 3
4
2
1
3
6
7
5
6
