STEERING GEAR BOX AND LINKAGE 3B-3
GENERAL DESCRIPTION
Power steering system reduces driver tiredness to rotate the steering wheel, using the hydraulic pressure generated by
the power steering pump.
The mechanical gear unit, the hydraulic pressure cylinder unit and the control valve unit constitute an integral set, and they
are found in the gear box.

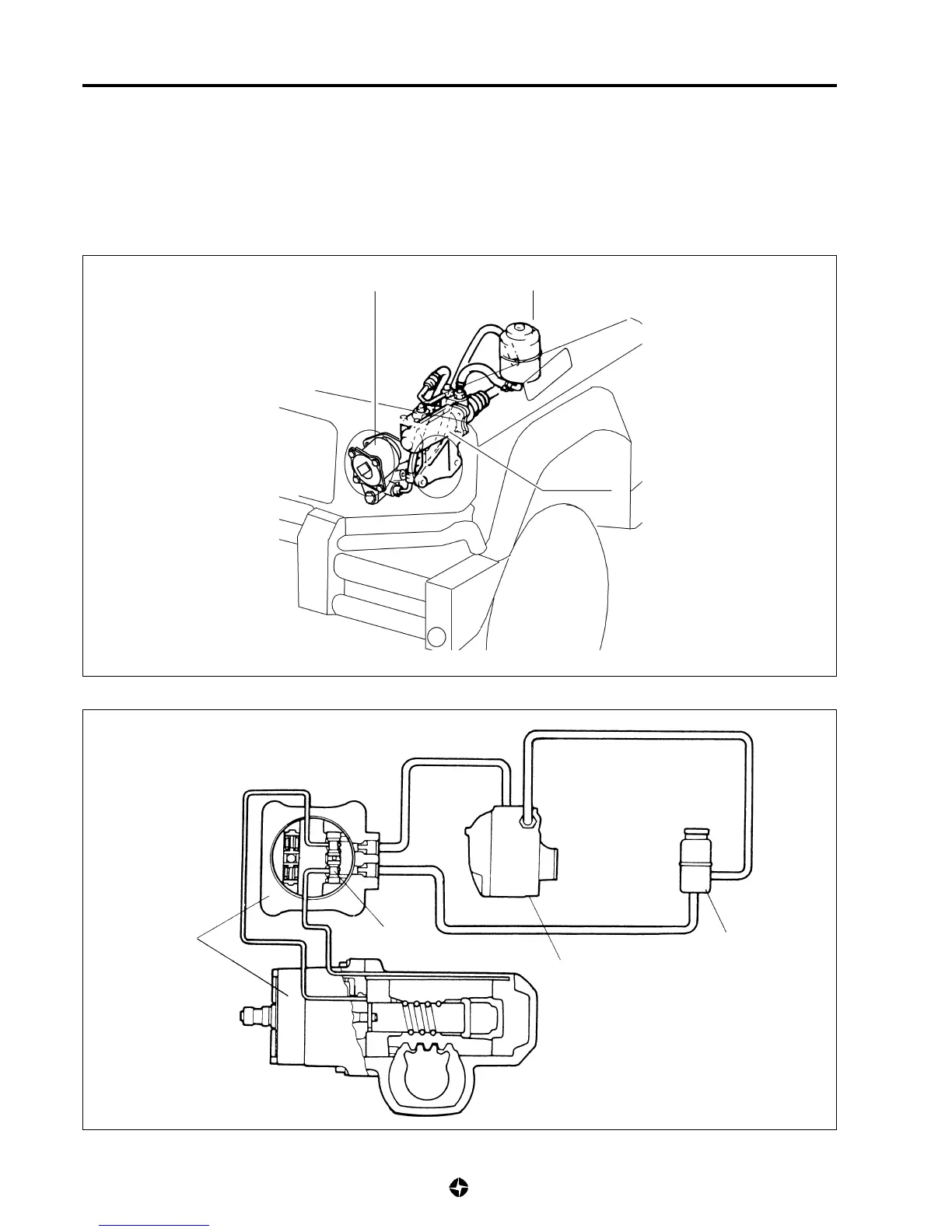

1. Power steering pump
2. Steering gear box
3. Oil tank
1. Power steering gear box
2. Control valve section
3. Power steering pump
4. Oil tank
1
3
2
1
2
3
4
