ENGINE FUEL AND EMISSION CONTROL SYSTEM 6C-29
Main filter
Generalities
The main fuel filter is formed by a bracket (1) and a filter element
(3); between the two is placed the fuel heater (2). It has an
clogged filter sensor (5), a fuel temperature sensor and fuel heater
control (6) and a water-in-fuel sensor (4).
The control unit prepares the amount of fuel to be injected into
the cylinders according to the fuel temperature.
Specifications
Filter grade: 5 micras
Internal working pressure: 0,6 bar
On vehicle service
To carry out interventions on the fuel filter see 6C-8.
1
2
3
4
5
6

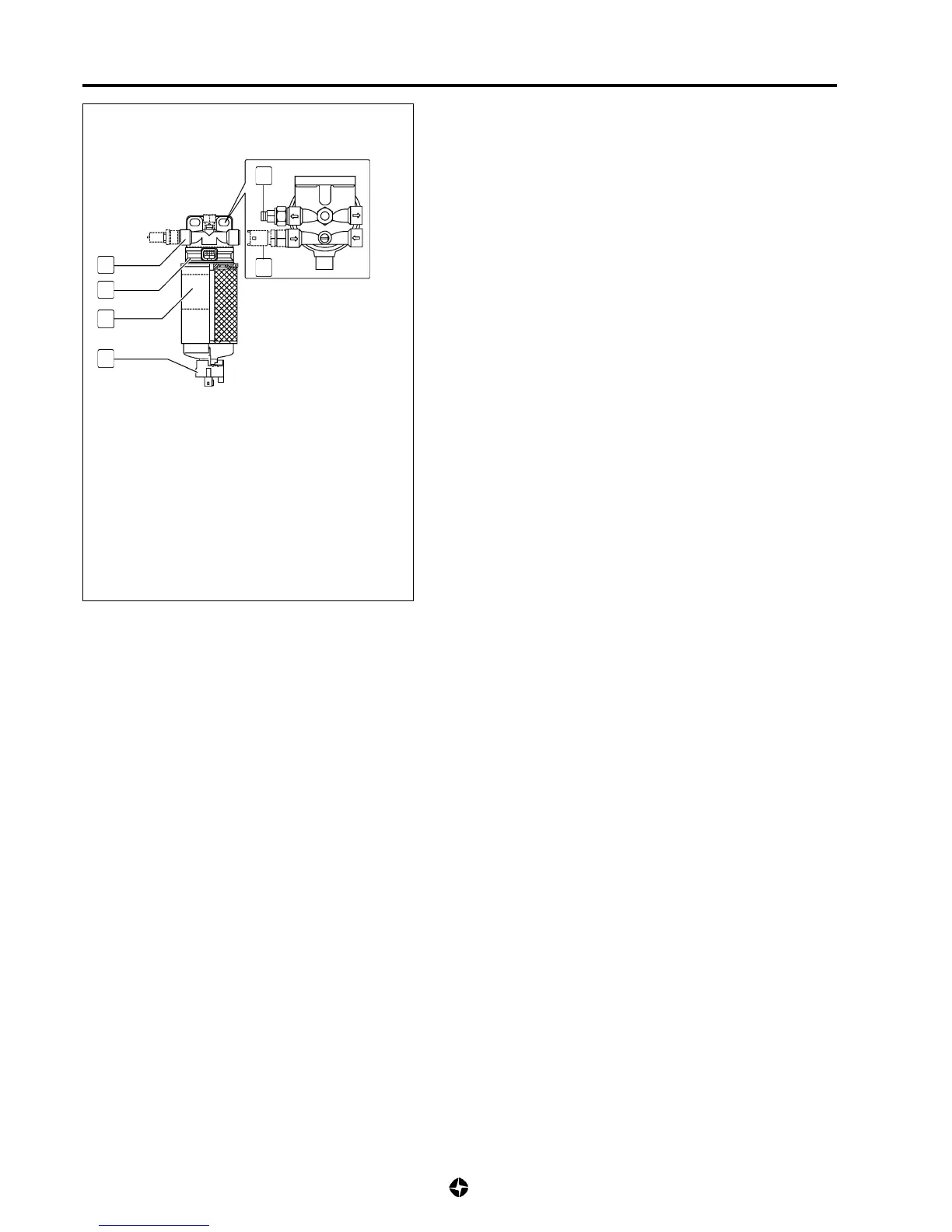

MAIN FILTER
1.- Bracket
2.- Fuel heater
3.- Filter element
4.- Water-in-fuel sensor
5.- Clogged filter sensor
6.- Fuel temperature sensor and fuel heater control
