7C-4 CLUTCH
ON-VEHICLE SERVICE

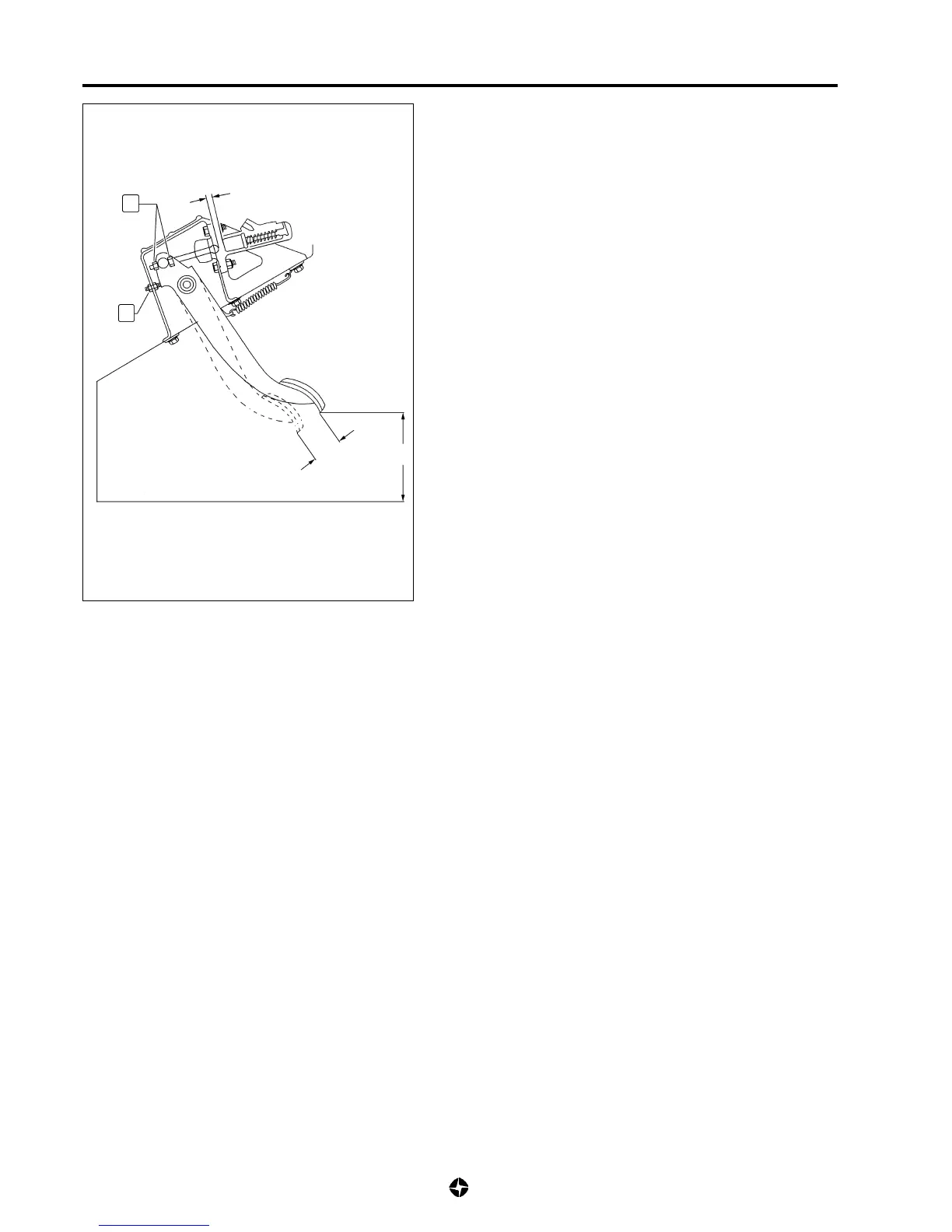

CLUTCH PEDAL HEIGHT AND FREE TRAVEL
1) Adjust height (A) using screw (1).
(A) Pedal height: 140 mm
2) Adjust free travel using nuts (2).
(B) Play between piston and rod: 1,5 mm
(C) Free pedal play: 15 ÷ 20 mm
3) Once the adjustments have been made, note the observations
and torque.
Torque for rod setscrews:
2 ÷ 2,5 Kg-m (20 ÷ 50 Nm)
NOTE:
To clean and dry the parts use fluff free cloths.
2
B
C
A
1
