FRONT DRIVE SHAFT 4A-9

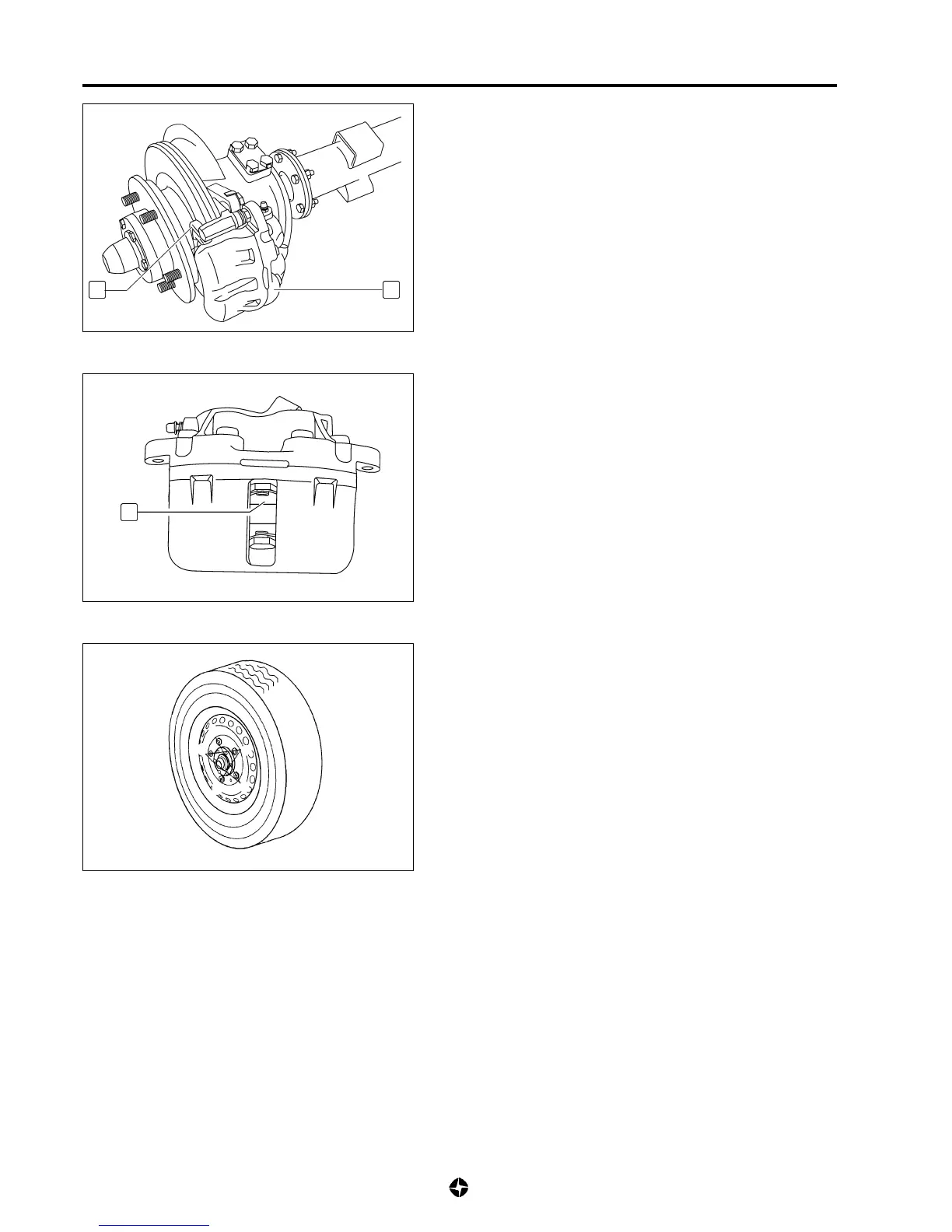

FRICTION PADS SUBSTITUTION
1) Remove wheel from the side you want to substitute the friction
pads and firmly wedge the vehicle.
2) Remove caliper (1) from its connection to support (2).
3) Remove friction pads (3) and replace them by new ones.
4) Install caliper (1), tightening fixing screws to the specified
tightening torque.
Tightening torque for screws fixing clamp:
3.1 ÷ 3.5 Kg-m (31 ÷ 35 Nm)
5) Install wheel and tighten nuts to the specified tightening
torque following the sequence order shown in the figure.
Tightening torque for wheel nuts:
11÷17Kg-m (110÷117Nm)
1
2
3
1
4
2
5
3
