1A-2 HEATER AND VENTILATION
GENERAL DESCRIPTION
The heating for hot water type with in and out air flow, is manufactured to provide always permanent and pleasant ventilation,
through air outlets on the front panel. The hot air outlet is located on the glove compartment side, and air outlets for
windscreen demisting are located in the upper and sides of the glove compartment.

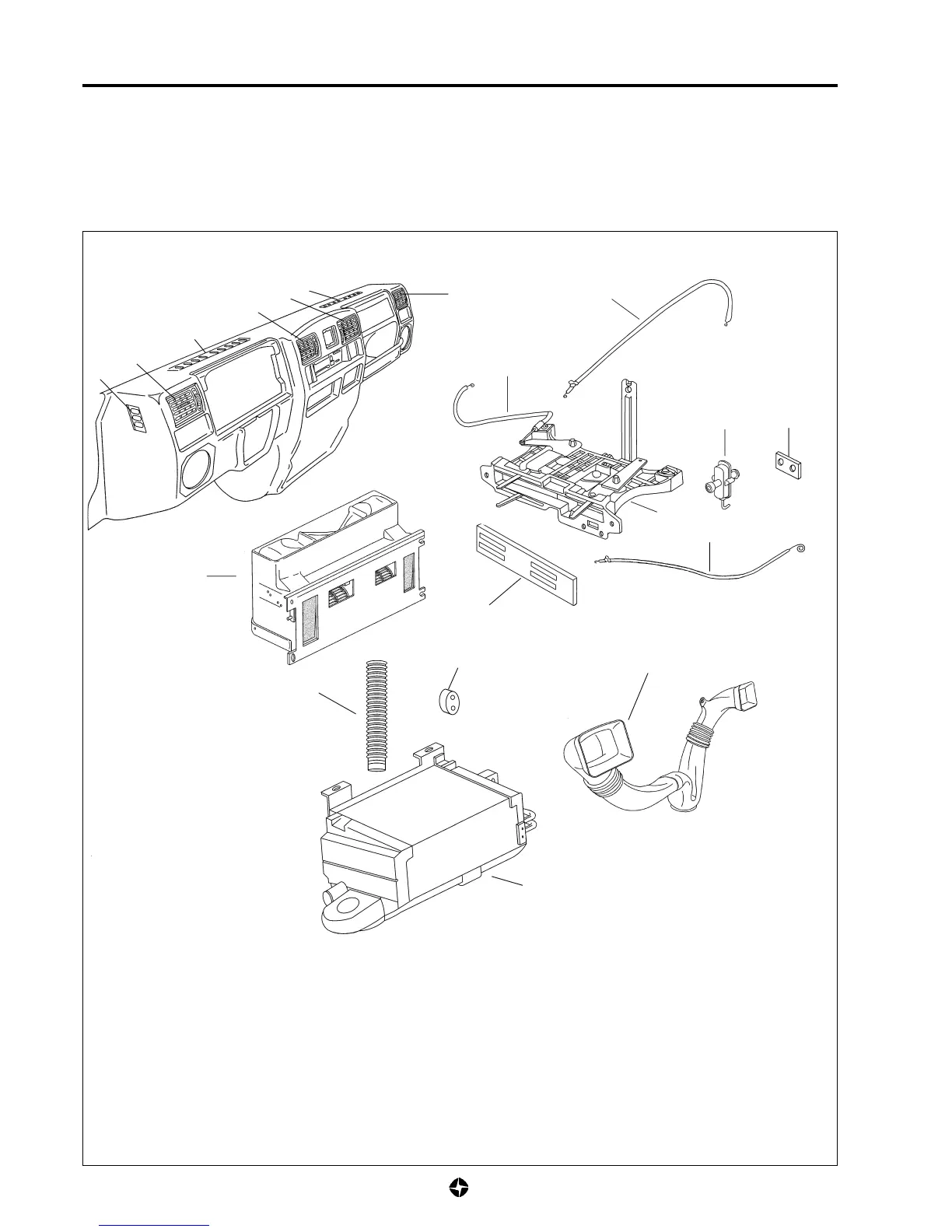

1. Front side air outlet.
2. Front center air outlet.
3. Side demister outlet.
4. Upper demister outlet.
5. Fan assy and protector.
6. Demister duct.
7. Air Flow Ducts.
8. Heater assy.
9. Protector.
10. Heating Control Panel.
11. Heating Control Levers Unit.
12. Heater valve control cable.
13. Ventilator control cable.
14. Heater control cable.
15. Heater valve.
16. Grommet.
3
1
4
2
4
114
13
11
15
16
12
10
9
7
8
6
5
2
