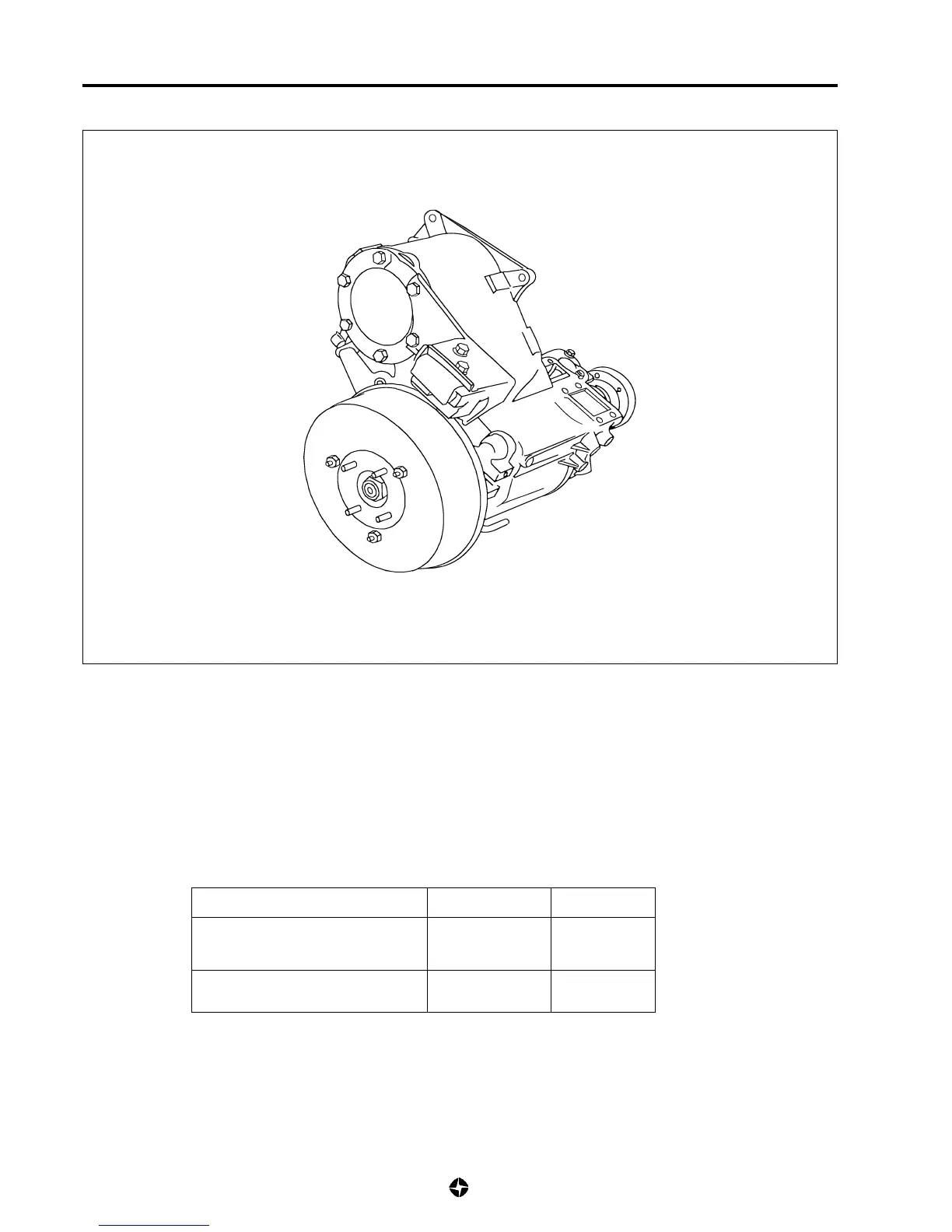

7D-2 TRANSFER BOX
The transfer box provides two speed relations - "high" and "low". The change between these two speeds, although not
synchronised, is by constant contact gears with movable collet which allows selection from both ranges.
The transfer box offers the possibility of using rear axle traction in "high", double traction in "high" and double traction in
"low".
The transfer box is extended along its right side to allow the joining of the speedometer casing, the brake to transmission
and the box for forward axle traction.
The table of ratios which basically equips the transfer box is the following:
SELECTED RATIO «HIGH» «LOW»
*41/26** *41/26**
*40/19** *31/41**
TOTAL REDUCTION 3,319 1,192
NOTE:
- Ratios marked (*) correspond to driven gears.
- Ratios marked (**) correspond to drive gears.
