FRONT AND REAR PROPELLER SHAFTS 4C-7

REAR PROPELLER SHAFT

REMOVAL, REVISION AND INSTALLATION

Removal

1) Do removing of the rear propeller shaft as with the front

propeller shaft (see 4C-3).

Revision

1) Check grooving and flanges (see 4C-3).

2) Remove and repair flanges crossheads (see 4C-4).

3) Change the shaft if there are knockings, bendings, fractu-

res, rustiness, etc.

Installation

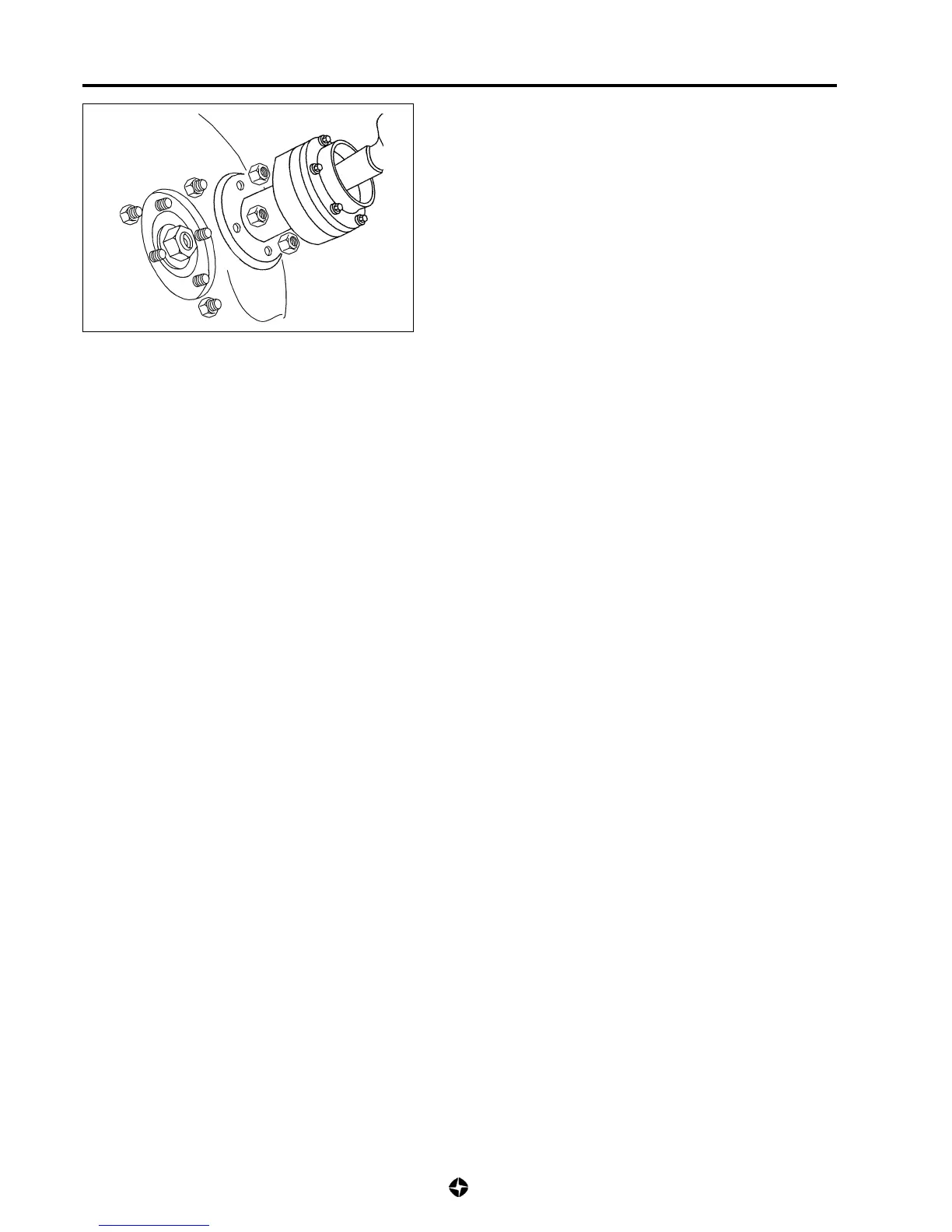

1) Install rear propeller shaft as is done with the front propeller

shaft (see 4C-6).

Tightening torque for nuts fixing propeller shaft:

2.8 ÷ 3.5 Kg m (28 ÷ 35 Nm)

NOTE:

Install new self braking nuts.
