ENGINE FUEL AND EMISSION CONTROL SYSTEM 6C-51
TURBOCHARGER
Checks before intervention
• Once an abnormal functioning of the air intake system has
been confirmed, it is advisable to check the good state and
efficiency of the watertight joints and the hose joints in the
air filter and intercooler before carrying out the checks on
the turbocompressor.
• Also check the state of the air filter - replacing it if it shows
any signs of wear, or if any doubt exists to its correct working
• Check the hoses are not obstructed, deformed, bent double
or worn out.
• If the turbocharger damage has been caused by lack of
lubrication, check that oil conduct pipes are not obstructed,
deformed or flattened. Replace if any doubts exist to their
correct working.

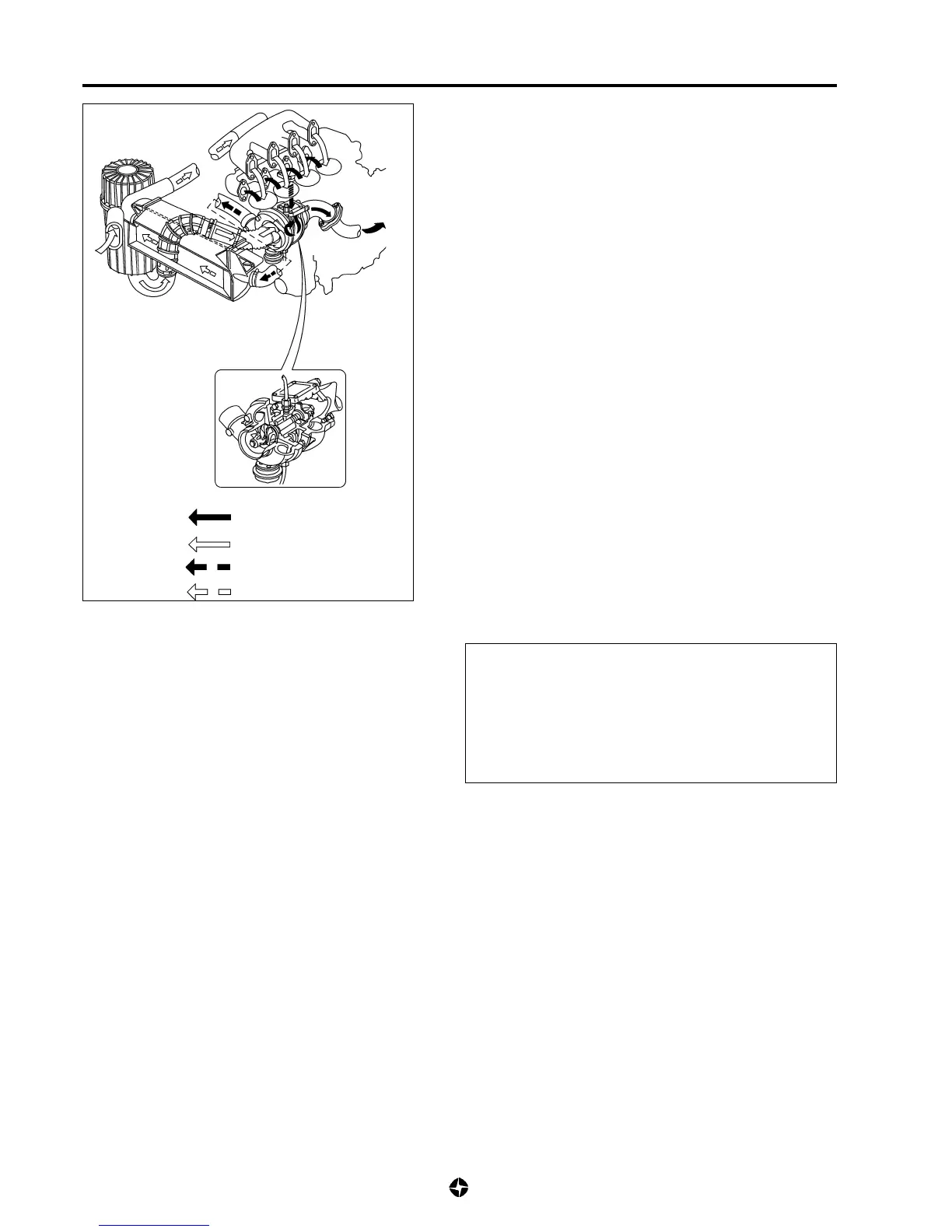

OVERFEED SYSTEM DIAGRAM
Exhaust gases
Aspired admission air
Pressurised admission air; hot
Pressurised admission air; cold
CAUTION:
• Place the vehicle in a suitable work place, free
from dust and air currents which may carry
particles.
• Before carrying out any intervention on the
system, remember PRECAUTION IN CLEANING
AND REPAINIG AIR INTAKE SYSTEM (see 6C-47).
Removal and Installation
For the removal and installation of the turbocharger, (see 6A-62).
