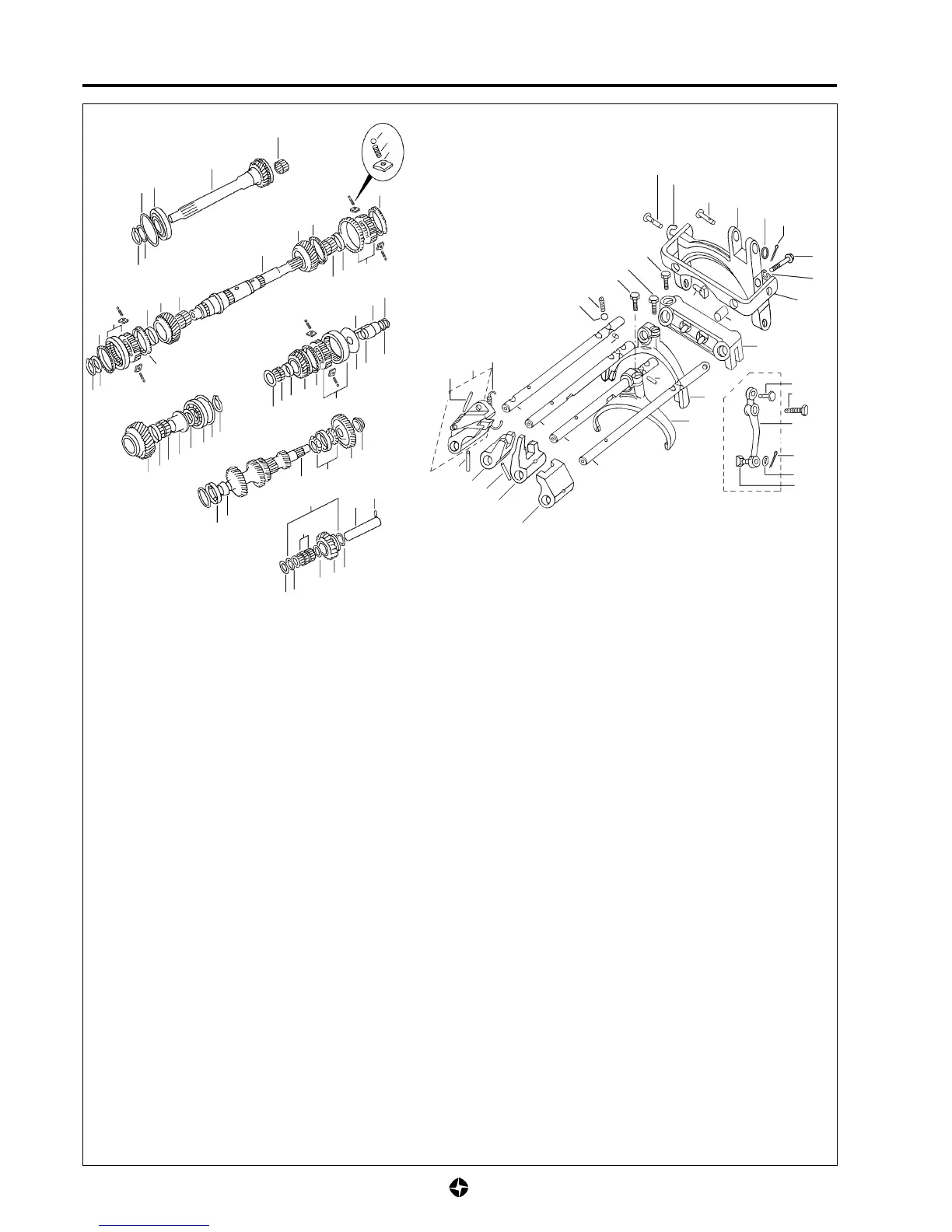

MANUAL TRANSMISSION 7A-3
1. Bearing.
2. Snap ring.
3. Main pinion.
4. Shim.
5. Snap ring.
6. Bearing.
7. Main shaft.
8. Bearing.
9. Main shaft 3
rd
gear.
10. Spacer.
11. Main shaft 2
nd
gear.
12. Bush.
13. Spacer.
14. Main shaft low gear.
15. Thrust washer.
16. Bearing.
17. Spacer.
18. Main shaft 5
th
gear.
19. Stop body pin.
20. 5
th
speed stopper plate.
21. " O " ring.
22. Seal ring.
23. Adjusting washer.
24. Snap ring.
25. Spacer.
26. Bearing.
27. Counter shaft.
28. Bearing.
29. Counter shaft 5
th
gear.
30. Nut.
31. Synchronizer high speed hub assy.
32. Synchronizer hub.
33. Synchronizer ring spring.
34. Synchronizer ball.
35. Synchronizer slide block.
36. Adjusting washer.
37. Synchronizer low speed hub assy.
38. Adjusting washer.
39. Synchronizer 5
th
speed hub assy.
40. Thrust washer.
41. Counter reverse shaft
42. Spring pin.
43. Reverse idle gear assy.
44. Main shaft reverse gear.
45. Bearing.
46. Stopper washer.
47. Snap ring.
48. 5
th
speed fork bracket.
49. Bracket retainer.
50. Bolt.
51. Plain washer.
52. 5
th
speed gear shift fork.
53. Pin.
54. Snap ring.
55. 5
th
speed fork roller.
56. Low speed shaft.
57. Hight speed fork shaft.
58. 5
th
gear shift shaft.
59. Reverse gear shift shaft.
60. Low speed shaft yoke.
61. High speed shaft yoke.
62. 5
th
gear yoke.
63. Reverse hinge assy.
64. Pin.
65. Spring pin.
66. Piston.
67. Pin.
68. Ball.
69. Spring.
70. Low speed gear shift fork.
71. High speed gear shift fork.
72. Reverse member.
73. Bolt.
74. Bolt.
75. Spring.
76. Reverse link lever.
77. Pin.
78. Roller.
79. Plain washer.
80. Pin.
81. Bolt.
82. Pin.
83. Washer.
84. Clip.
1
2
3
6
5
4
34
33
34
32
37
24
22
19
32
11
7
8
9
10
36
5
32
32
31
8
10
23
21
20
39
19
18
17
15
16
5
26
25
27
14
13
8
38
12
1
2
28
29
30
43
41
42
47
44
46
40
45
53
54
82
52
83
84
50
51
48
72
81
77
76
80
79
78
73
74
73
69
68
62
61
65
60
65
75
63
64
66
55
49
67
70
71
58
57
56
59
40
