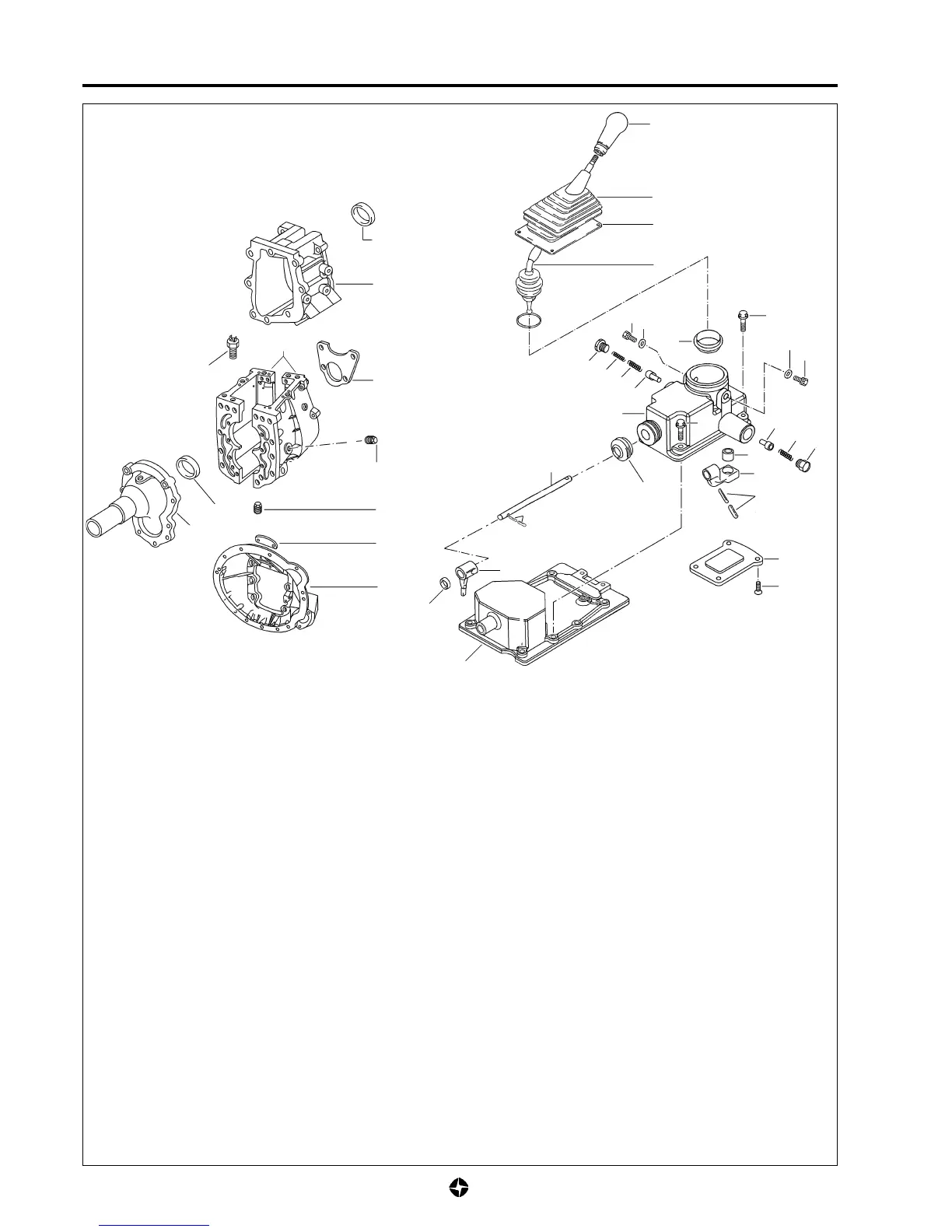

7A-4 MANUAL TRANSMISSION
1. Input shaft bearing retainer.
2. Oil seal.
3. Clutch housing.
4. Inspection cover.
5. Transmission case.
6. Extension case.
7. Oil seal.
8. Oil filler and level plug.
9. Drain plug.
10. Lock plate.
11. Back-up lamp switch assembly.
12. Top cover of gear box.
13. Gear shift case upper plate.
14. Selector head finger.
15. Gear shift arm.
16. Bolt.
17. Oil seal.
18. Gear shift case plate.
19. Screw.
20. Control lever knob.
21. Gear shift lever boot.
22. Flange.
23. Bolt.
24. Washer.
25. Oil seal.
26. Bolt.
27. Outer spring.
28. Pin.
29. Inner spring.
30. Gear control lever bush.
31. Spring pin.
32. Boot.
33. Gear shift control lever assy.
34. Spring pin.
1
2
5
3
4
9
8
11
10
6
7
20
21
22
33
16
24
23
31
15
30
28
27
26
18
19
12
17
32
14
13
26
27
29
28
23
24
25
16
33
34
