3E-4 REAR SUSPENSION
LEAF SPRINGS AND CHASSIS BUMPERS
1) Check and substitute, if necessary, leaf springs bumpers
and body of rear suspension as same as the front suspension
(see 3D-6).
SPRINGS BUMPERS
1) Check and substitute, if necessary, the rear suspension
spring as same as the front suspension (see 3D-6).
2 4 3
4
2
1

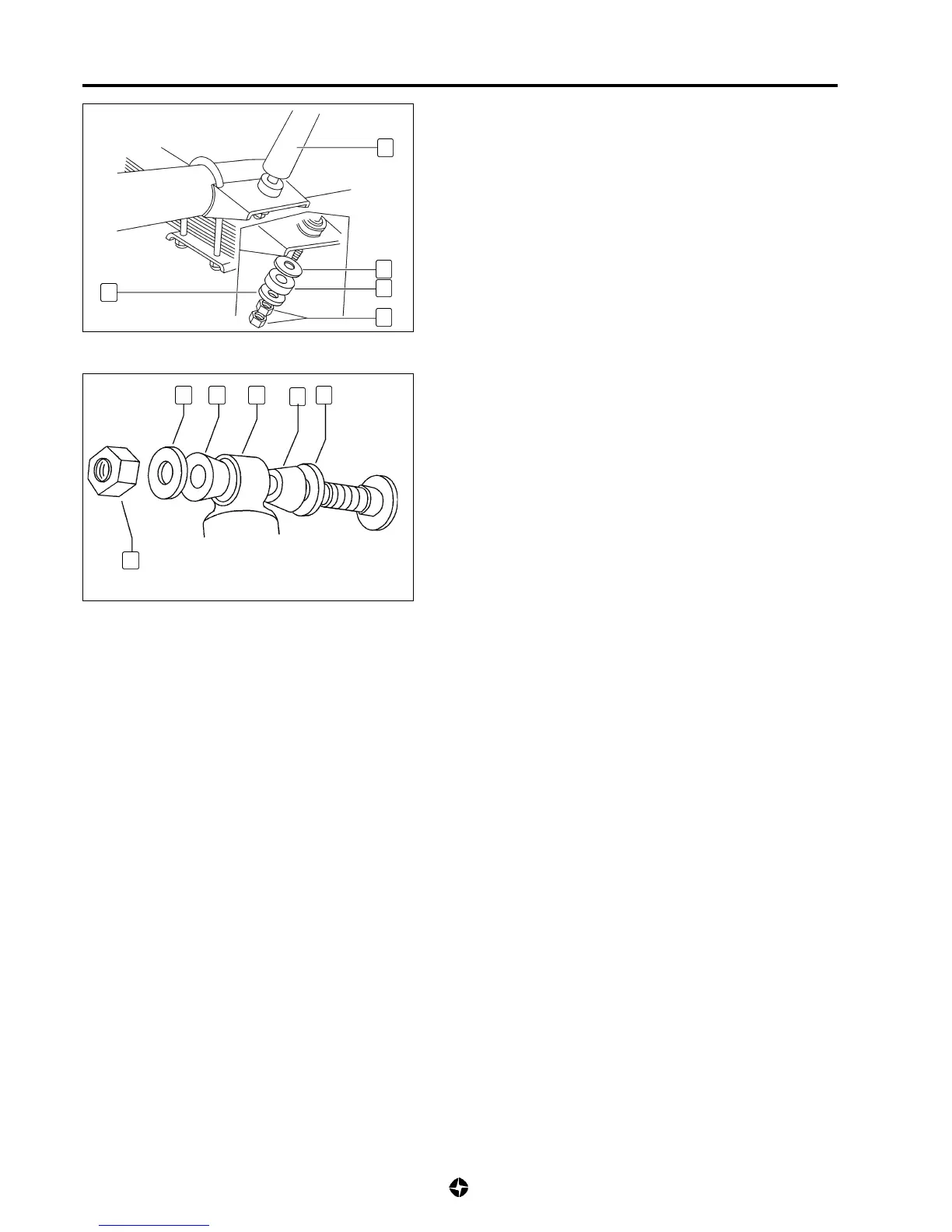

Shock absorber installation
8) Install shock absorber (3) on right position, install in the
lower part the washers (6) and the rubber (7).
9) Install nut and counter nut (5) fixing shock absorber to rear
shaft housing and tighten to specified torque.
Tightening torque for nut fixing the shock absorber:
4 ÷ 6 Kg-m (40 ÷ 60 Nm)
3
6
7
5
6
10) Install bumpers (4) on.
11) Fix shock absorber (3) and washers (2) to the upper part,
tightening nut (1).
