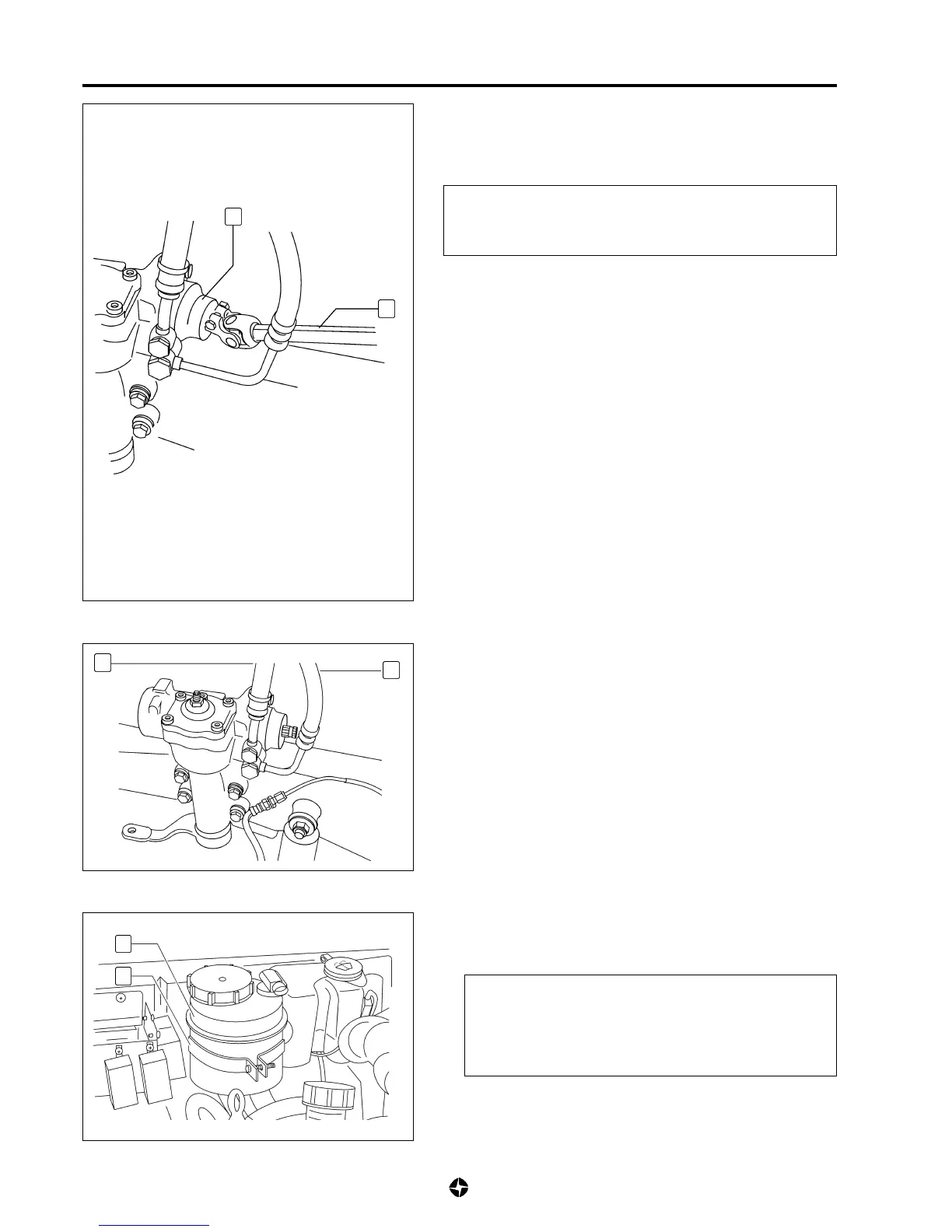

STEERING GEAR BOX AND LINKAGE 3B-7
POWER STEERING GEAR BOX
REMOVAL AND INSTALLATION
CAUTION:
Before starting removal clean carefully the components
to be dismantled and the surroundings.
Removal
1) Place the vehicle in an appropriate working place.
2) Place wheels straightened, which is equivalent to have the
steering at the middle of its left or right handling.
3) Remove left front wheel (see 3F-4).
4) Disconnect steering lower shaft (7) from its connection to
the steering gear box (6).
5) Disconnect from steering gear box the pressure hose (1)
and the return hose (2); beforehand, place under it an
appropriate container to drip the liquid at the hydraulic circuit.
6) Remove power steering liquid tank (3).
7) Take away clamp (4) of the tank.
8) Remove the generator (see 6A-52).
CAUTION:
Protect with appropriate caps the openings which
remain opened and the hoses. Intake of foreign
bodies trough these openings could seriously
damage the servo steering.
2
1
3
4
6
7
