Santana PS-10 User Manual

TRANSFER BOX 7D-9

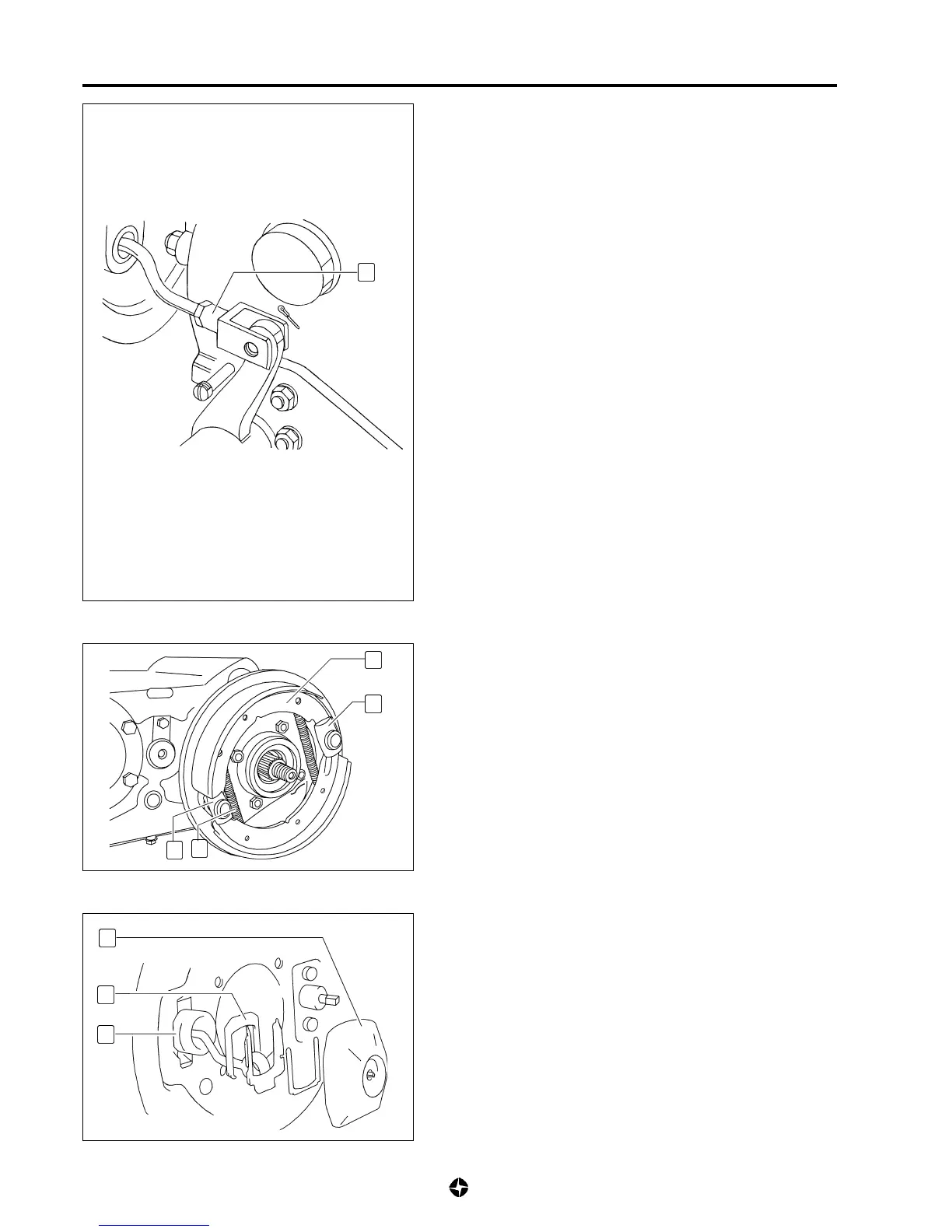

REPAIRING PARKING BRAKE (TO THE
TRANSMISSION INSTALLATION)
Removal
1) Disconnect the rear propeller shaft and brake drum (see
7D-6)
2) Release the parkingbrake and disconnect the drive rod (A)
from the connecting rod.
NOTE:
To repair the components of the handbrake, it is not
necessary to dismount the shoe-holder plates.
1
2
3
4
5) Remove dust guard (5)
6) Take out fixing plates (6)
7) Remove expansion assembly (7)
5
6
7
3) Extend springs (4) to disconnect shoes (1) from their coupling
to the extending mechanism and the regulating mechanism.
NOTE:
To extend the springs and disconnect the shoes, use a
GIRLING lever - set reference number 191661.
4) Remove shoes (1) and springs (4)
A
