BRAKES 5-3

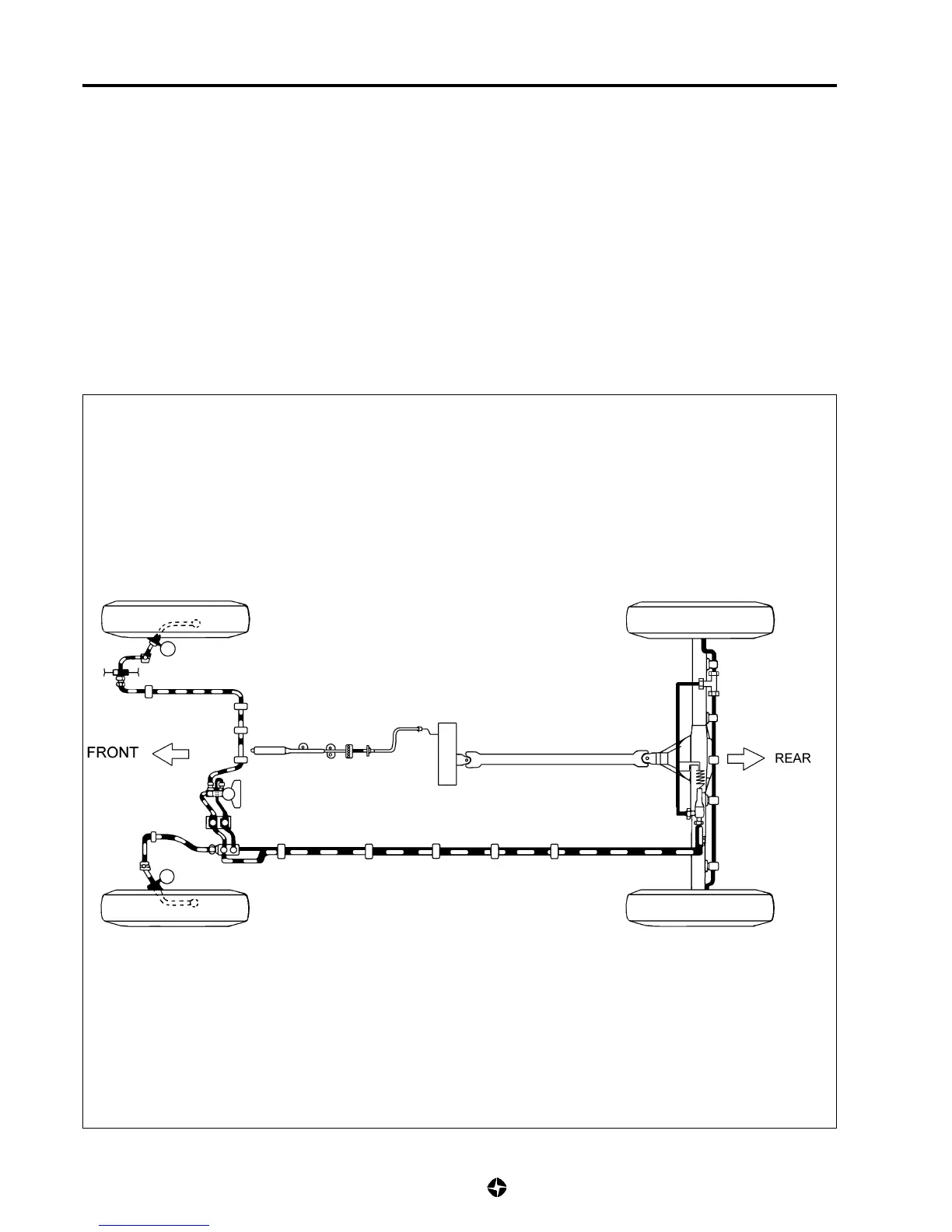

GENERAL DESCRIPTION
Pressing the pedal generates a hydraulic pressure in the master cylinder which pushes pistons.
The master cylinder is a unit of a tandem. There are three pipes connected to the master cylinder, which constitute two
independent circuits. One connects front brakes (right and left) and the other one connect rear brakes (right and left).
There is a load sensing pressure valve (LSPV), placed between the master cylinder and back brakes.
In this braking system, brake disc are used at front and rear.
The parking brake system is mechanical. It applies the braking force to the rear properller shaft through a drum type brake
found in the outlet of transfer box, activated by a cable and rods system.
Right side
Left side
