BODY SERVICE 9-5

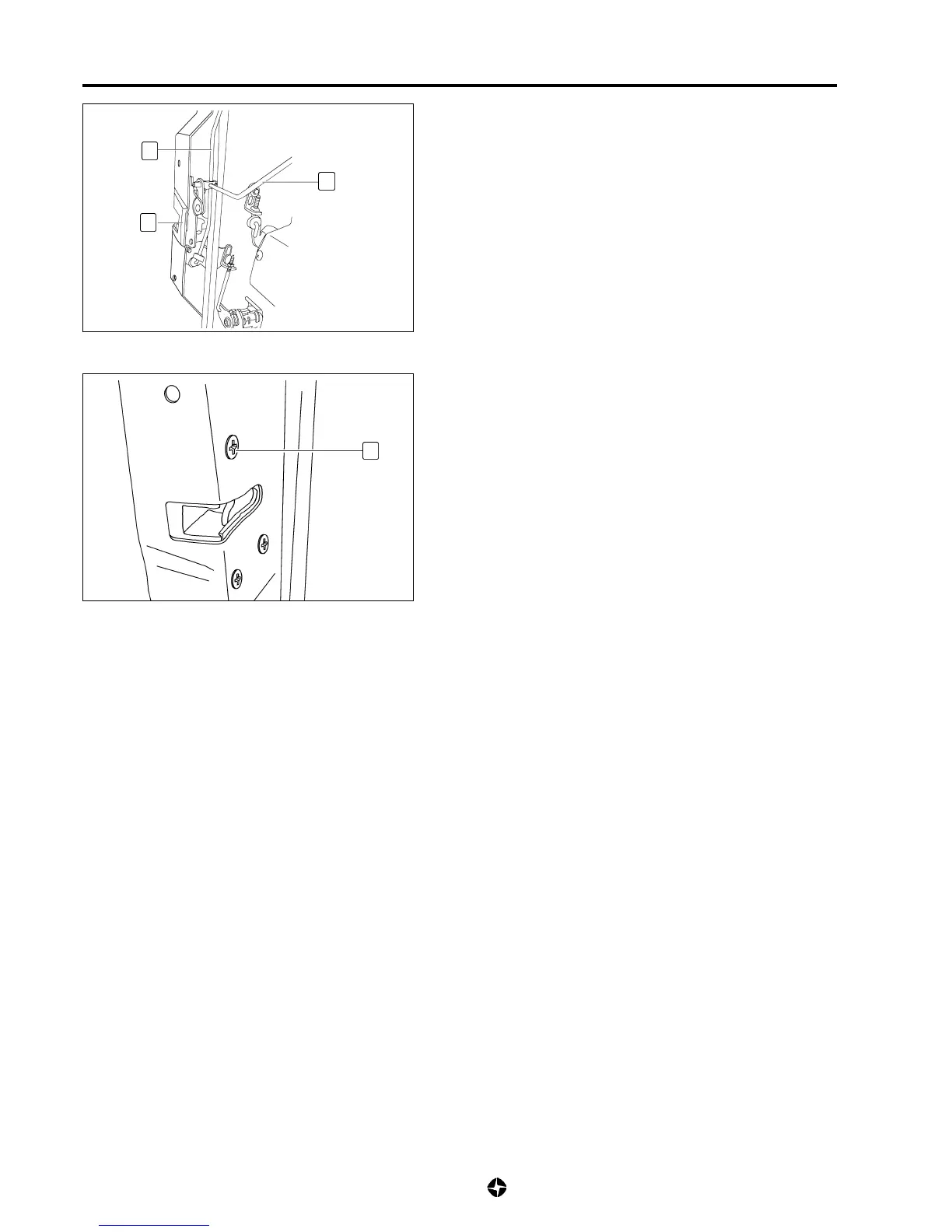

LOCK ASSY

Removal

1) Remove door trim (see 9-2).

2) Remove control rod (1) for door opening from its connection

to lock assembly (2).

3) Remove rod (3) of interior secure system from its connection

to lock assembly (2), acting on fixing clip.

4) Remove screws (4) for fixing lock assembly and extract it.

Instalation

1) Reverse removal procedure, noting specifications of the

complementary task.
