0B-20 MAINTENANCE AND LUBRICATION
Clutch pedal (Item 3.6)
(Pedal height and free travel)
Pedal height

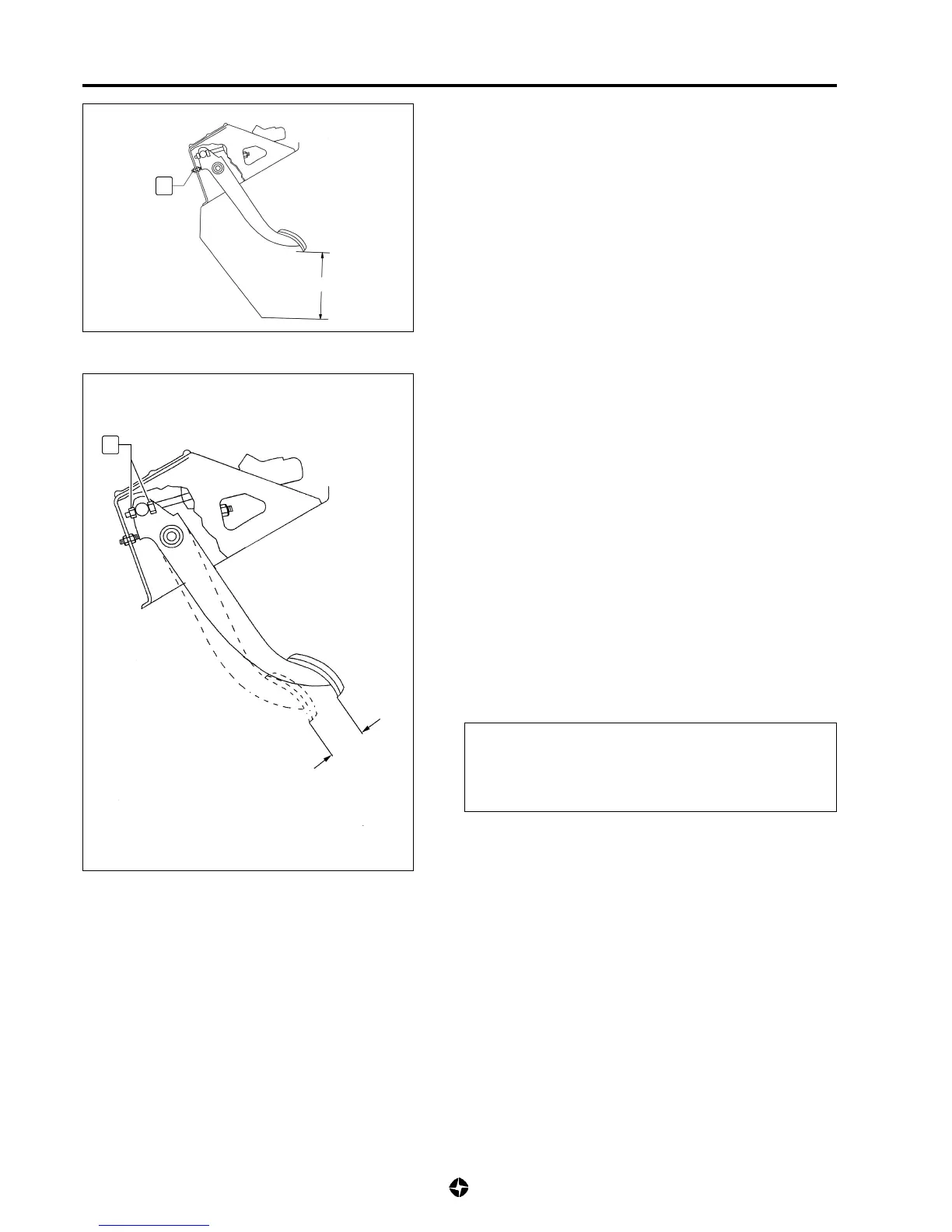

Check the clutch pedal height (A); if different than the specified
value adjust with the adjusting screw (1 ).
Clutch lever height (A): 140 mm
Free travel
1) Check the clear path of the clutch lever (B) as follows:
From the lever rest position, press with a finger till you feel the
hardening; this is the free travel (B).
NOTE:
Repeat this motion several times to get familiarized
by touch and be sure about the path (B).
2) If the free travel does not correspond to the specified value,
adjust it with the nuts (2).
free travel (B) of the clutch pedal: 15 ÷ 20 mm
NOTE:
To know more about the adjustment of the clutch pe-
dal free travel, see 7C-4.
CAUTION:
The clutch pedal free travel set up the right working
of the clutch system and guaranties the long life of
the pushing ball bearing and the clutch disc.
1
A
2
B
