ENGINE FUEL AND EMISSION CONTROL SYSTEM 6C-43
Intake manifold air temperature and pressure
sensor
This device is made up of a temperature sensor and a pressure
one (1).
It’s placed on intake manifold, and measuresover feeding air
pressure and temperature.
Both values, dire used by the control unit to measure the air flow
introduced in cilinders and therefore the fuel ammount sent to
injectors.
Resistance valves in fuction of temperature:
Temperatura Resistencia
Voltage valves in fuction of pressure:

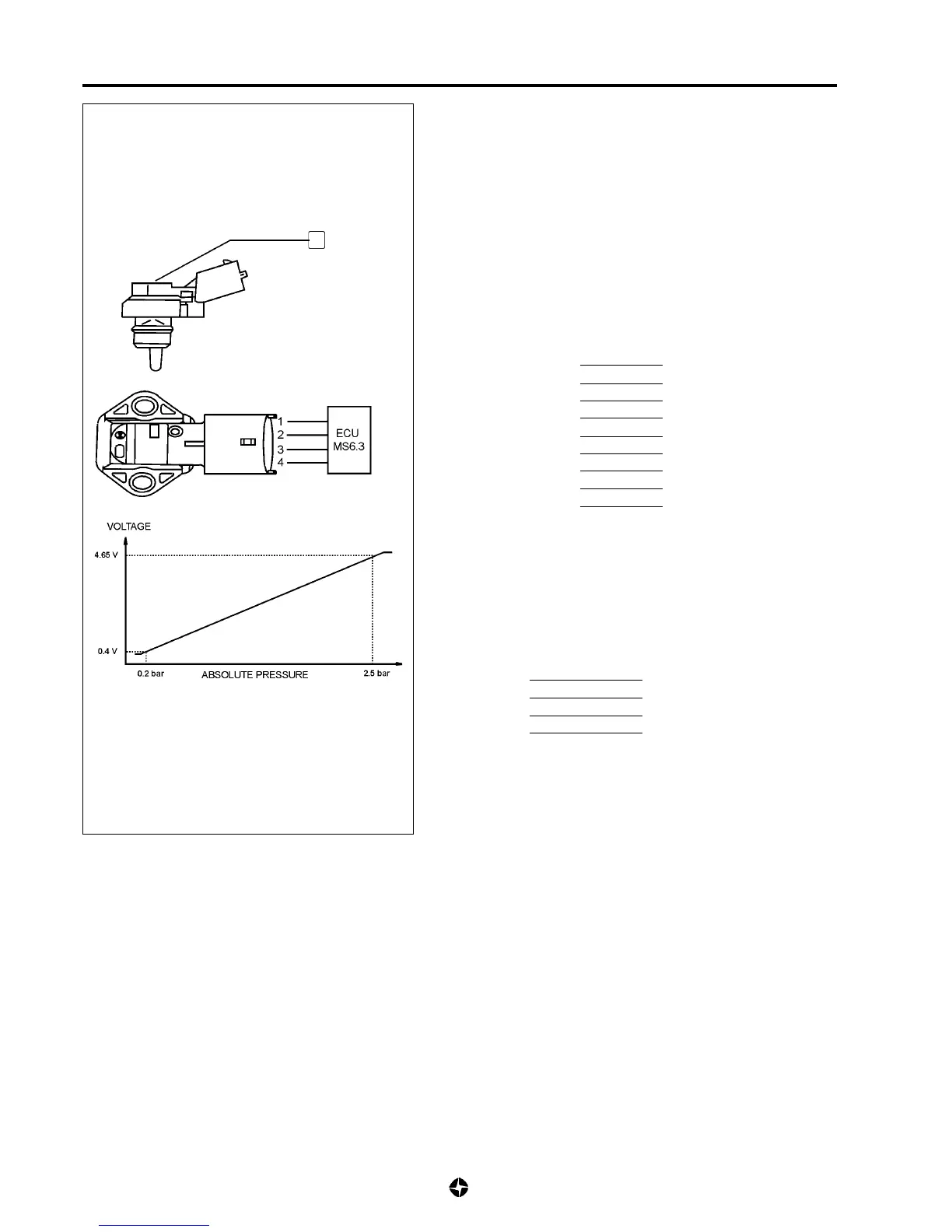

See enclosed figure:
• Terminals between control unit and intake manifold
air temperature and pressure sensor:
Central unit Sensor
Pin A 19 Pin 1 = ground
Pin A 2 Pin 2 = temp signal
Pin A 3 Pin 3 = 5V supply
Pin A 34 Pin 4 = ressure signal 0÷5
-40 ºC
-20 ºC
0 ºC
20 ºC
40 ºC
60 ºC
80 ºC
100 ºC
120 ºC
48,50 Kohm
15,67 ”
5, 86 ”
2,50 ”
1,17 ”
0,59 ”
0,32 ”
0,18 ”
0,11 ”
1
