7D-30 TRANSFER BOX

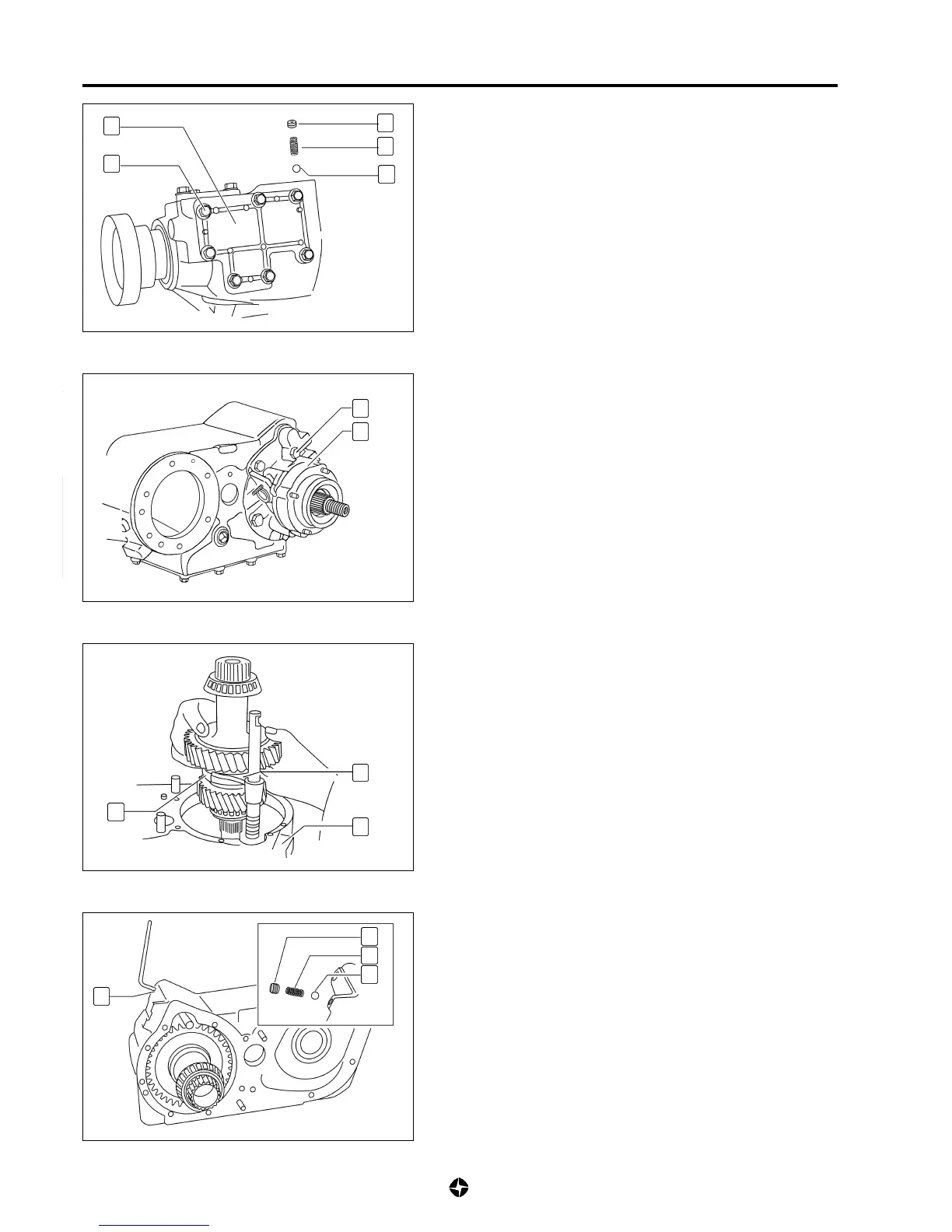

38) Join selector shaft and high/low rod (35) to main shaft
moveable collet (43) and install the assembly on the casing
(65) as shown.
39) Install fixing ball (32) and retaining spring (31).
40) Apply recommended sealant to plug (30) and fit so that it is
flush with the casing.
35
43
30
30
31
32
34) Install fixing ball (53) and spring (52).
35) Fit recommended sealing plug (51) making sure it is flush
with the casing.
36) Apply recommended sealing to the side cover face (48) and
fix with screws (47) to the specified torque, applying the
recommended sealant to the nuts.
Torque for side cover screws:
1,5 ÷ 2 Kg-m (15 ÷ 20 Nm)
37) Fit speedometer box (37), applying the recommended sealant
, to the joint face and fix with screws (36) to the specified
torque.
Torque for speedometer box setscrews:
4 ÷ 5 Kg-m (40 ÷ 50 Nm)
47
48
51
52
53
36
37
65
