TRANSFER BOX 7D-29

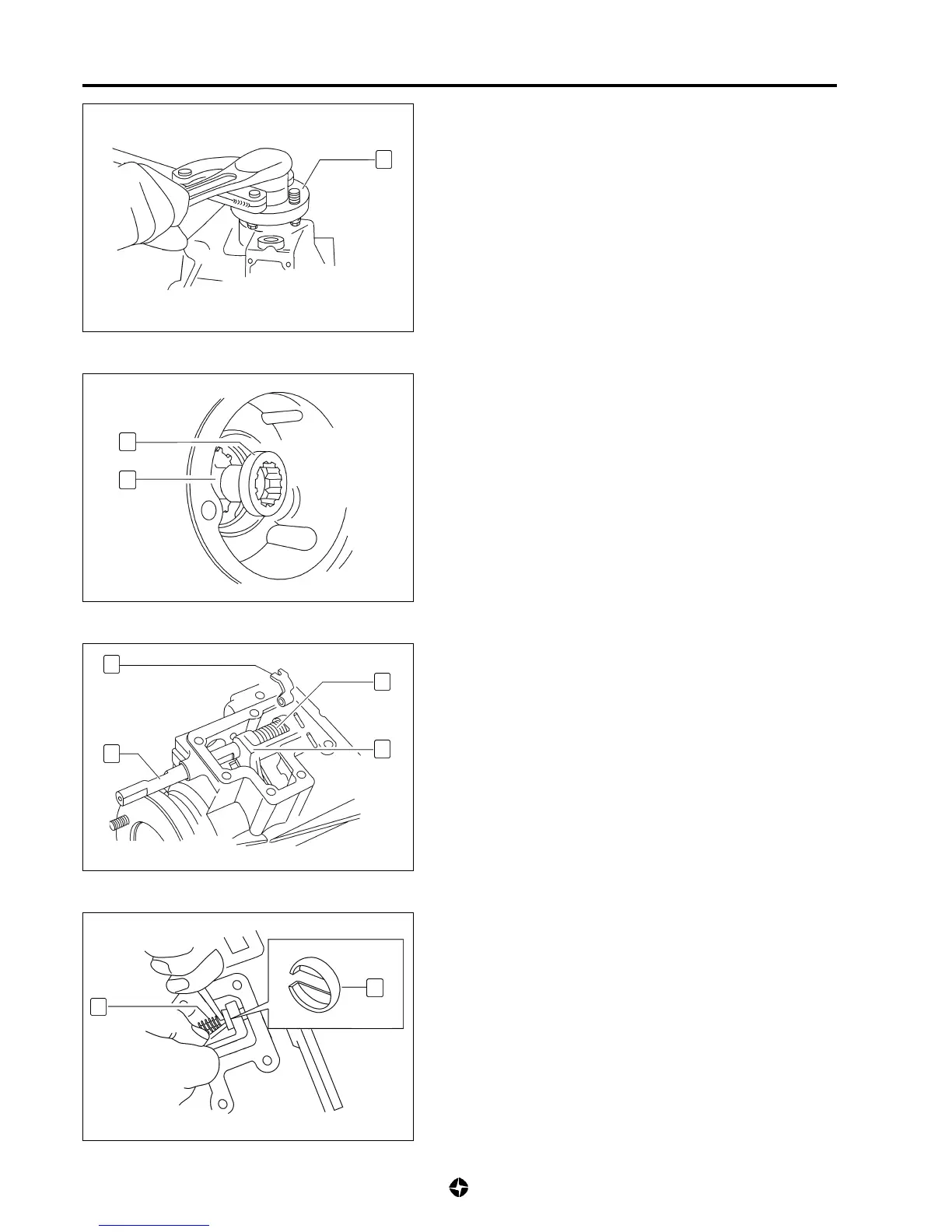

27) Lubricate the sealing lips and fit:
• Bearing.
• Clamp (61).
• Felt washer.
• Metallic washer.
• Fixing nut , tightening to the specified torque.
Torque for assembly screw for front bearing clamp:
14,6 ÷ 17,9 Kg-m (146 ÷ 179 Nm)
28) Fit, on the front outlet bearing (62), the forward traction stud
hook (60), positioning the lowered part towards the main
transfer shaft.
61
60
62
29) Join control rod (56) to the forward traction stud hook (60).
30) Compress spring (55) and place it the rod socket.
31) Fit selector shaft (59) so that the lowered part is facing
forwards and upwards.
32) Fix selector yoke (58) to the selector shaft using the pegs.
58
59
56
55
33) On each side of spring (55), fit a guide pan.
54
55
