LUBRICATION SYSTEM 6L-3
OIL VAPOURS RECYCLING CIRCUIT
The engine ventilation and oil vapours recycling circuit is constituted by the following components:
• A ramp located in the upper part of oil pan of the auxiliary organs group. Oil vapours from the oil pan are collected
while running and are sent to the oil condenser. At the same time, the ramp fulfiles the function of spout.
• An oil condenser receiving the vapours coming from the ramp condensing them and sending them again to the oil
pan. At the same time, the eventual exceeding vapours which can not be condensed are vented to the atmosphere
through a pipe located in the upper part.

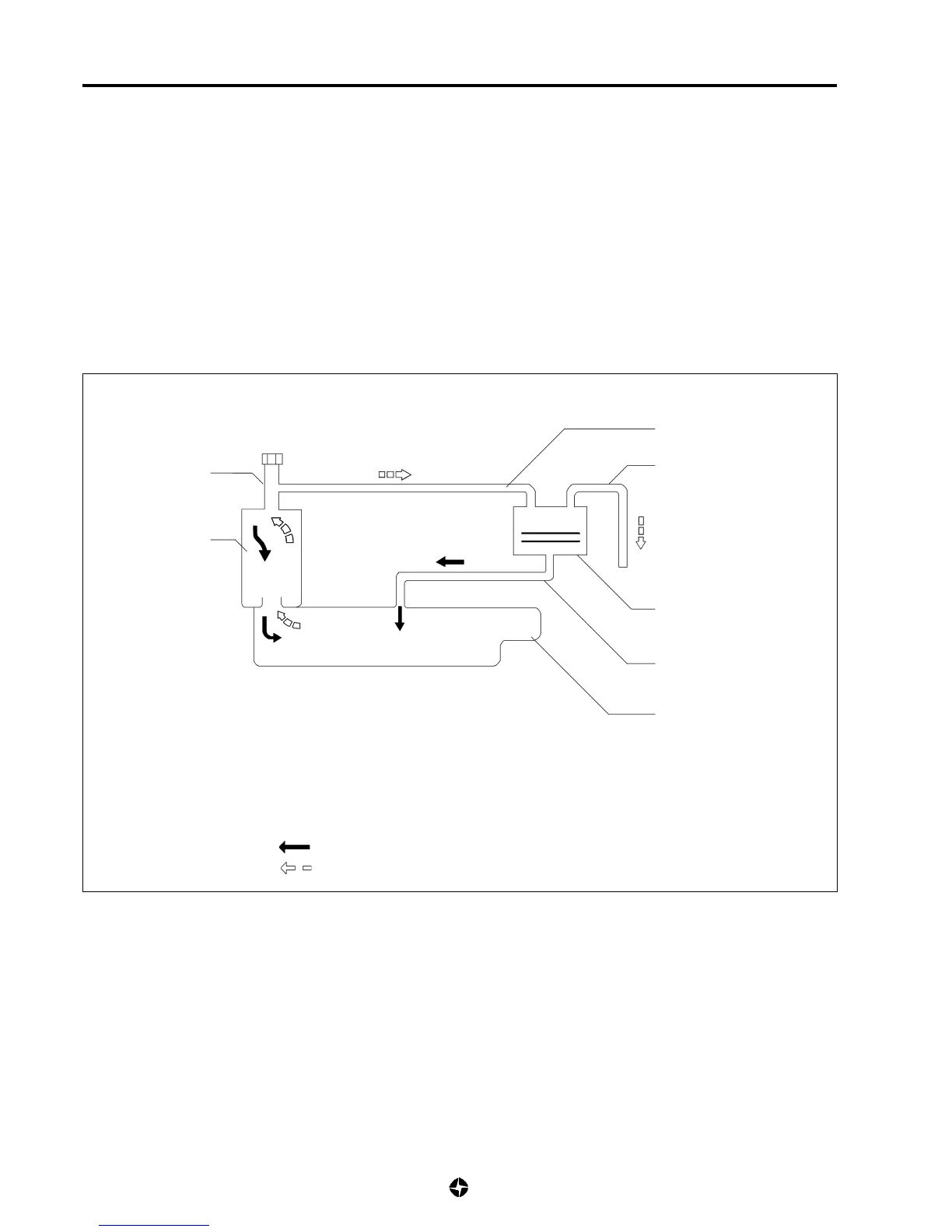

SKETCH OF OIL VAPOURS RECYCLING CIRCUIT
1. Ramp for collecting oil vapours and oil spout.
2. Pipe sending oil vapours to condenser.
3. Oil vapours condenser.
4. Condenser oil pipe conduit to oil pan.
5. Excess oil vapours pipe conduit for venting to the atmosphere.
6. Oil pan.
7. Auxiliary organs group.
Oil.
Oil vapours.
1
7
2
5
3
4
6
