3D-6 FRONT SUSPENSION

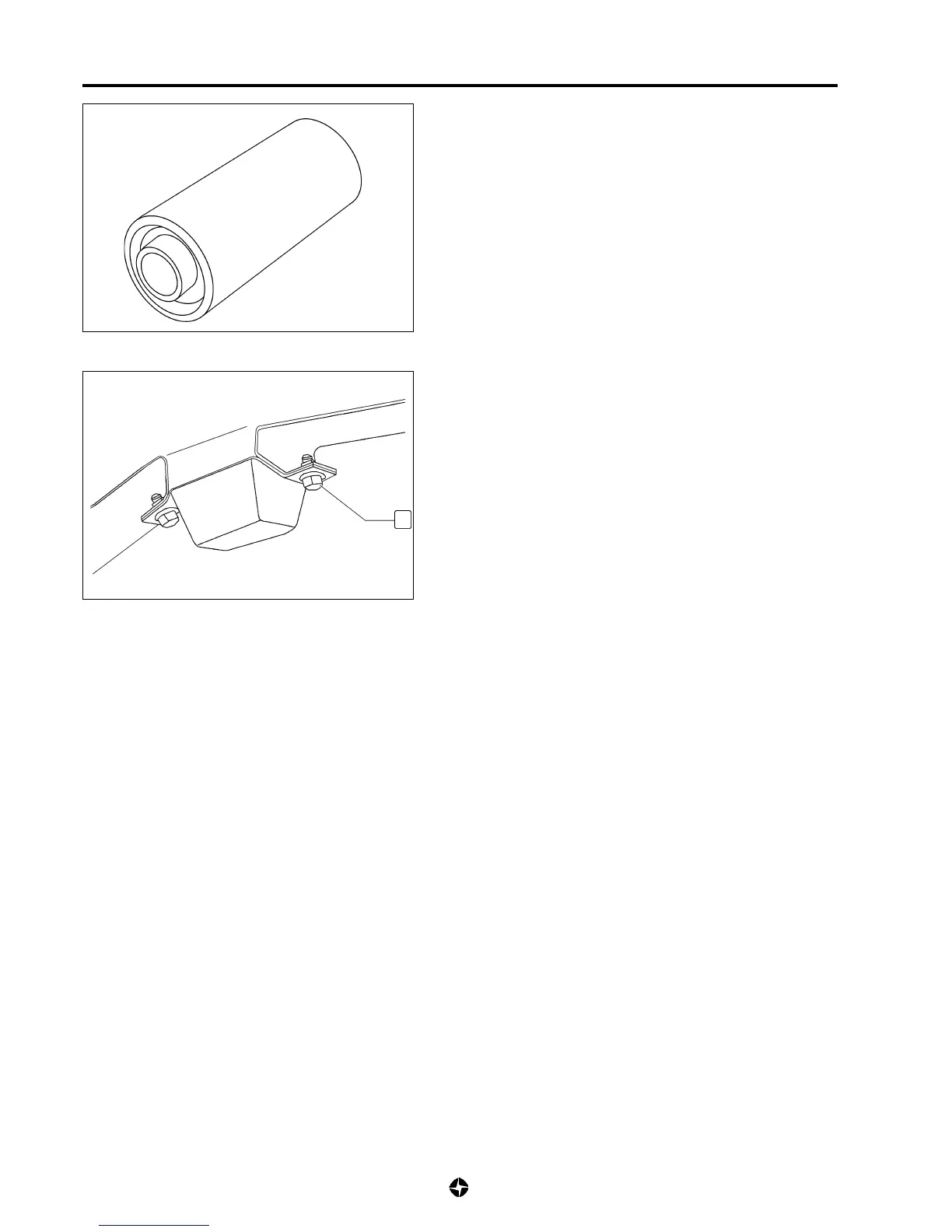

SPRINGS BUSH AND BODY
1) Remove shock absorber and front leaf springs (see 3D-3).
2) Check silent blocks worthiness or if they have pittings,
breakings, deformations, etc.
3) Substitute the bad silentblock using the special hydraulic
tool to extract and install the silent blocks.
4) Install the other components reversing the install order and
taking into account the specified tightening torques.
SPRING BUMBPER
1) If it is necessary to substitute some spring bumper, remove
fixing screws (1) and withdraw top.
2) Check that tops are not unstuck, cracked, deformed, etc;
otherwise, change ensemble for another new one.
3) Install spring bumper ensemble with its fixing screws.
