FRONT SUSPENSION 3D-5

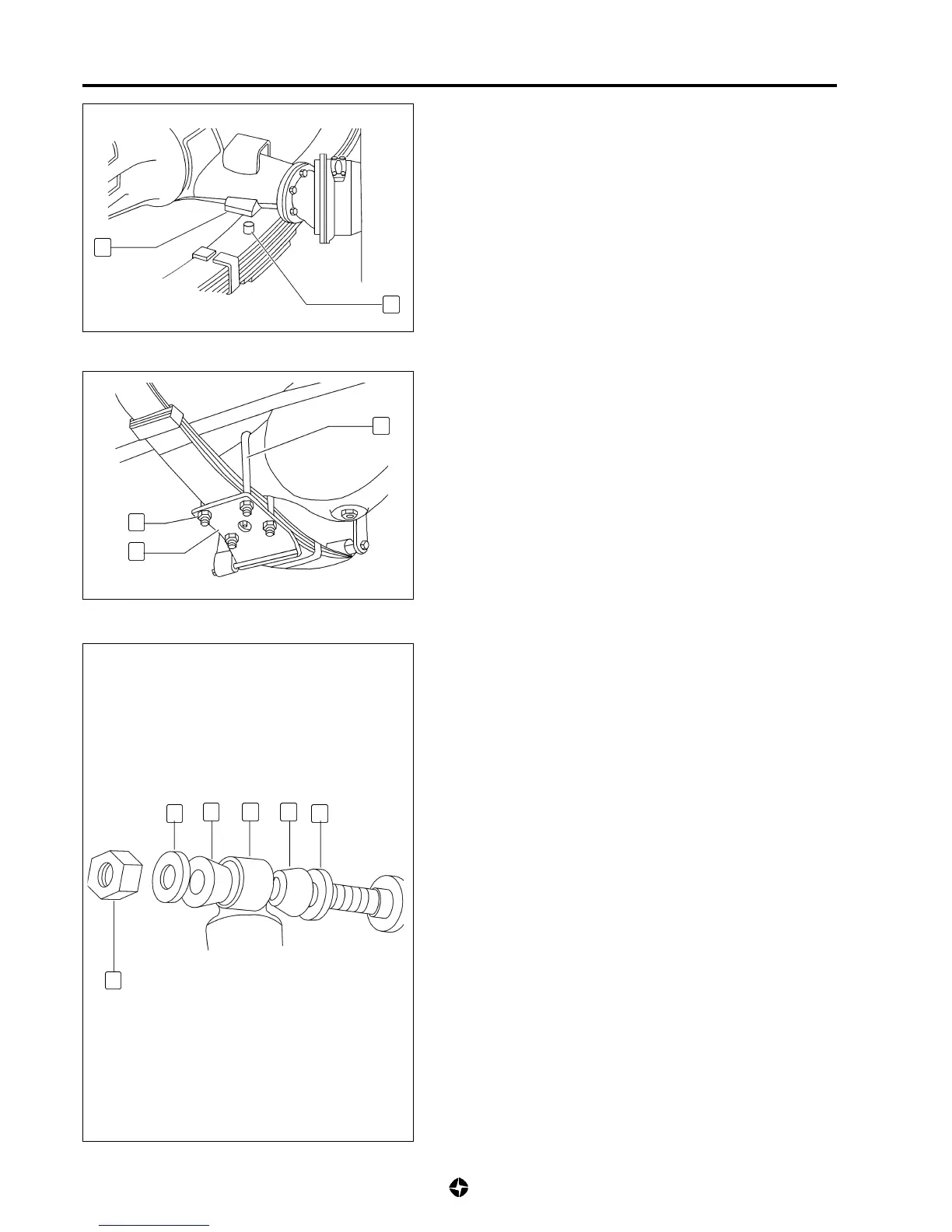

13) Lift the vehicle till the axle rests suspended from the springs
and centre it till the spring top (15) is perfectly lodged in the
axle supporting point (16).
14) Install “U“ bolts (9), spring seats (10) and nuts (8).
15) Tighten nuts (8) to specified torque.
Tightening torque for nuts fixing “U“ bolts:
7 Kg m (70 Nm)
16) Bring down the vehicle till wheels rest on the ground and
take away the hydraulic lifting device.
17) Tighten to specified torque bolts and nuts fixing spring front
and back ends.
Tightening torque for bolts and nuts:
9,5 Kg m (95 Nm)
Dampers installation
18) Fix the upper of shock absorber (3) with silent blocks (4)
and top washes (2); install nut (1) without tightening.
15
16
19) Fix the lower of the shock absorber (3) like its upper.
20) Tighten nuts till reaching the top.
8
10
9
1
2
4
3
4
2
