Santana PS-10 User Manual

7C-12 CLUTCH
MAIN CLUTCH CYLINDER
Removal
1) Remove main clutch cylinder (see 7C-6).
2) On a workbench, clean the assembly and dismantle the
cylinder fixing elements from the support and pedal.

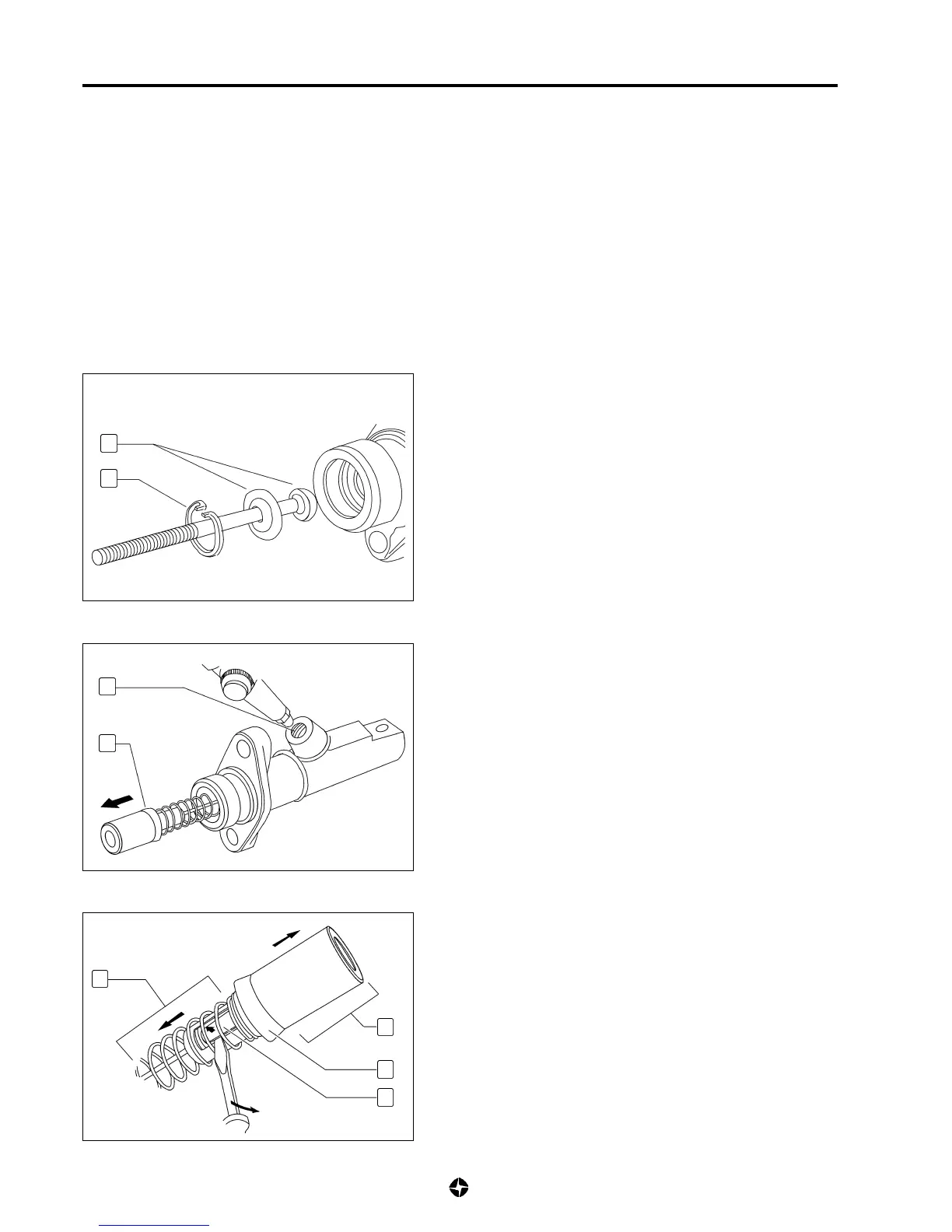

Removal cylinder
3) Remove ring (1) and take out control rod and fixing washer (2)
4) Remove by using compressed air via the inlet the cylinder
assembly, removal spring and packing gland
NOTE:
Do not remain in front of the rotor while removing it by
compressed air.
5) Lift pin (5), separate recovery assembly (6) from rotor (7)
and remove casing (8).
3
6
2
1
4
7
8
5
