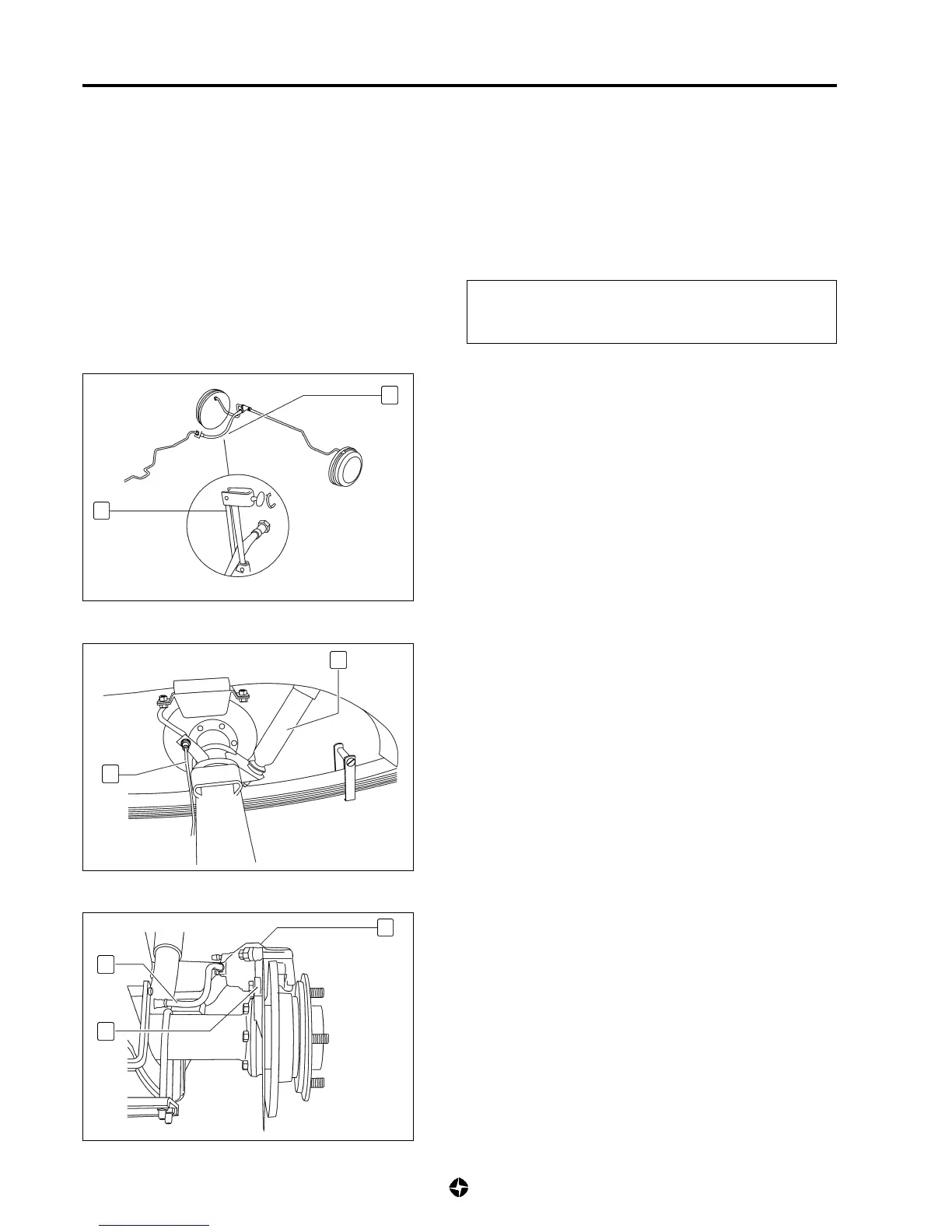

REAR DRIVE SHAFT 4B-9
REAR SHAFT HOUSING SUBSTITUTION
Removal
1) Place the vehicle in an appropriate working surface to carry
out this task.
2) Remove the differential group (see 4B-3).
3) Loose back wheels nuts. Lift the rear part of the vehicle till
the wheels do not touch ground, wedge it firmly in this position
and remove wheels.
WARNING:
The vehicle must be firmly wedged while performing
the task.
4) Strangle brake sleeve (1) using a Girling calipers (A) ref.
191661.
NOTE:
Strangling of the brake sleeve (A) is made to avoid the
total loss of brake liquid when brake clamps are
dismantled and consequently, to have to carry out a
complete purging of the circuit.
1
5
6
5) Disconnect both shock absorber (5) from its connection to
the axle housing.
6) Disconnect the rigid pipes (6) from its connection to the
clamps sleeves and to the axle supports.
A
4
3
7) Disconnect brake sleeves (2), from its connection to the
axle supports and remove brake clamp caliper unscrewing
from support (3).
2
