4B-8 REAR DRIVE SHAFT

FRICTIONS PADS SUBSTITUTION

Frictions pads substitution from the back brakes must be

done following the same procedure indicated or the front brakes

(see 4A-9).

WHEEL HUB REMOVAL, REVISION AND

INSTALLATION

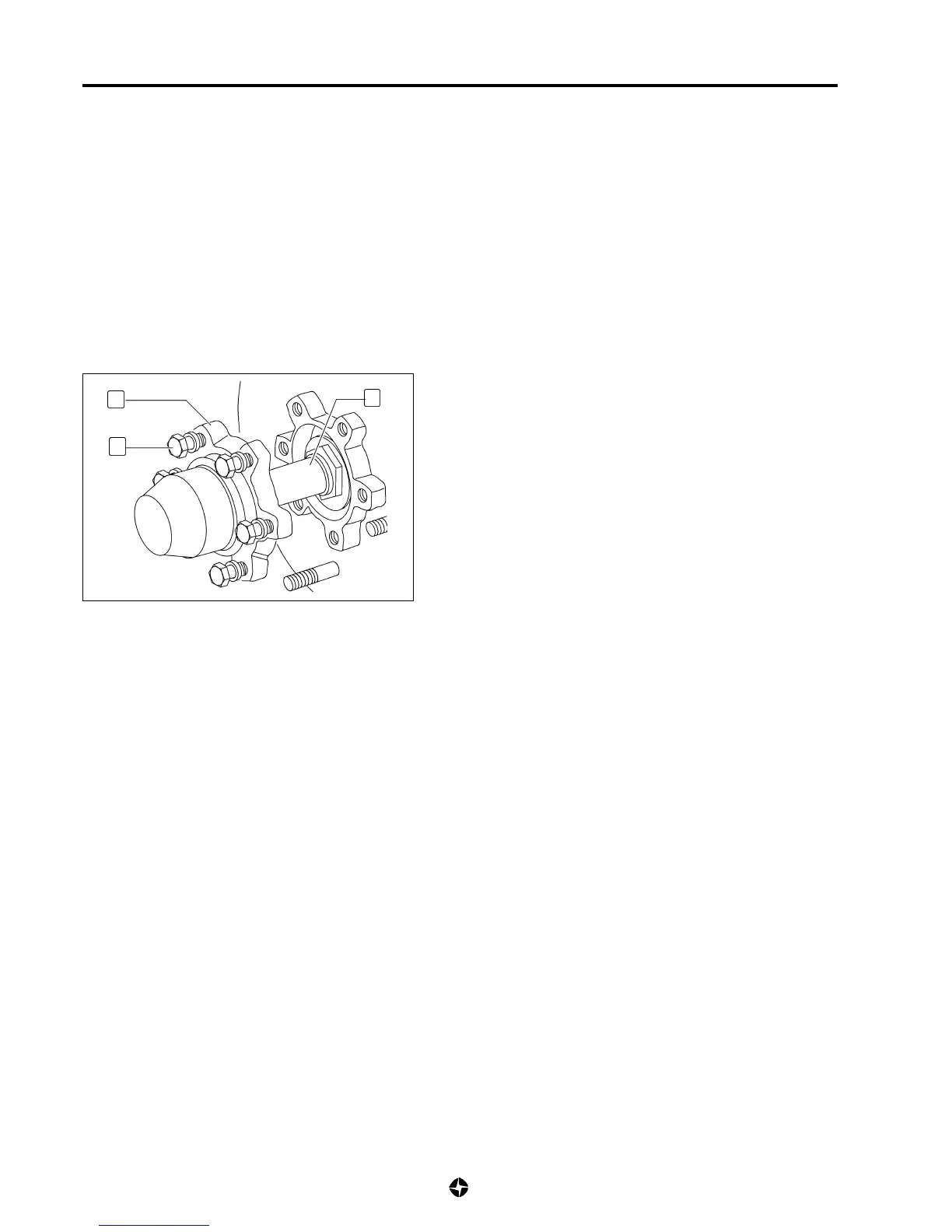

1) Remove screws (2) fixing driving flange (1).

2) Remove as an assembly flange (1) and rear shaft (3).

3) Remove according wheel and ensure that the vehicle is

perfectly wedged.

4) Carry out remove, revision and installation of hub following

the same procedure indicated for the front hub (see 4A-13).

NOTE:

• Take care of applying the recommended sealant in

the contacting surfaces of flange and driving flange.

• Apply the specified tightening torques and assembly

tolerances.
