0B-16 MAINTENANCE AND LUBRICATION
Transfer Box Oil (Item 3.2)
(Oil level and replacement)
Oil Level
1) Place the vehicle on flat even ground, pit or hydraulic lifter.
2) Check there are no leaks; otherwise act on them.

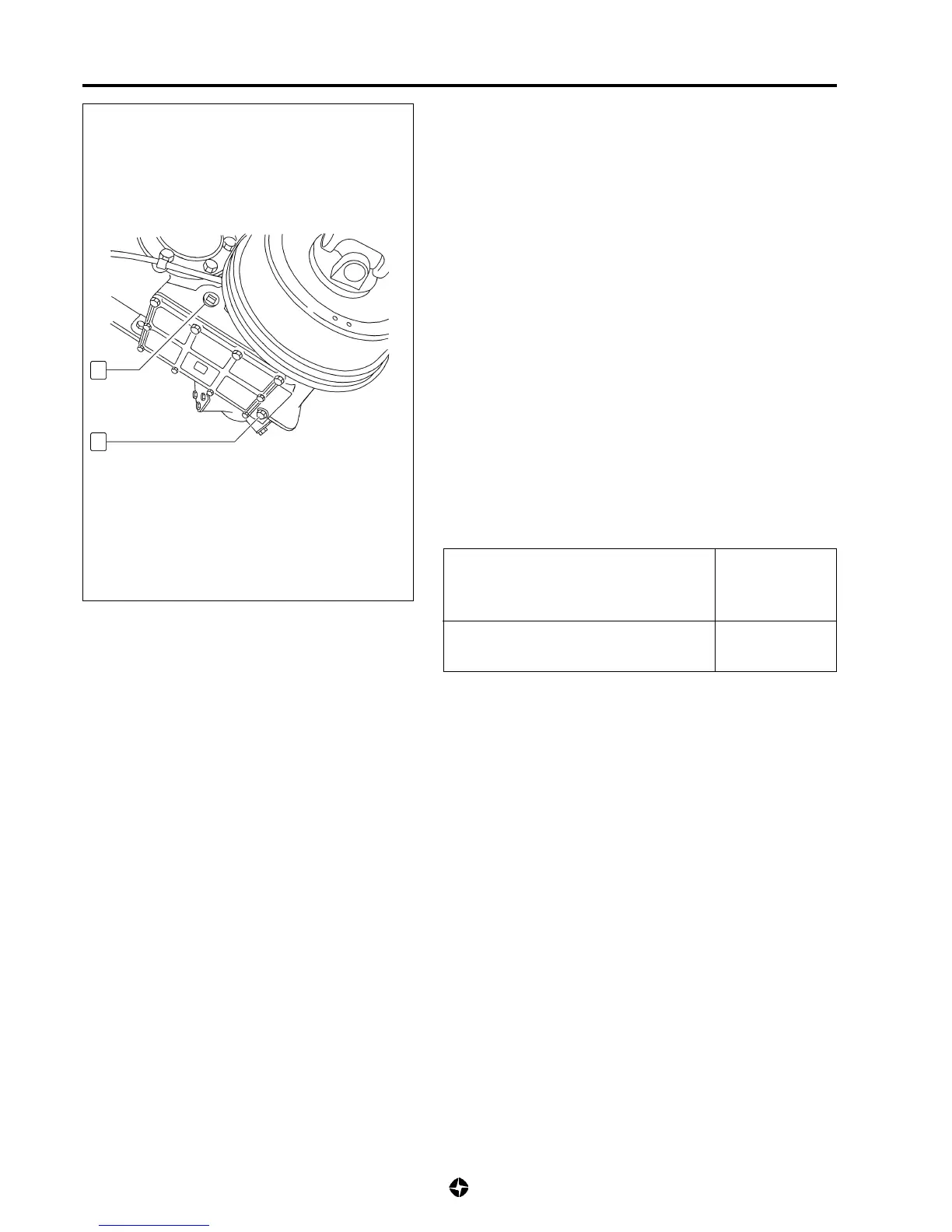

3) Unlock level and filling plug (1). When unlocking, a small oil
will come out through the hole, meaning that level is right;
otherwise, add up further oil of the recommended type.
4) Clean the threadings of the plug and the sump, apply the
recommended sealant in the threadings of the plug and
tighten moderately.
Oil Replacement
1) Prepare an adequate container to pour the oil.
2) Unlock level and filling plug (1) and the draining plug (2). Let
oil drip and lock again the draining plug (2) with a new joint
and tighten it moderately
3) Fill and level with the recommended oil.
NOTE:
Use sealant TB 1215 QUIMILOCK for the cap threads.
Recommended Gear Box Oil
Gear Box Oil Amount
SAE 75W-90
API GL-4
2.800 c.c.
1
2
