BODY SERVICE 9-23
BACK SEA
TS

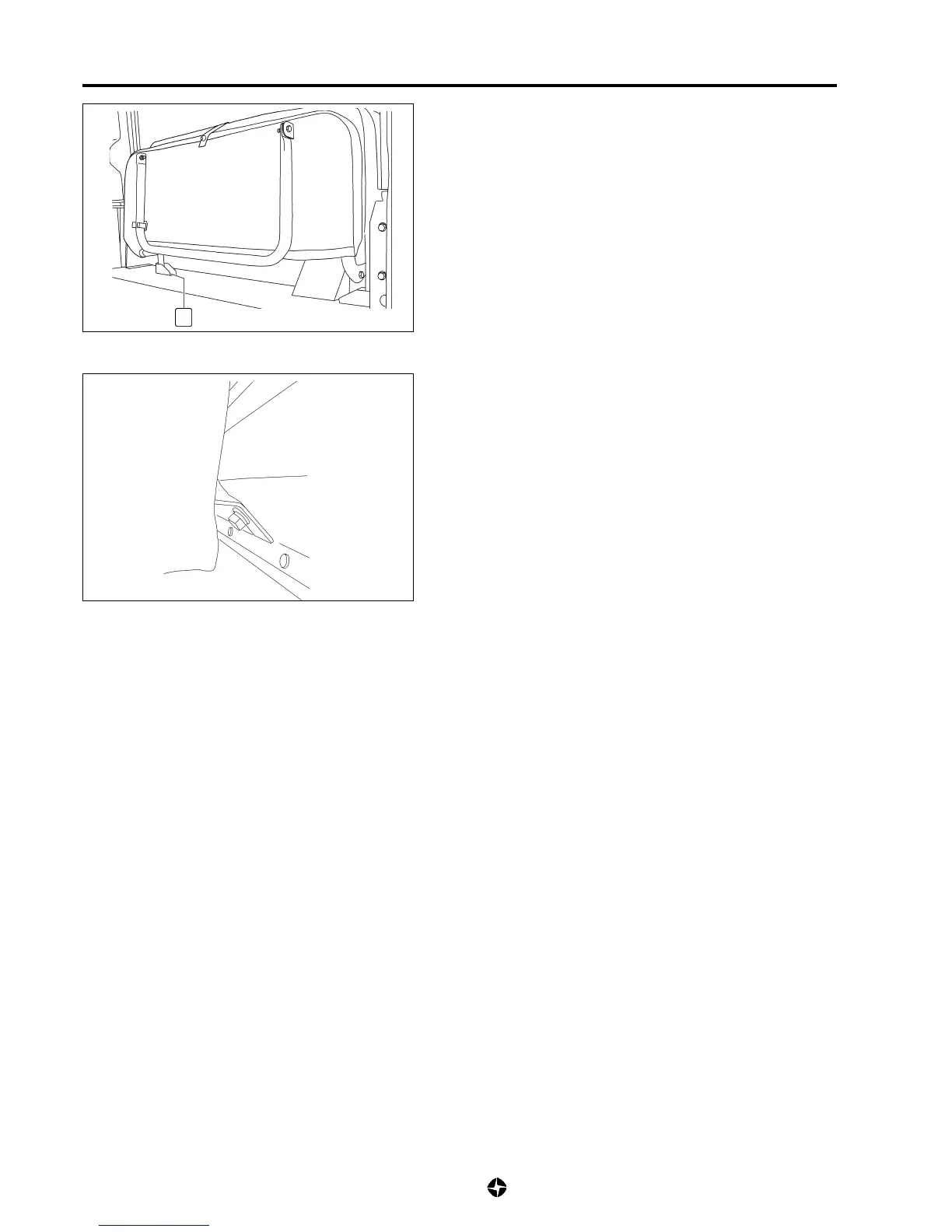

Removal
1
)
Remove lower screws (1) fixing back seat to rear body
.
2
)
Remove upper screws fixing back seat back to side of rear
body and remove the seat.
Instalation
1
)
Assemble back seats reversing the dismantling order
.
1
585
587
