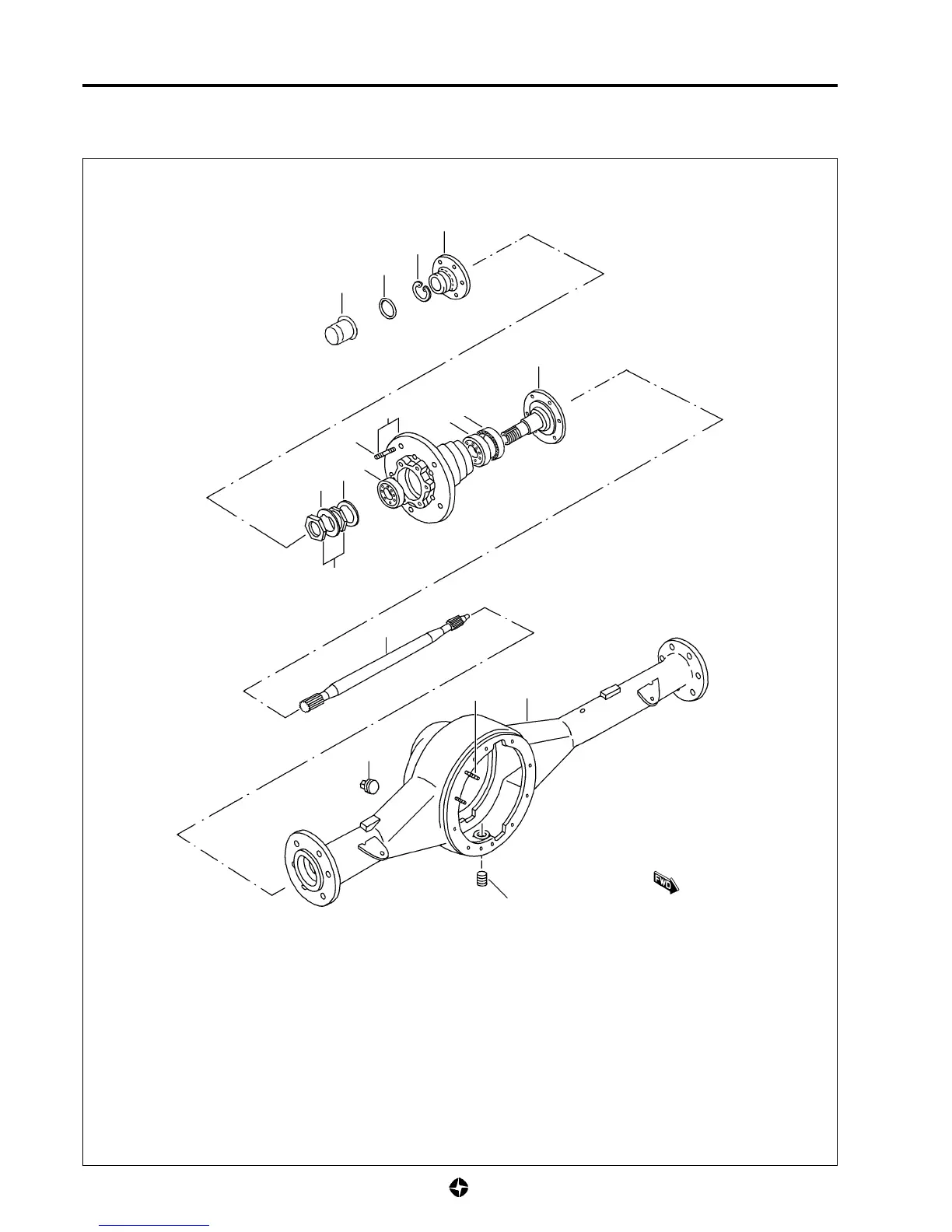

4B-2 REAR DRIVE SHAFT

1. Wheel hub.

2. Wheel studs.

3. Rear spindle.

4. Nuts.

5. Washer.

6. Washer catch.

7. Driving flange.

8. O ring.

9. Circlip.

10. Hub internal bearing.

11. Hub external bearing.

12. Oil-seal.

13. Rear shaft housing.

14. Group fixing studs.

15. Oil filling plug.

16. Oil emptying plug.

17. Rear shaft.

18. Hub cap.

GENERAL DESCRIPTION

18

8

9

7

1

2

11

5

6

10

12

3

4

17

14

13

15

16
