MAINTENANCE AND LUBRICATION 0B-17

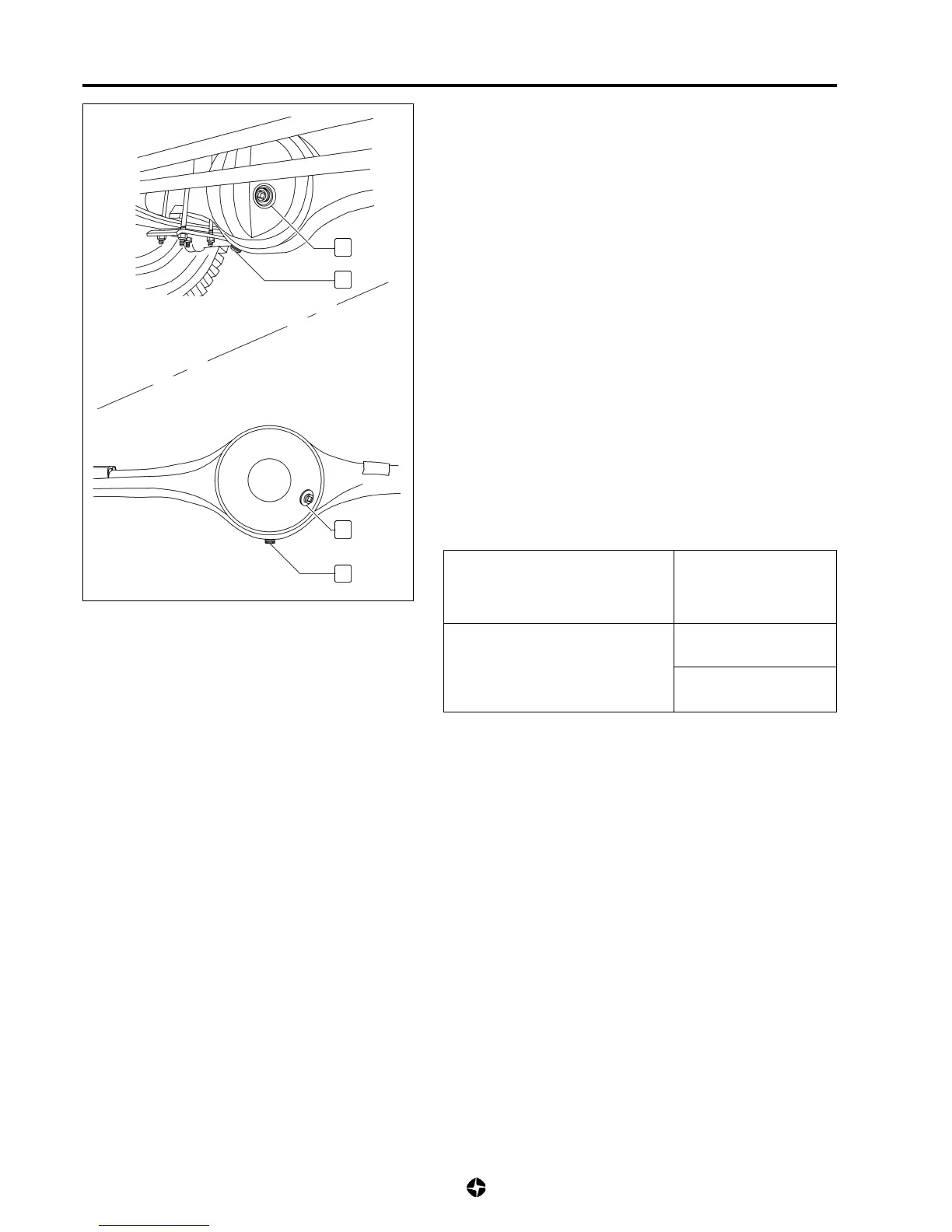

Differential Groups Oil (Item 3.3)
(Oil level and replacement)
Oil Level
1) Place the vehicle on flat even ground, pit or hydraulic lifter.
2) Check there are no leaks; otherwise act on them.
3) Unlock level and filling plug (1). When unlocking, a small
quantity of oil will come out through the hole, meaning that
level is right; otherwise, add up further oil of the recommended
type.
4) Clean the threadings of the plug and the sump, apply the
recommended sealant in the threadings of the plug and
tighten moderately.
Oil Replacement
1) Prepare an adequate container to pour the oil.
2) Unlock level and filling cap (1) and the draining plug (2). Let
oil drip and lock again the draining plug (2) with a new joint
and tighten it moderately
3) Fill and level with the recommended oil.
NOTE:
Use sealant TB 1215 QUIMILOCK for the cap threads.
1
2
1
2
Differential Groups
Recommended Oil
Differential Groups
Oil Amount
SAE 80W-90
API GL-5
Hypoid Gears Oil
Front Group
1.750 c.c.
Rear Group
2.500 c.c.
