6A-36 ENGINE REPAIR
REMOVAL AND INSTALLATION OF ELECTRO-
INJECTORS, HYDRAULIC ACCUMULATOR (RAIL)
AND HIGH PRESSURE PUMP
(Common Rail Engine)(Common Rail Engine)
(Common Rail Engine)(Common Rail Engine)
(Common Rail Engine)
WARNING:
Loosening any union nut ofd high pressure pipe whith
engine running or while pressure still remains an
hydraulic accumulator (Rail), may result in severe
injury.
CAUTION:
Before starting any removal, perfecty clean all
components to remove or disconnect and its
enviroment.

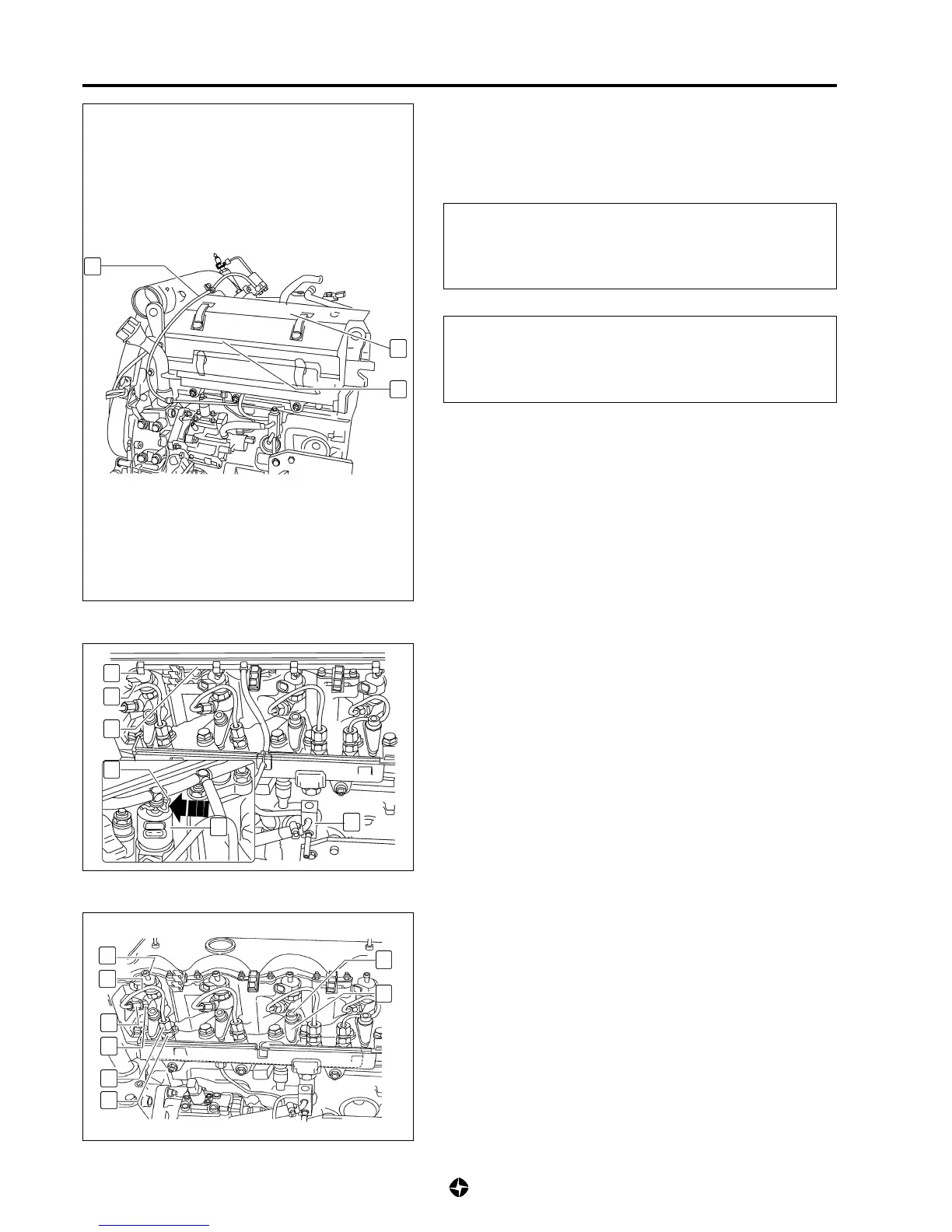

Removal
1) Disconnect negative cable at battery.
2) Remove thermo-starting valve fuel feed hose (1).
3) Remove upper (2) and side (3) sound proof covers.
4) Disconnect injectors couplers.
Injectors removal
5) Press clips (4) towards arrow direction and disconnect return
pipe (6) form injectors and multiple connector (7).
6) Remove high pressure pipes (9); when loosening racors (10)
of high pressure pipe, hold to avoid flow limiter valves (12)
rotation.
7) Remove bolts (13), clamps (14) and injectors (8).
2
3
1
6
5
4
4
5
7
8
9
10
11
10
12
13
14
