4A-6 FRONT DRIVE SHAFT
REMOVAL AND INSTALLATION FRONT DRIVE
SHAFT ASSEMBLY

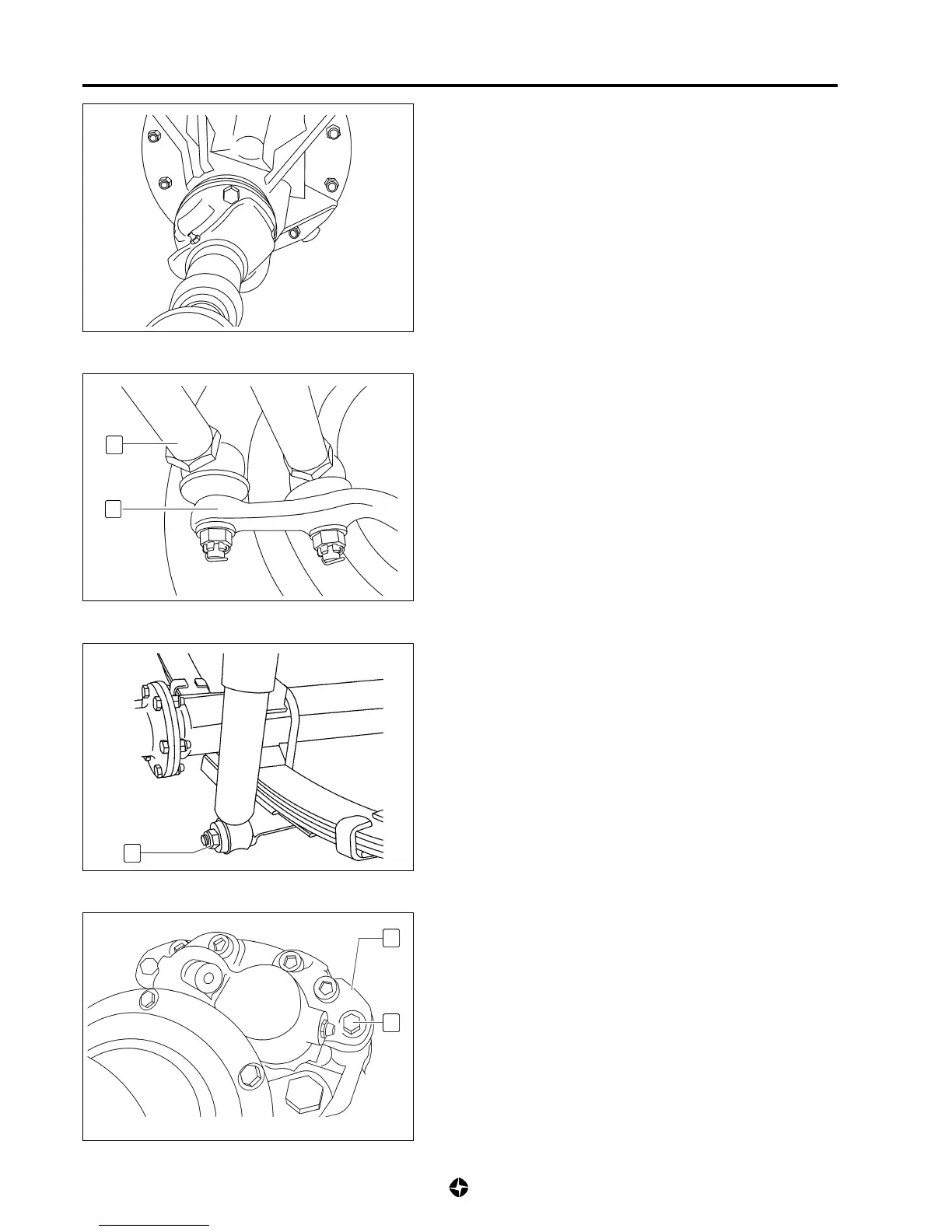

Removal
1) Place the vehicle in a pit or an appropriate hydraulic lifter to
carry out this task.
2) Disconnect front propeller shaft from its connection to the
differential group.
3) Disconnect drive rod (1) from its connection to arm (2).
4) Remove shock absorber nuts (3) from connection to spring
plates and disconnect shock absorber.
5) Loose wheel nuts, lift front part of the vehicle, leaving both
wheels suspended and the vehicle firmly anchored.
6) Remove both front wheels.
7) Remove screws (4) fixing brake caliper (5) and take it away
together with the sleeve.
NOTE:
• Do not press brake lever till putting back again the
brake caliper.
• While doing this task, the brake caliper must be kept
away adequately, do not allow it to be hanging from
the brake sleeve.
1
2
3
5
4
