BODY SERVICE 9-9

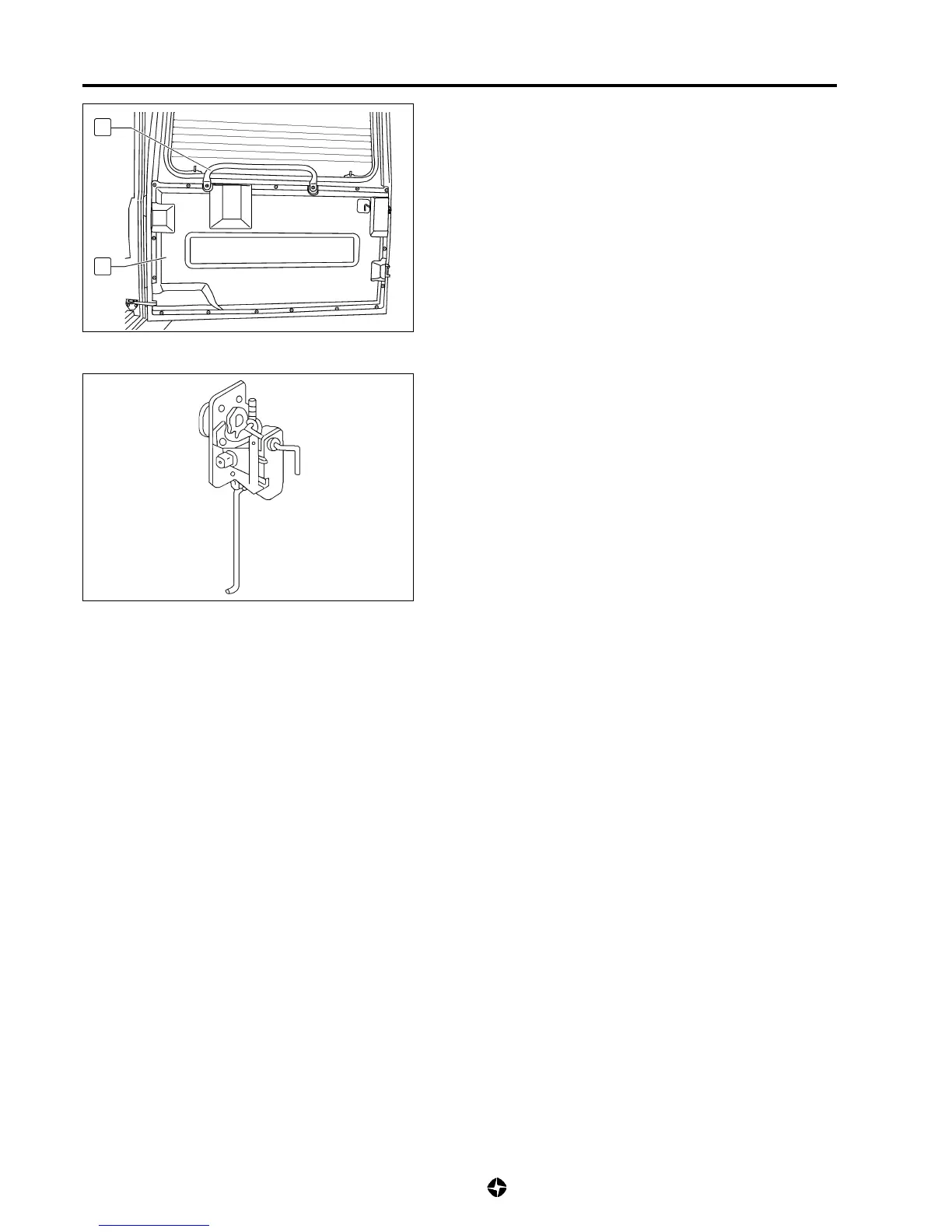

DOOR LOCK

Removal

1) Remove holding handle (1).

2) Remove door trim (2).

3) Remove door opening control lever from its connection to

lock assembly.

4) Remove screws fixing lock assembly and extract it.

Instalation

1) Reverse removal procedure, noting:

• Apply sealant off component in the door internal wedge,

and put back again the door sealant cover.
