TRANSFER BOX 7D-17
GENERAL REPAIR OF THE
TRANSFER BOX
TRANSFER BOX REMOVAL, SERVICE AND
INSTALLATION
Removal

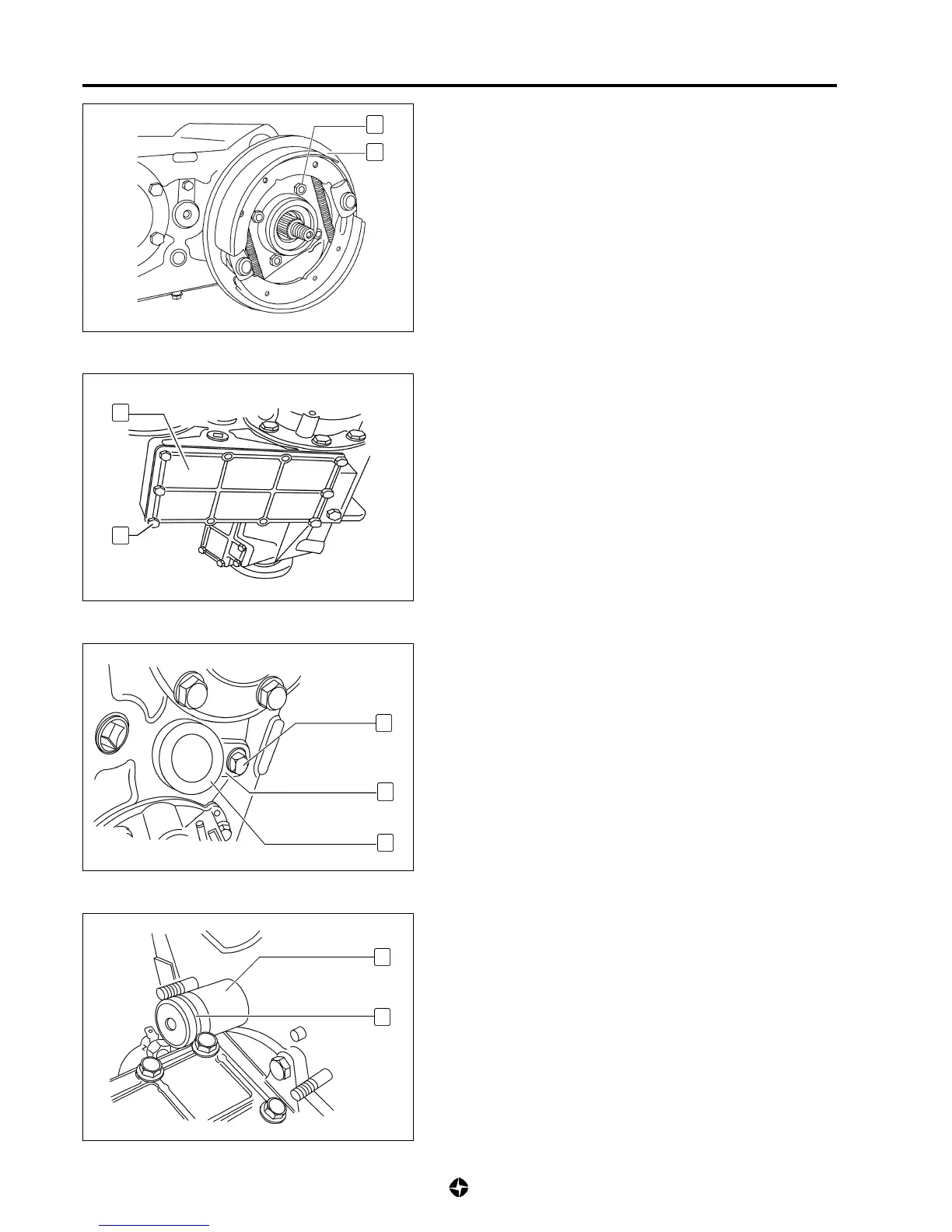

1) Remove transfer box installation from vehicle (see 7D-15).
2) Remove brake drum (see 7D-6).
3) Unscrewing nuts (2) and remove the plate with shoes.
4) Take out screws and remove lower cover.
7
2
1
3
4
5
6
6) Remove shaft (7) together with its "O" ring (8) pressing its
front part.
7
8
5) Remove screw and plate which hold intermediate triple gear
shaft (7).
