7D-18 TRANSFER BOX

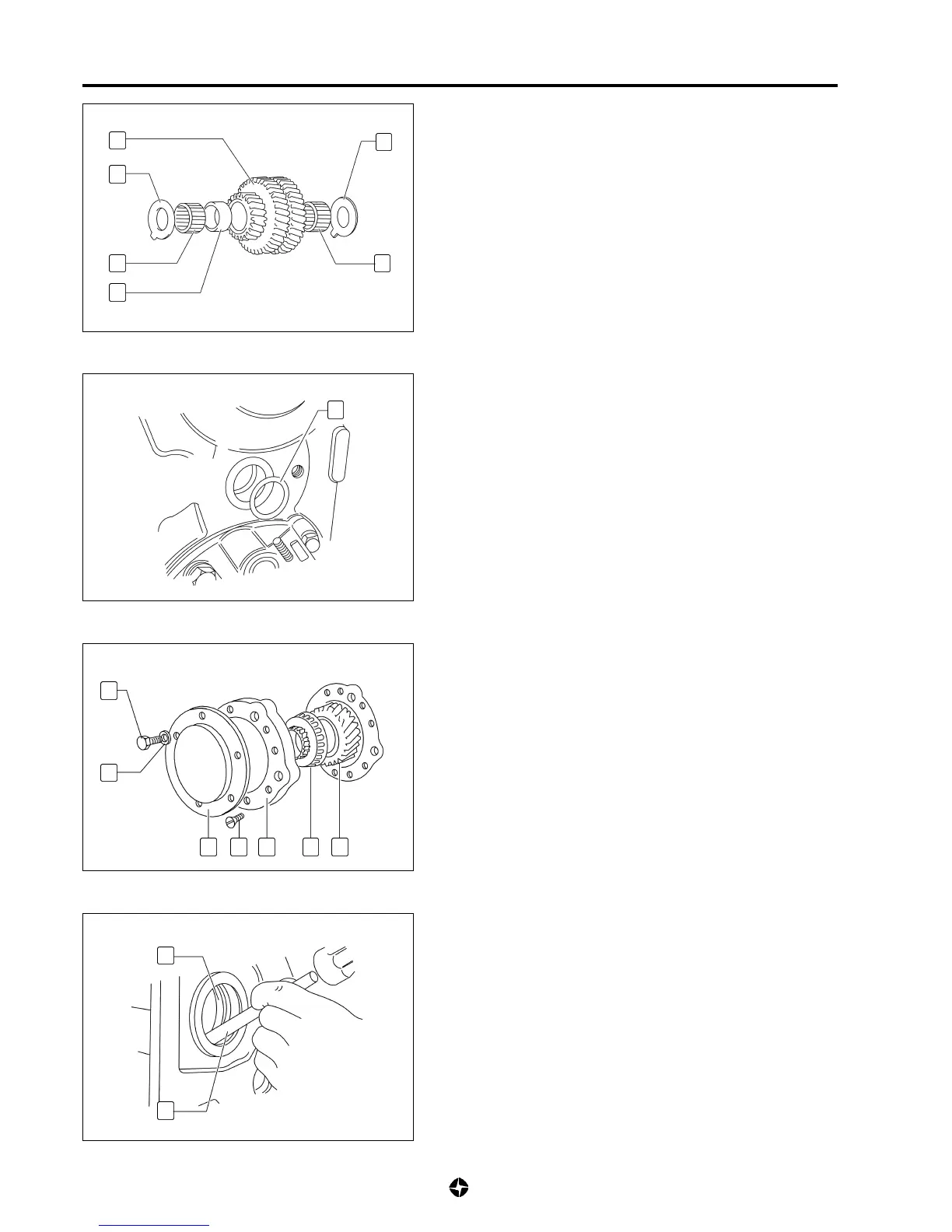

11) Remove front ring (19) using a copper rod (A).
19
A
7) Remove intermediate triple gear assembly (9) and separate:
• Friction and assembly washers (10).
• Cog bearing (11).
• Supplementary bush (12).
8) Remove "O" ring (13) which is found in intermediate shaft
front hole and which stops the oil escape from this zone.
9) Take out screws (17) and washers (18) and remove cover
(14).
10) Unscrew conical screws (15) and remove:
• Supporting plate.
• Drive gear (23) and conical bearings (22).
10
11
9
10
11
12
13
18
17
16
15
14
23
22
