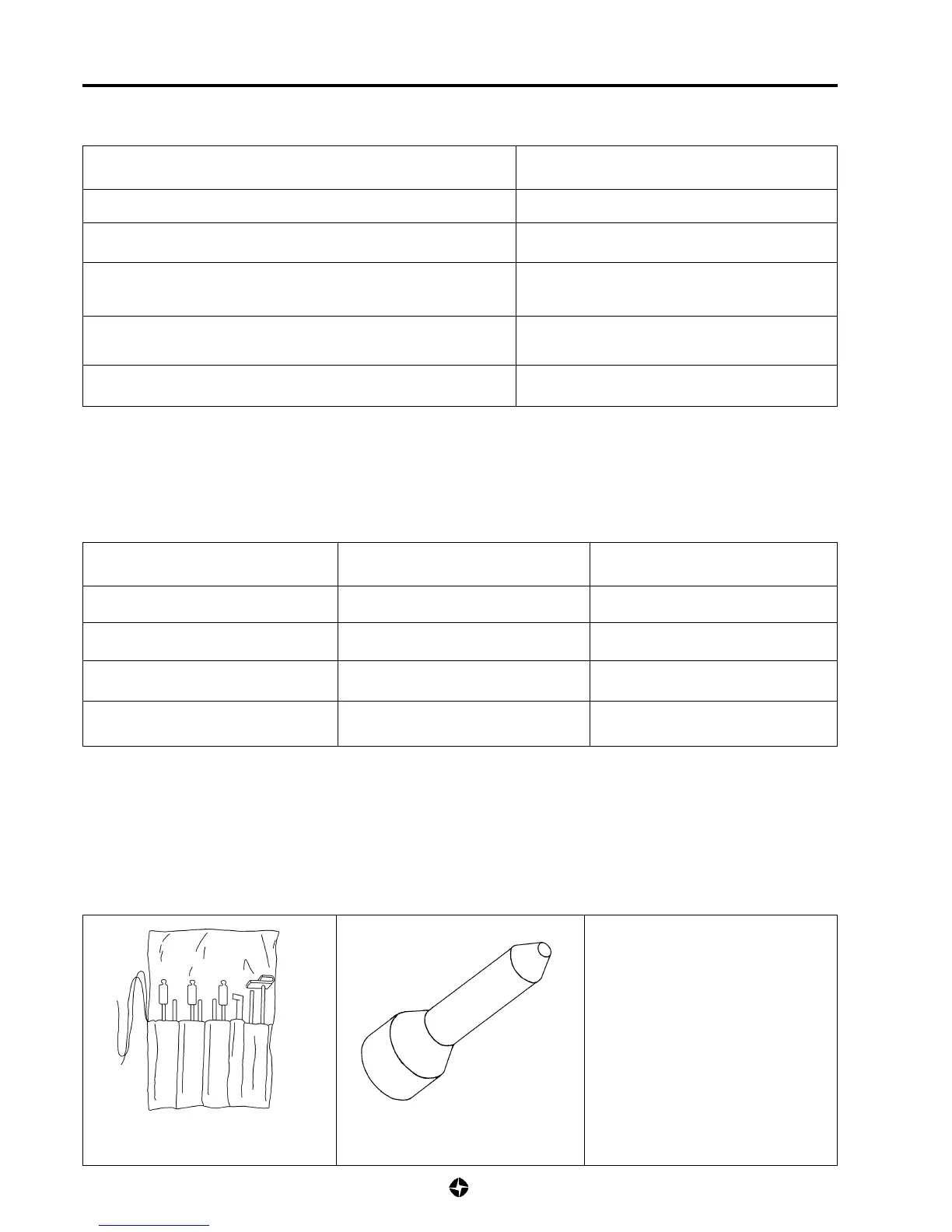

7D-36 TRANSFER BOX

SPECIAL TOOLS

REF. 191661

GIRLING LEVERS

REF. 494688

SEAL FITTER

INSTALLATION DATA AND TOLERANCE

REQUIRED SERVICE MATERIALS

DENOMINATION DATA

Longitudinal play - main shaft gears

0,05 ÷ 0,15

Play - triple intermediate gear

0,00 ÷ 0,40

Applicable thickness to obtain pre-tingten for the main shaft

bearings

0,025 ÷ 0,076

Applicable thickness to obtain pre-tingten for the transfer drive

gears

Parkingbrake maximum efficiency

0,025 ÷ 0,076

Point 7 on the ratchet

REF.

PRODUCT TYPEAPPLICATION POINT

Join surfaces -casings and covers

Setscrews

TB 1215

LOCTITE 573

TB 1215 / QUIMILOCK

Filling and oil bleeder screws

Axial washers and closing lip seals

AGUILA 95

790997

790998

791000

790999
