CLUTCH 7C-11
Instalation
1) Fit the clutch assembly in reverse order to dismantling,
aligning the coupling marks between the pressure plate and
the flywheel.

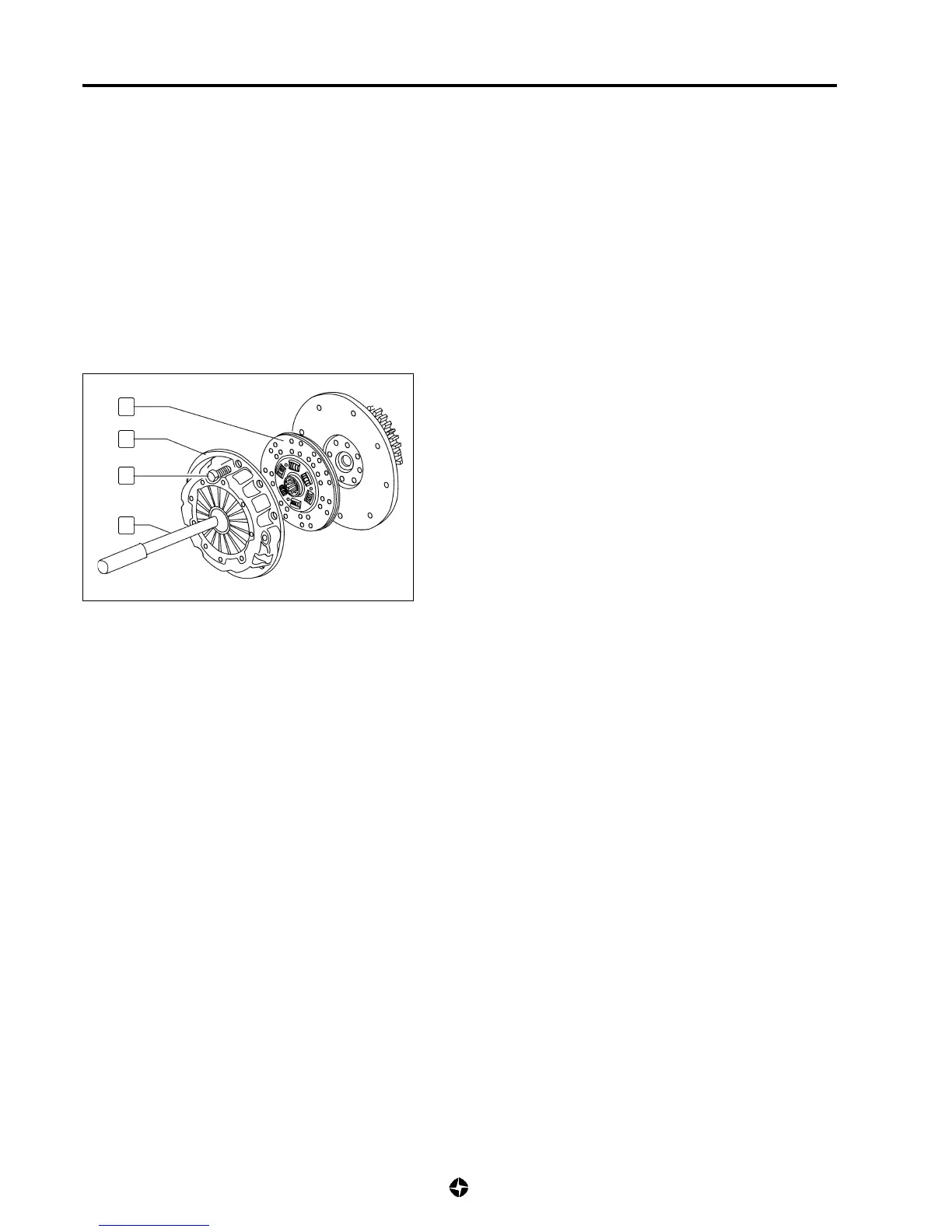

2) Centre clutch disc (3) using a dismounted main shaft (A).
3) Tighten pressure plate (2) setscrews (1) slowly and
crosswise until reaching the specified torque.
Torque for pressure plate setscrews:
2,75 ÷ 3,75 Kg-m (27,5 ÷ 37,5 Nm)
4) Apply a film of graphite grease to the gearbox main shaft end
and fit the gearbox and transfer box assembly (see 7A-8).
NOTE:
Fit the clutch disc in its correct position so that it allows
friction with the flywheel and pressure plate.
3
2
1
A
