3D-4 FRONT SUSPENSION

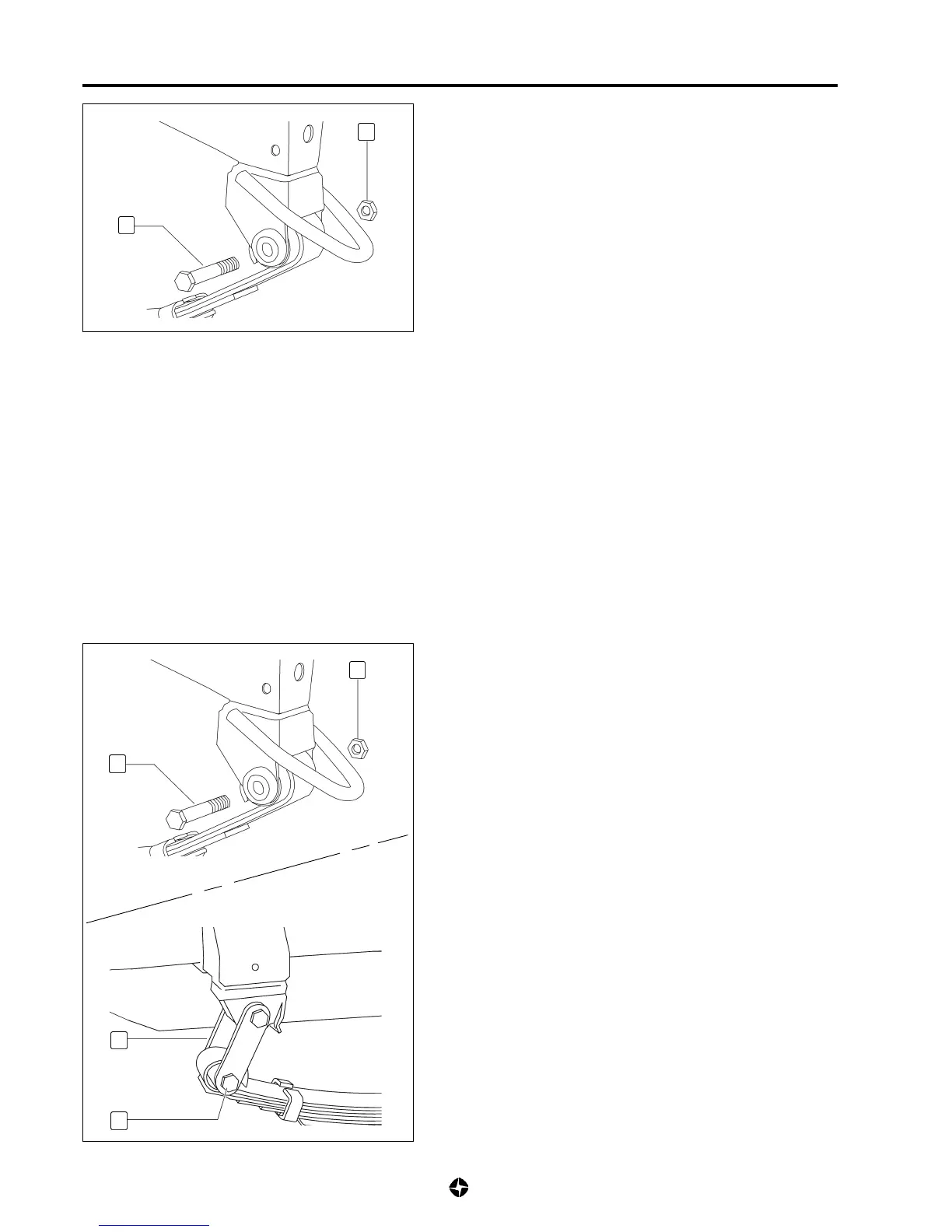

10) Remove nut (13) and screw (14) (front part) and withdraw

spring.

Components revision

11) Check if remove components are sound and they show no

wear neither or breaking; substituting them when necessary.

Leaf springs installation

12) Connect leaf spring front part to body using screw (14) and

nut (13), and the rear of leaf spring to shackle plates (12)

with screw (11), do not fully tighten nuts and bolts.
