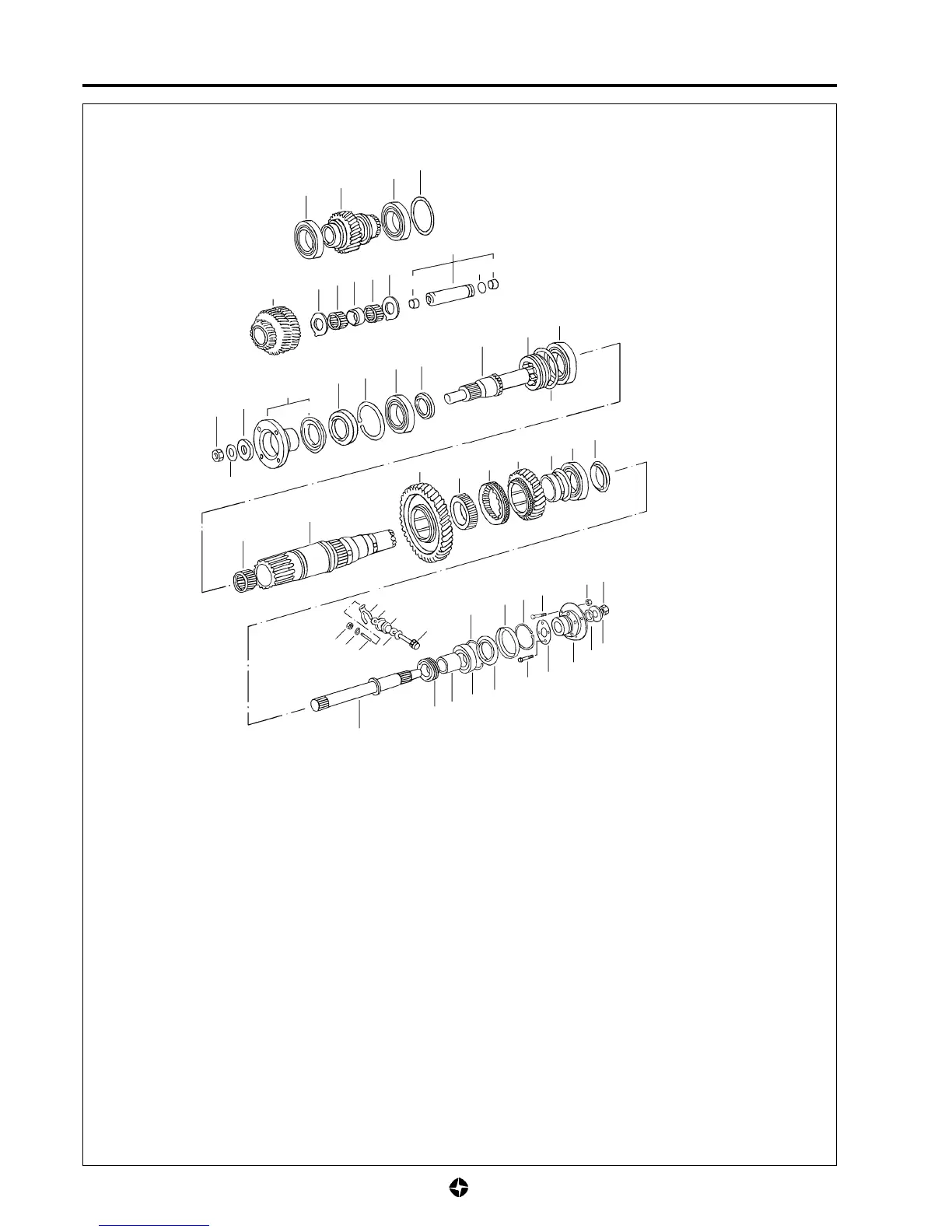

TRANSFER BOX 7D-3
1 Input shaft bearing.
2 Shim.
3 Input gear.
4 Counter gear.
5 Intermediate shaft assembly.
6 Plug.
7 Washer.
8 Bearing.
9 Spacer.
10 "O" ring.
11 Output front shaft.
12 Spacer.
13 Universal joint flange assembly.
14 Boot.
15 Hub.
16 Front output shaft bearing.
17 Output shaft shim.
18 Bearing.
19 Oil seal.
20 Washer.
21 Flange washer.
22 Autobraking nut.
23 Bearing.
24 Main shaft.
25 Output high gear.
26 High/low sleeve core.
27 High/low sleeve.
28 Output high gear.
29 Bush.
30 Bearing.
31 Main shaft nut.
32 Snap ring.
33 Rear output shaft bearing.
34 Oil seal.
35 Universal joint flange.
36 Bolt.
37 Stud bolt.
38 Bolt.
39 "O" ring.
40 Washer.
41 Flange washer.
42 Autobraking nut.
43 Oil manifold.
44 Rear output shaft.
45 Worm gear speedometer.
46 Worm gear spacer.
47 Worn gear case.
48 "O" ring.
49 Shaft and pinion speedometer.
50 Oil seal.
51 Lock plate.
52 Autobraking nut.
53 Plain washer.
54 Rear flange socket.
55 Nut.
1
3
1
2
4
7
8
9
7
8
6
5
10
6
18
15
17
11
12
16
32
19
14
13
21
22
20
23
24
25
26
27
28
29
30
31
42
55
41
40
36
39
43
35
37
38
32
34
33
46
45
49
48
47
50
44
54
53
52
51
